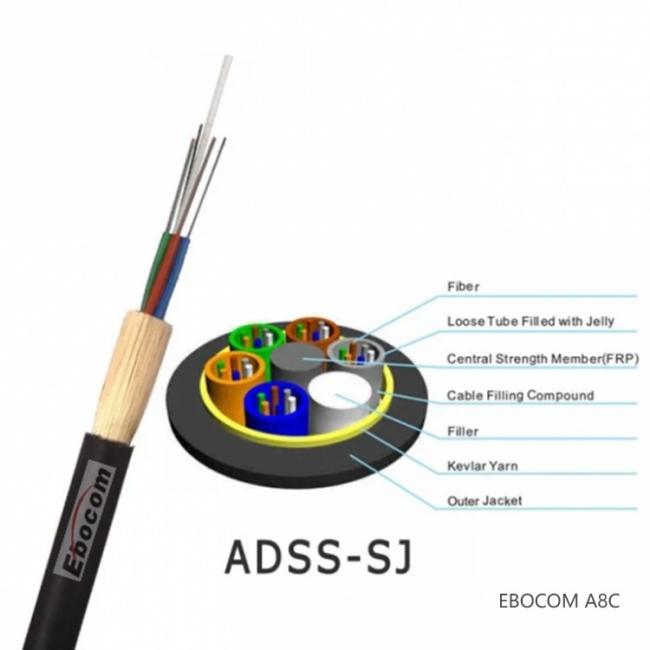

High quality ADSS fiber cable 2-96 Core All Dielectric Mini Multicore G652D span 100 200 300 yarn Aramid yarn strength
Price:
EXW ≥2000m $0.88/M ≥5000m $0.85/M
MOQ:
2000M
Delivery Time:
Negotiable
Brand:
EBOCOM
Product Description
Main applications:
It is mainly used in areas with high electric field strength in power communication transmission systems, or areas with frequent lightning strikes.
Features:
- Low attenuation, low dispersion reasonable design and accurate residual length control make the cable have excellent performance
- Mechanical and environmental performance.
- 3.the non-metallic structure makes the cable have good electromagnetic interference resistance.
- 4.the use of high-strength aramid wire as a reinforcement, to ensure that the cable tensile strength is high, small wire diameter, light weight, to adapt to different climatic conditions and different installation span.
- 5.special AT outer sheath (optional), with good electrical corrosion resistance
Technical Parameter:
| Designation | Diameter (mm) | RTS(N) | MAT(N) | EDS(N) | Kg/km |
| 2~24 core | |||||
| ADSS-AT(PE)xx -4KN | 12.2 | 9698 | 3879 | 2425 | 121 |
| ADSS-AT(PE)xx -6KN | 12.5 | 14108 | 5643 | 3527 | 126 |
| ADSS-AT(PE)xx -9KN | 12.9 | 22928 | 9171 | 5732 | 135 |
| ADSS-AT(PE)xx -12KN | 13.3 | 30645 | 12258 | 7661 | 143 |
| ADSS-AT(PE)xx -15KN | 13.6 | 37260 | 14904 | 9315 | 149 |
| ADSS-AT(PE)xx -18KN | 13.9 | 44978 | 17996 | 11245 | 157 |
| ADSS-AT(PE)xx -21KN | 14.3 | 52695 | 21078 | 13174 | 164 |
| ADSS-AT(PE)xx -24KN | 14.6 | 60413 | 24165 | 15103 | 172 |
| ADSS-AT(PE)xx -26KN | 14.8 | 65925 | 26370 | 16481 | 177 |
| 26~36 core | |||||
| ADSS-AT(PE)xx -4KN | 12.8 | 9698 | 3879 | 2425 | 133 |
| ADSS-AT(PE)xx -6KN | 13.0 | 14108 | 5643 | 3527 | 138 |
| ADSS-AT(PE)xx -9KN | 13.4 | 22928 | 9171 | 5732 | 146 |
| ADSS-AT(PE)xx -12KN | 13.8 | 30645 | 12258 | 7661 | 154 |
| ADSS-AT(PE)xx -15KN | 14.1 | 37260 | 14904 | 9315 | 161 |
| ADSS-AT(PE)xx -18KN | 14.4 | 44978 | 17991 | 11245 | 168 |
| ADSS-AT(PE)xx -21KN | 14.7 | 52695 | 21078 | 13174 | 175 |
| ADSS-AT(PE)xx -24KN | 15.1 | 60413 | 24165 | 15103 | 183 |
| ADSS-AT(PE)xx -26KN | 15.3 | 65925 | 26370 | 16481 | 188 |
