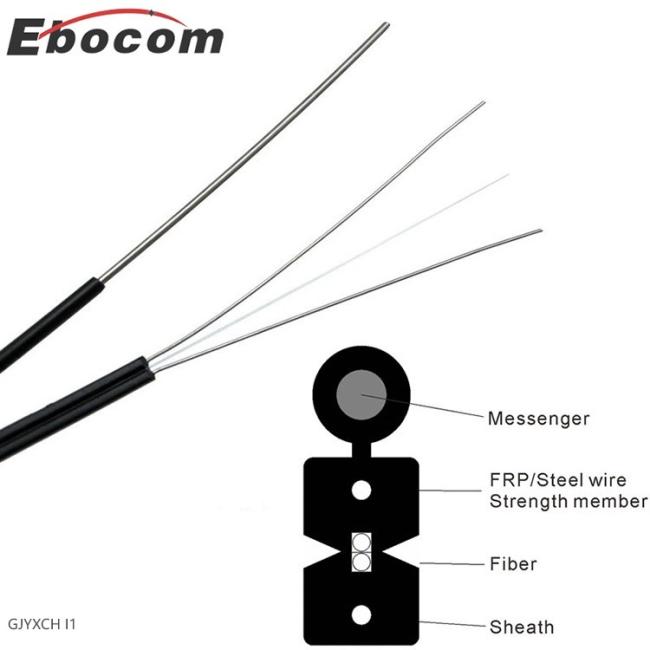

Indoor and Outdoor FTTH Optical Fiber Flat Drop Cable 2.0*3.0mm Cable Diameter
The drop cable is located on the client side and is used to connect the terminal that distributes the cable to the user’s house. They are typically small diameter, low fiber count cables with limited unsupported span length and can be installed overhead, underground or buried. Due to outdoor use, according to industry standards, the minimum pulling force of the lead-in cable should be 1335 Newtons. There are many different types of drop cables, the common models are GJXH,GJYXFCH,GJYXCH, etc.
Drop Cable Features:
Good mechanical and environmental characteristics;
Flame retardant properties in line with relevant standards;
Mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, large capacity data transmission;
To meet the needs of the market and customers.
Drop Cable Application:
Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
Technical parameters:
| Cable type | OD(mm) | Nominal Weight(kg/km) | tensile strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYXFCH-1Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-2Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-3Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-4Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| Storage/Working temperature(ºC) | -20~+70 | |||||||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
