Outdoor GYTA Fiber Optic Cable 80 core steel directly burial internet construction

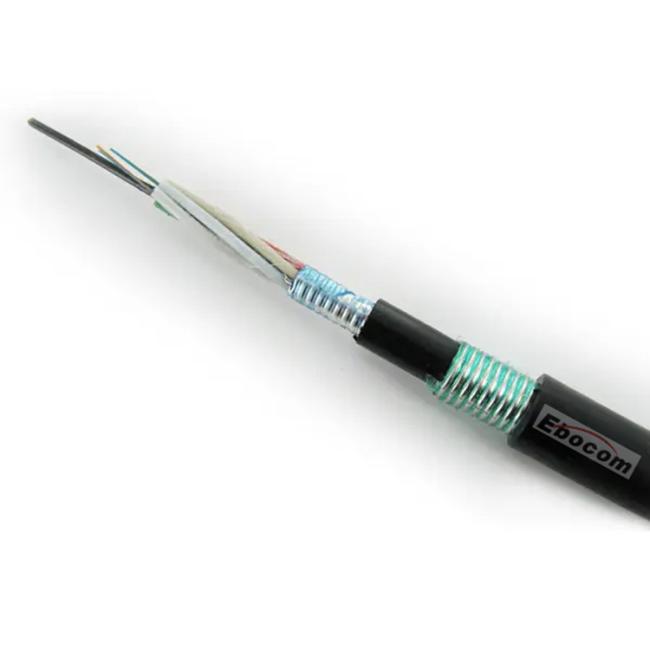

GYTA53 double armor double shield direct buried optical cable is a high performance optical cable specially designed for outdoor direct buried environment. The optical cable adopts double-layer metal armor and sheath structure, which provides excellent protection and resistance to external damage for the optical fiber.
Features and advantages of GYTA53 optical cable:
- Durable and reliable: The metal armor and double-layer sheath structure make the optical cable have excellent durability and reliability, which can resist damage from the external environment and maintain stable transmission performance.
- Strong anti-interference ability: Metal foil shielding provides effective electromagnetic shielding ability, reduces the impact of external interference on optical signals, and ensures stable transmission quality.
- High tensile and compressive capacity: the high-strength strip steel increases the tensile and compressive capacity of the optical cable, which is suitable for places that require long-distance transmission and direct burial installation under complex terrain conditions.
- Water and moisture resistance: The double-layer sheath structure can effectively prevent water and moisture from penetrating, protect the optical fiber from damage, and improve the reliability of the optical cable.
- Direct buried design: suitable for direct buried applications, with good compression resistance and durability, suitable for various terrain and environmental conditions.
Cable performance:
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | Full color spectrum | |
| Filer | Material | PE |
| Color | Black | |
| CSM | Material | Phosphating steel wire |
| Inner armoured | Material | Plastic coated aluminum strip |
| Inner jacket | Material | PE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel tape |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 3000N 0.1dB,0.15% 3000N The addition attention≤0.1dB,fiber strain ≤0.15% |
| Crush | Short term | 3000N/100mm 0.1dB 3000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |
