Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
ADSS (single sheath) is constructed with a 250μm optical fiber sheathed in a loose bushing (PBT) filled with a waterproof compound.
The center of the cable core is a fiber reinforced composite (FRP) non-metallic center reinforcement core.
The core is twisted into a compact and rounded core around the center reinforcement core, the gaps inside the core are filled with water barrier filler, a layer of water barrier tape is extruded outside the core, and aramid yarn is evenly wrapped around the core covered with water barrier tape, and then a polyethylene (PE) sheath is extruded to form the cable.
Main Features:
- Small cable diameter, very light weight, span can be 1500M, and low additional load on the tower;
- High tensile strength, which can exceed 90KN;
- Non-metallic structure, good insulation, lightning protection;
- Construction without power failure, and power line failure does not affect the normal transmission of overhead fiber optic cable;
- Single-mode, multi-mode fiber and integrated fiber optic cable design;
- Full dielectric cable structure for installation and maintenance;
- Wide temperature range, low coefficient of linear expansion, to meet the requirements of harsh environments
Structure & Technical Specifications:
| Fiber parameter(G.652D) | |||
| Item | Unit | G.652D | |
| MFD | μm | 8.6～9.5±7 | |
| Cladding Diameter | μm | 125±1 | |
| Cladding Non-circularity | % | S1 | |
| Diameter of coating layer | μm | 245±10 | |
| Attenuation Coefficient | @1310nm | dB/km | ≤0.36 |
| @1550nm | dB/km | ≤0.22 | |
| Dispersion | 1280~1330nm | ps/nm/km | ≤0.35 |
| 1550nm | ps/nm/km | ≤0.18 | |
| Zero dispersion wavelength | nm | 1300～1322 | |
| Partial positive mode dispersion coefficient | ps/ √km | ≤0.2 | |
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd.

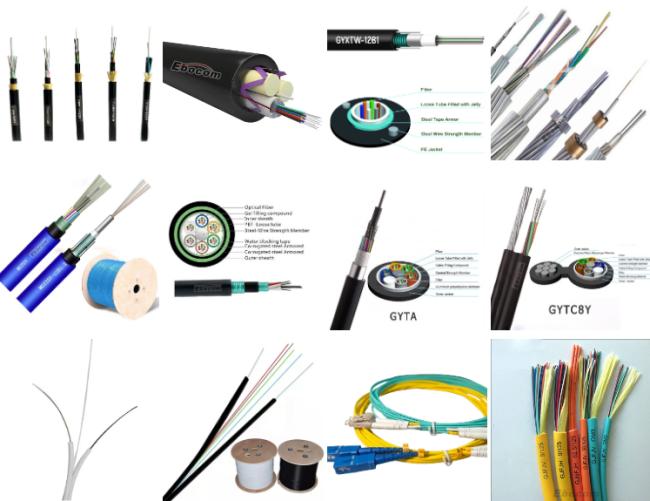

With 12 years experience in the fiber optic communication industry. It is a high-tech enterprise mainly engaged in R & D, production, sales and service in the field of optical fiber communication. The company mainly produces OPGW optical cable, FTTH cable, ADSS optical cable, outdoor optical cable, indoor optical cable, mining flame retardant optical cable, etc.
The company always adheres to the business philosophy of "scientific and technological innovation, integrity-based", and has established a complete product quality control system. With good reputation, high -quality products, excellent service and a number of enterprises to establish a long-term cooperative relationship.
We are factory direct , can provide the high quality optical cable with competitive price. Welcome to be our distributor, contact us for a best price.
