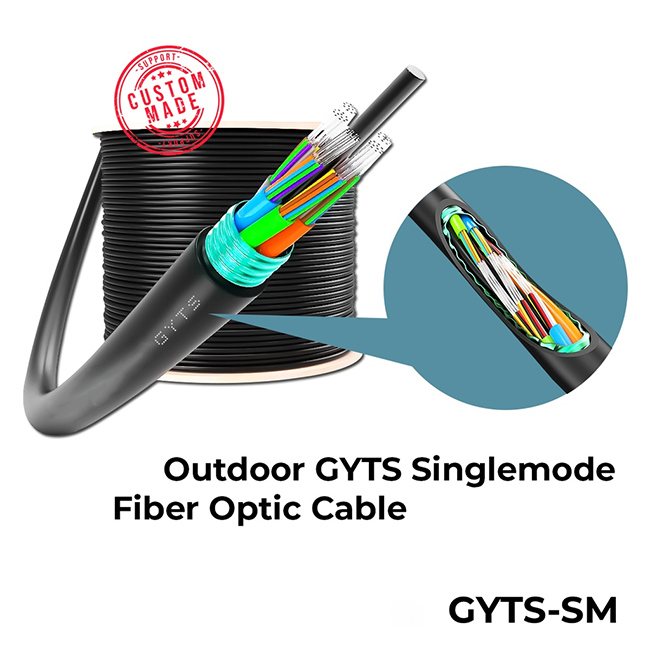

Outdoor Duct Fiber Optic Cable GYTS Light Armored SM G652D MLT Stranded 12 24 48 Core With PE Jacket
Wholesale Outdoor Duct Fiber Optic Cable GYTS Light Armored SM G652D MLT Stranded 12 24 48 Core With PE Jacket
Product Description
The GYTS Light Armored Fiber Optic Cable is a robust and reliable solution specifically designed for outdoor duct installations. This cable features Single Mode G652D fibers with stranded loose tube (MLT) structure, providing excellent transmission over long distances. Available in 12, 24, and 48 core configurations, it’s built for flexibility and easy scalability. The polyethylene (PE) jacket ensures the cable is resistant to environmental stress, while the light armored layer adds durability without excess weight. Ideal for telecom backbone networks, GYTS fiber optic cables are widely used for high-speed data transmission.
Key Features:
- Multilayer Stranded Loose Tube (MLT): Protects fibers from environmental impacts and enhances flexibility.
- Single Mode G652D Fiber: Provides low attenuation, ideal for long-distance applications.
- Light Armor: Steel tape armor offers durability and protection without compromising cable flexibility.
- PE Jacket: UV and water-resistant, suited for outdoor duct installations.
- Available Core Options: Choose from 12, 24, or 48 cores based on your network requirements.
Applications:
- Long-distance telecom networks and backbone infrastructure
- Outdoor duct installations
- Metropolitan area networks (MAN) and local area networks (LAN)
- Industrial and outdoor environments requiring enhanced protection
Technical Specifications:
| Specification | Details |
|---|---|
| Product Name | GYTS Light Armored Fiber Optic Cable |
| Fiber Type | Single Mode G652D |
| Core Count | 12, 24, or 48 Core |

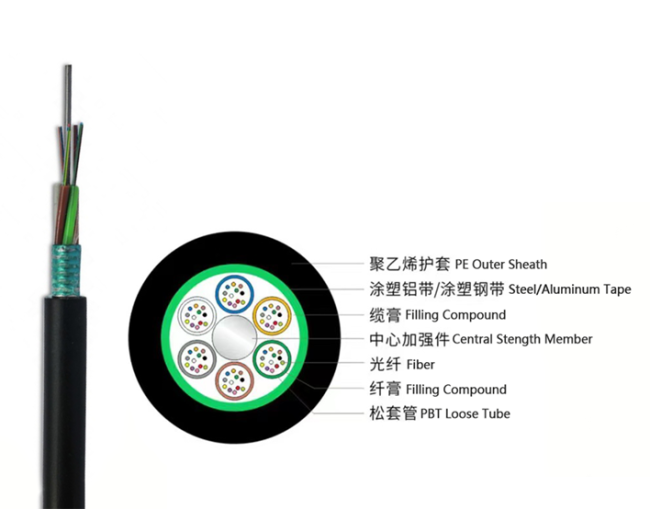

| Cable Structure | Stranded Loose Tube (MLT) |
| Armor Type | Light Steel Tape Armor |
| Outer Sheath Material | Polyethylene (PE) |
| Crush Resistance | 2000 N/100 mm |
| Operating Temperature | -40°C to +70°C |
| Attenuation at 1310nm | ≤ 0.35 dB/km |
| Attenuation at 1550nm | ≤ 0.20 dB/km |
| Installation Method | Suitable for duct and direct burial installations |
| Weight | Varies by core count (approx. 105-130 kg/km) |
Benefits of Choosing GYTS Fiber Optic Cable:
- Reliable Performance: Built for consistent and high-speed transmission across long distances.
- Enhanced Protection: Light armor and PE jacket protect against physical and environmental stress.
- Flexible Configuration: Available in multiple core options to suit various network sizes and requirements.
- Competitive Pricing: Offers high performance and durability at wholesale prices.
- OEM Customization: We support OEM options to meet specific project needs.
Contact Us:
For more information or to request a quote on the GYTS Light Armored Fiber Optic Cable, please get in touch with us today. Our team is ready to provide reliable and cost-effective fiber optic solutions for your telecommunications needs.
