Whosale Outdoor GDTS Armored 4 Core Fiber Optical Power Composite Cable For Low Voltage Transmission System
Product Description
The GDTS Armored Fiber Optical Power Composite Cable is designed for outdoor applications, combining 4 core fiber optic communication with low voltage power transmission functionality. This innovative cable is ideal for areas requiring both data transmission and power supply, such as remote monitoring systems, smart grids, and industrial networks. With its armored construction, the cable offers superior protection against mechanical stress, ensuring durability and reliability even in harsh environments.
Key Features:
- 4 Core Optical Fiber: Provides stable and high-speed communication for data transmission.
- Power Composite Functionality: Integrates low voltage power transmission, reducing the need for separate power lines.
- Armored Protection: Enhances mechanical strength and resists external impacts, suitable for complex and outdoor environments.
- UV-Resistant Outer Sheath: Ensures long-term durability in outdoor installations.
- Versatile Applications: Supports both communication and power supply needs in one efficient cable.
Applications:
- Remote Monitoring Systems: Ideal for CCTV, IoT devices, and industrial sensors.
- Smart Grid and Power Systems: Provides reliable power and communication for grid infrastructure.
- Industrial and Rural Networks: Supports data and power needs for industrial sites or rural connectivity.
- Outdoor Installations: Suitable for direct burial, ducts, or aerial applications.
Technical Specifications:
| Specification | Details |
|---|---|
| Product Name | GDTS Armored Fiber Optical Power Composite Cable |
| Fiber Type | Single Mode or Multimode Fiber |
| Core Count (Fiber) | 4 Core |
| Power Voltage | Low Voltage (≤1kV) |

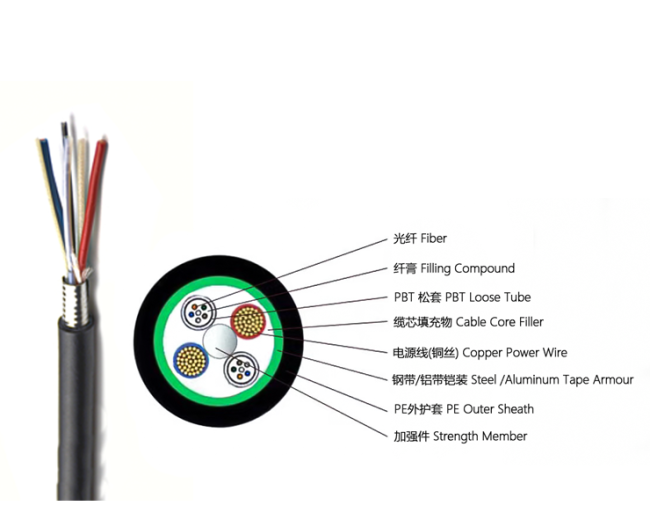

| Cable Structure | Optical Fiber + Power Wire + Armored Layer |
| Tensile Strength | Up to 1500 N |
| Crush Resistance | 3000 N/100 mm |
| Operating Temperature | -40°C to +70°C |
| Sheath Material | UV-resistant Polyethylene (PE) |
| Attenuation at 1310nm | ≤ 0.35 dB/km |
| Attenuation at 1550nm | ≤ 0.20 dB/km |
| Installation Method | Direct burial, duct, or aerial |
Benefits of GDTS Armored Fiber Optical Power Composite Cable:
- Space and Cost Efficiency: Combines data and power transmission in one cable, reducing installation costs and complexity.
- Enhanced Durability: Armored design protects against physical damage and harsh environmental conditions.
- Reliable Performance: Ensures stable data transmission and power supply even over long distances.
- Wide Compatibility: Suitable for a variety of outdoor and industrial applications.
Contact Us:
For more details or to request a quote on our Wholesale Outdoor GDTS Armored 4 Core Fiber Optical Power Composite Cable, feel free to contact us. We are here to provide high-quality, customized solutions to meet your needs.
This product description emphasizes the dual functionality, durability, and versatility of the GDTS optical power composite cable, catering to diverse customer needs.
