Factory Price GYXTC8S Outdoor Self-Supporting Figure 8 Fiber Optic Cable 2-12 Core Steel Tape Armored
Price:
USD 0.05~0.1, Meter
MOQ:
2000M
Delivery Time:
10-15 days
Brand:
Ebocom
Product Description
Product Overview

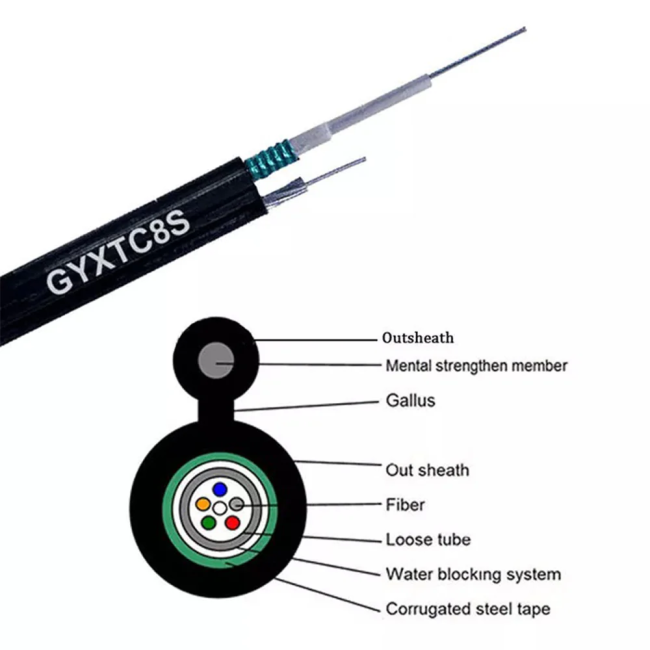

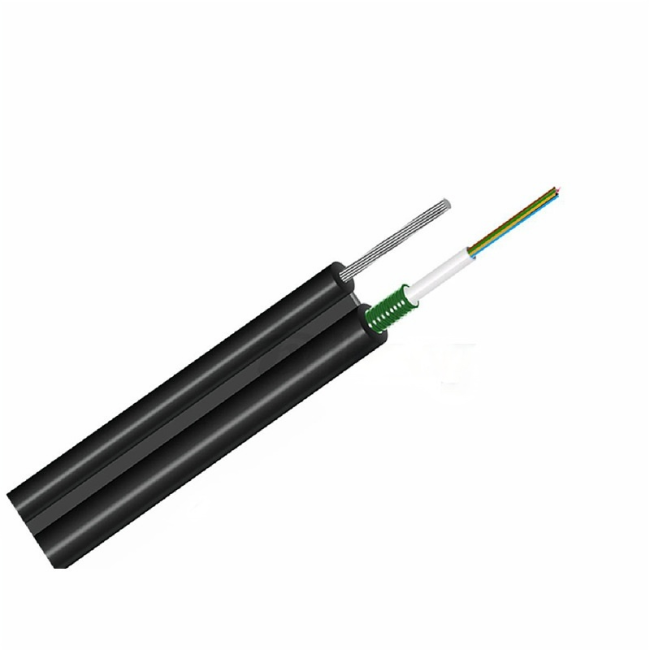

Outdoor Figure 8 Cable (GYXTC8S/GYXTC8A) is a self-supporting central loose tube fiber optic cable designed for outdoor aerial applications. The cable features a unique figure-8 structure, which integrates a steel or aluminum messenger wire for easy installation without the need for additional suspension wires. It provides reliable performance in harsh outdoor environments, with excellent tensile strength, water resistance, and UV protection.
Applications
- Long-distance communication and FTTx networks
- Outdoor aerial installations
- Backbone networks and access networks
- Rural communication and power line transmission
Key Features
- High Tensile Strength – Integrated steel/aluminum messenger wire for enhanced self-supporting performance.
- Excellent Environmental Protection – Water-blocking materials, UV-resistant outer sheath, and armored structure ensure durability in harsh environments.
- Multi-core Options – Supports 2 to 12 fiber cores, suitable for various network requirements.
- Loose Tube Design – Central loose tube filled with gel for protection against water ingress and mechanical stress.
- Color-coded Fibers – Simplifies identification and splicing during installation.
Technical Specifications
| Item | Description |
|---|---|
| Fiber Count | 2~12 cores |
| Fiber Type | Single Mode (G652D/G657A1/A2) – Yellow Sheath Multi Mode (OM1/OM2/OM3/OM4) – Orange, Aqua Blue, or Violet Sheath |
| Armoring Type | GYXTC8S: Steel Tape Armored GYXTC8A: Aluminum Tape Armored |
| Messenger Wire | Stranded Steel Wire |
| Outer Sheath Material | Black UV-resistant HDPE |
| Outer Diameter | 8.0 ± 0.2 mm |
| Operating Temperature | -40°C to +70°C |
| Installation Method | Aerial (Self-supporting) |
| Strength Member | Central Steel Wire |
| Water-blocking | Water-blocking yarn and gel-filled loose tube |
Ordering Information
- Available in different fiber counts and types according to customer requirements.
- OEM customization for outer sheath color and marking.
- Standard reel length: 2 km/reel (custom lengths available on request).
