GYXTW 12 Core OM3 Multimode Outdoor Fiber Optic Cable for High-Speed Networks
Product Overview
The GYXTW 12 Core OM3 Multimode Fiber Optic Cable is designed for high-performance data transmission in outdoor network installations. Built with a central loose tube filled with water-blocking gel, it ensures excellent fiber protection and long-term stability.
This model uses OM3 50/125μm multimode fibers, providing reliable 10G and 40G Ethernet connectivity for medium- to long-distance communication. Two parallel steel wires and a corrugated steel tape armor provide superior tensile strength and crush resistance, making it suitable for harsh environments such as ducts, tunnels, and outdoor communication lines.
Main Features
-
High Bandwidth Performance: OM3 fibers support 10G Ethernet up to 300 meters and are backward compatible with legacy systems.
-
Enhanced Durability: Corrugated steel tape armor and double steel strength members protect against mechanical stress and rodent damage.
-
Waterproof Construction: Central loose tube design with water-blocking compound ensures stable optical performance in wet conditions.
-
UV-Resistant Outer Jacket: Black polyethylene sheath provides excellent protection against sunlight and extreme weather.
-
Flexible Customization: Available in different fiber counts, jacket materials, and print markings according to customer needs.
Applications
-
Outdoor LAN, MAN, and backbone cabling
-
Data center and telecommunication networks
-
Industrial control and CCTV monitoring systems
-
FTTH and FTTx optical access networks
-
Long-distance communication lines and distribution networks
Technical Specifications
| Parameter | Details |
|---|---|
| Cable Model | GYXTW 12 Core OM3 Multimode Fiber Optic Cable |
| Fiber Type | OM3 50/125μm Multimode |
| Core Count | 12 Fibers |
| Structure Type | Central loose tube with water-blocking compound |
| Strength Member | Two parallel phosphatized steel wires |
| Armor Type | Corrugated steel tape armor |
| Outer Jacket Material | Black UV-resistant PE |
| Outer Diameter | Approx. 8.0 ± 0.3 mm |
| Tensile Strength | ≥ 1500N |
| Operating Temperature | -40°C to +70°C |
| Installation Method | Duct, direct burial, or aerial installation |
| Standard Delivery Length | 2000m / 4000m per wooden drum (customizable) |
Our Advantages
With over a decade of experience in fiber optic cable manufacturing, Ebocom delivers reliable and high-quality products for global communication networks.
We produce a full range of cables, including GYXTW, ADSS, OPGW, GYTA53, and FTTH drop cables, all tested in our own Product Performance & Materials Testing Center.

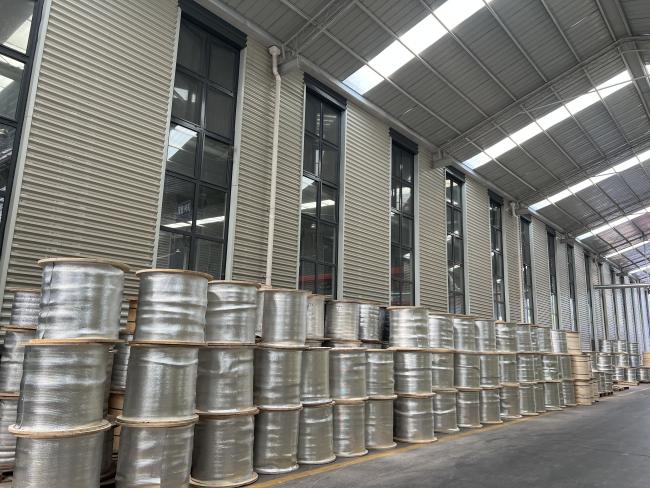

Our factory ensures fast production, OEM/ODM customization, and strict quality control, making us a trusted partner for telecom operators, distributors, and engineering companies worldwide.
