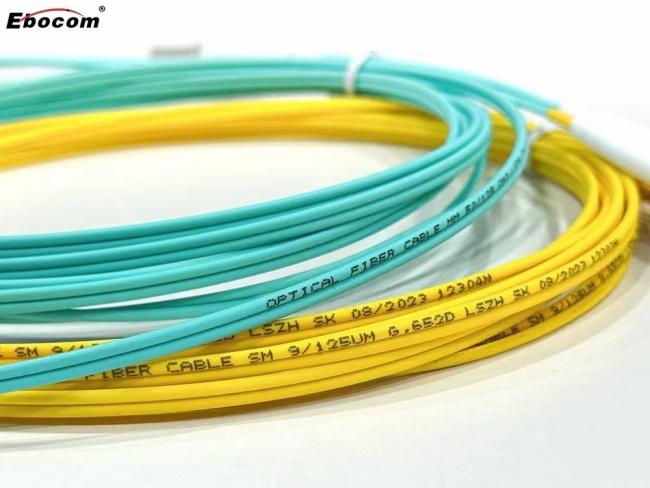

This High-Performance Fiber Optic Patch Cord Series is engineered specifically for high-density, low-latency environments within modern data centers, enterprise server rooms, and cloud computing architectures. To meet diverse networking demands, this premium jumper series is available in two distinct high-performance variations: ultra-bend-insensitive G.657A1 Single Mode for long-reach/core routing, and high-bandwidth OM3 Multimode for 10G/40G/100G short-range Ethernet distribution. All cables are jacketed with a flame-retardant LSZH (Low Smoke Zero Halogen) compound to satisfy strict data center fire safety regulations.

• Data Center Structured Cabling: Perfect for high-density patching between main distribution areas and equipment distribution areas (EDA).

• High-Speed Ethernet Networks: Supports data rates from 10 Gbps up to 100 Gbps, serving as the backbone connecting switches, routers, and storage area networks (SANs).

• Inter-Rack and Intra-Rack Cross Connects: Ideal for tight-space patch panel wiring inside server cabinets where space is limited and cable bends are frequent.

• Telecommunication and FTTX Central Offices: Reliable optical linking for high-performance optical line terminals (OLT) and network switches.

• Dual-Option High-Grade Media: * G.657A1 (Single Mode): Offers exceptional bend-insensitivity with a minimal bending radius, preventing macro-bending signal loss in crowded patch trays.

  • OM3 (Multimode): Laser-optimized 50/125 micron fiber designed for high-speed VCSEL laser transmission, supporting 10G up to 300 meters and 40G/100G up to 100 meters.

• Data-Center Grade Insertion and Return Loss: Built with precision zirconia ceramic ferrules, delivering ultra-low insertion loss (typical less than 0.2 dB) and high return loss to maximize signal integrity and minimize bit error rates (BER).

• Flame-Retardant LSZH Jacket: The Low Smoke Zero Halogen jacket compound ensures that in the event of a fire, the cable emits minimal smoke and no toxic halogen gases, protecting critical data hardware and personnel.

• 100% Geometry and Optical End-Face Inspected: Every patch cord undergoes rigorous 3D interferometer testing and optical end-face cleaning inspection to eliminate scratches, pits, or contamination before shipping.

• Versatile Configurations: Available with industry-standard connectors (LC, SC, FC, ST) in Simplex or Duplex setups, with UPC or APC polishing options tailored to your specific hardware.
