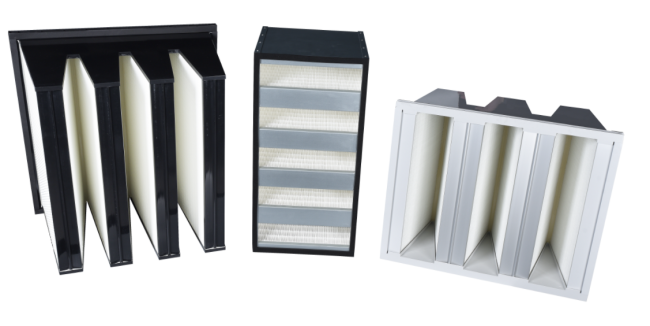

High temperature-resistance high efficiency box air filter/ hepa filter
Price:
$55.00 - $65.00/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Yitong, Yitong
Product Description
Product feature
100% factory inspection Special sealant to ensure good sealing Large air flow Big media area large air flow and high efficiency
Special V-Shape construction, can minimize the structure resistance Can be with flange, easy installation and maintenance.
Special V-Shape construction, can minimize the structure resistance Can be with flange, easy installation and maintenance.
OEM
Customized design is available
Application
Places with high requirement of cleanliness, such as aviation, electronic, semiconductor, chip, biological pharmaceutical,
hospital, food processing factory, etc.
hospital, food processing factory, etc.
Product Display
Nominal size | Actual size | Partition | Flange | Rated air volume |
(inch) | (mm) | (V) | (non/single) | (m3/h) |
W×H×D | W×H×D | |||
12×24×12 | 287×592×292 | 2V | Single flange | 1200 |
24×12×12 | 592×287×292 | 4V | Single flange | 1200 |
24×20×12 | 592×492×292 | 4V | Single flange | 2200 |
24×24×12 | 592×592×292 | 4V | Single flange | 2700 |
12×24×12 | 305×610×292 | 2V | Non-flange | 1400 |
24×24×12 | 610×610×292 | 4V | Non-flange | 3000 |
Nominal size | Surface air speed | Rated initial resistance | Recommended final resistance | ||||||
(inch) | (m/s) | (Pa) | (Pa) | ||||||
W×H×D | F6 | F7 | F8 | F9 | Double initial resistance | ||||
12×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance | |||
24×12×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance | |||
24×20×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance | |||
24×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance | |||
12×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance | |||
24×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance | |||
