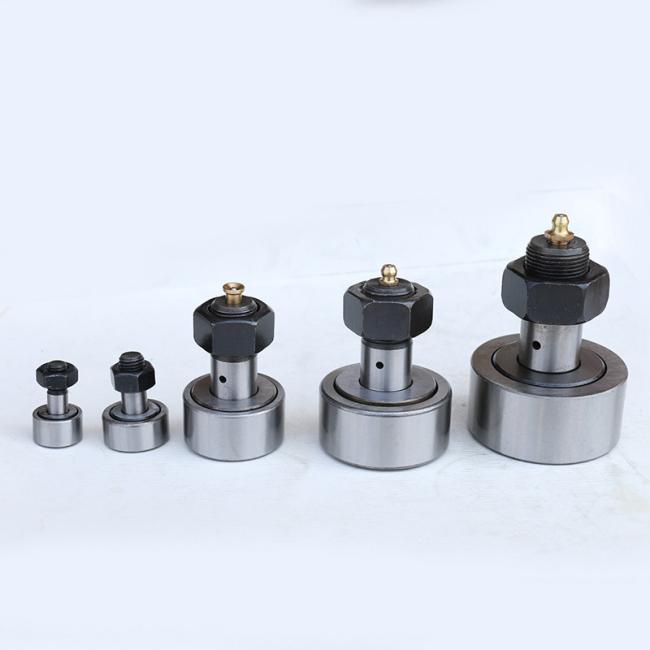

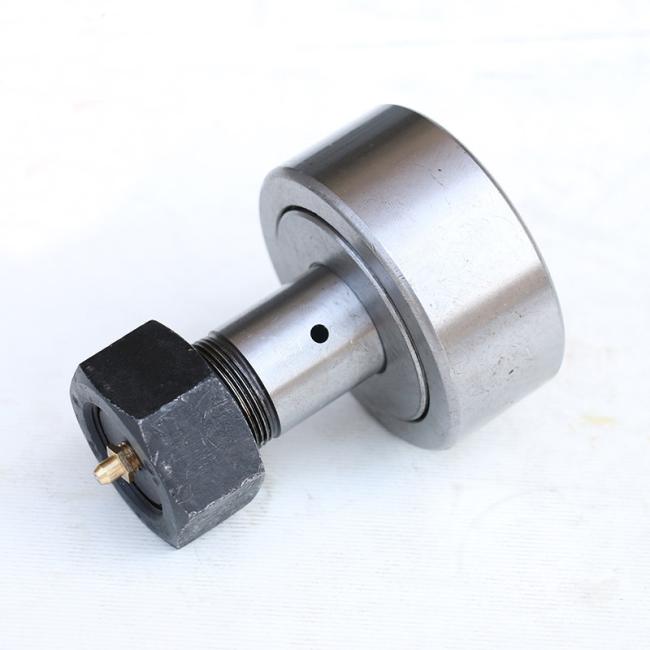

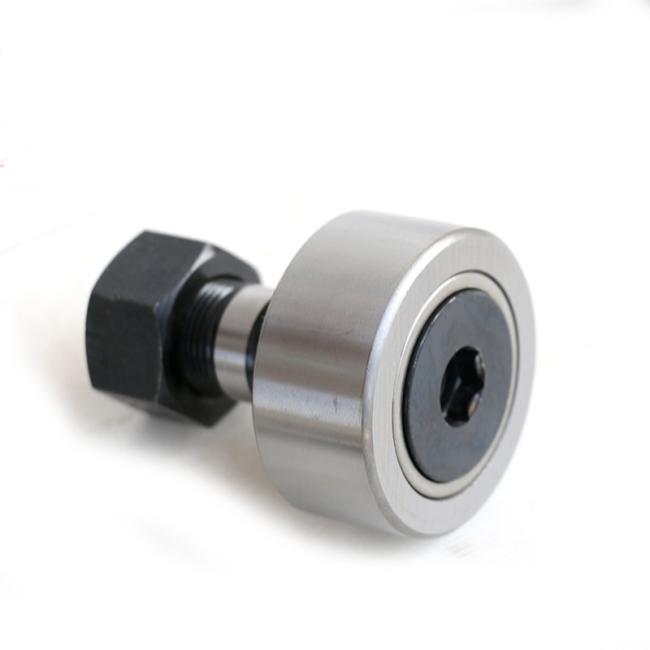

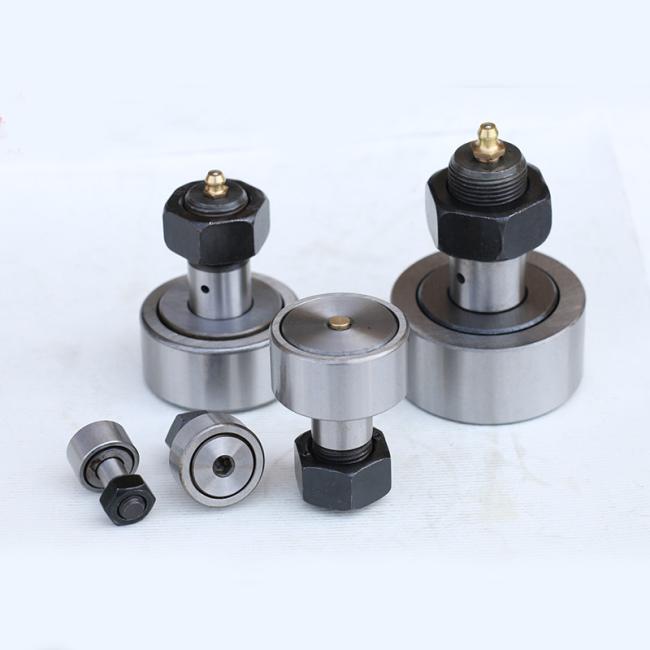

CF20 track roller bearing with stud cam follower

Price Negotiable
Price: $5.00/sets >=10 sets
MOQ: 10 sets
Delivery Time: Negotiable
Brand: LYHGB or OEM
Product Description
Product Description
Stud type track rollers are generally full-loaded rollers. The bolt shaft raceway is quenched. In order to avoid stress concentration, the outer surface of the thick-walled outer ring of the roller is curved. The outer ring has two integral ribs, and the axial direction is guided by rollers. The bolt shaft head and press-fitted side retaining ring provide axial support for the outer ring through rollers. Curved roller bearings are suitable for heavier radial loads. Because the outer ring is axially guided by rollers, the bearing can also withstand heavier axial loads, allowing relatively high-speed operation. However, because it is a full-load roller, it is necessary to replenish grease frequently. Lubricant can be filled through the two ends of the mandrel and the holes on the mandrel body.

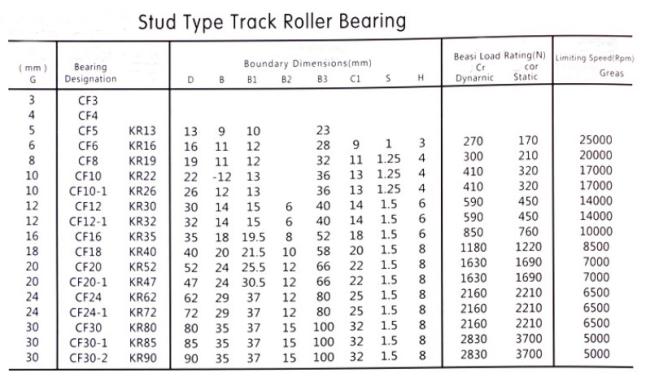

Specification
About Us

We are located in the beautiful Peony Flower City, known as the "Bearing Town" of China's thirteenth ancient capital - Luoyang. Is a professional design, research and development, production, sales and service in one of the slewing bearing integrated entity enterprise. Relying on the unique advantages of Luoyang old brand bearing processing base, the company has gathered a group of experienced bearing designers and skilled first-line production workers, together with advanced production and processing equipment and testing tools, to ensure the quality of products and related services from the root..


More Products

angular contact thrust ball bearing

bearing block

tapered roller bearing

cylindrical roller bearing

plastic linear beaing

plastic bearing
