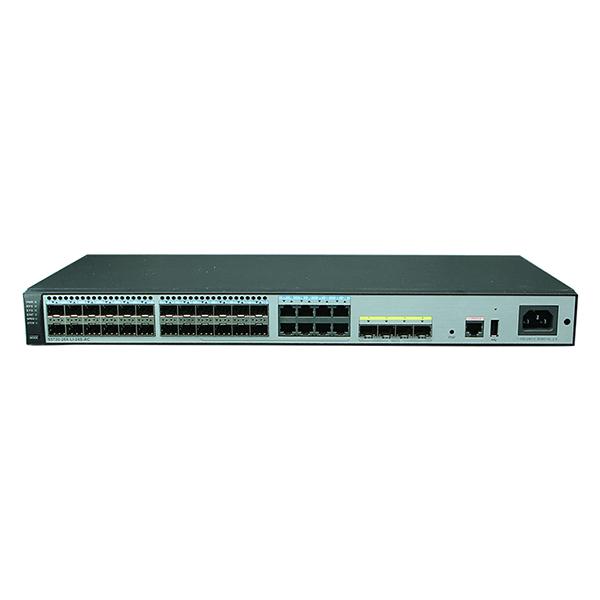

S5720-28X-LI-24S-AC 10G Network Switch 24 Ports 1000Mbps Fast Data Transfer
Price:
$500.00/sets >=2 sets
MOQ:
2 sets
Delivery Time:
Negotiable
Brand:
OEM
Product Description
Experience Lightning-Fast Data Transfer with S5720-28X-LI-24S-AC 10G Network Switch
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Products Description
S5720-LI Series
The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.
|
Model
|
S5720-28X-LI-AC(DC)
S5720-28X-PWR-LI-AC S5720-28X-LI-24S-AC(DC) S5720-28X-PWR-LI-ACF |
S5720-52P-LI-AC
S5720-52P-PWR-LI-AC |
S5720-52X-LI-AC(DC)
S5720-52X-PWR-LI-AC S5720-52X-LI-48S-AC S5720-52X-PWR-LI-ACF |
||
|
Switching Capacity
|
336 Gbit/s
|
336 Gbit/s
|
336 Gbit/s
|
||
|
Forwarding Performance
|
108 Mpps
|
87 Mpps/144 Mpps
Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. |
144 Mpps
|
||
|
Fixed Ports
|
S5720-28X-LI-24S-AC(DC): 24 x Gig SFP ports, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP ports, 4 x 10 Gig SFP+ ports
Others: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports |
48 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports
|
S5720-52X-LI-48S-AC: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+
Others: 48 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports |
||
|
MAC Address Table
|
16K MAC address entries
MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
|
|
||
|
VLAN
|
4,094 VLANs
Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLANBasic QinQ and selective QinQ |
|
|
||
|
IP Routing
|
Static routing, RIP, RIPng, OSPF, and OSPFv3
|
|
|
||
|
Interoperability
|
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) VCMP (similar to VTP) |
|
|
||
