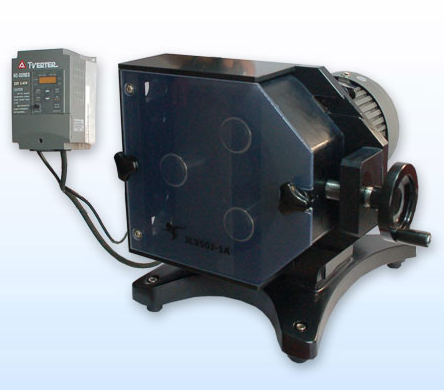

Industrial big flow sea water peristaltic pump

JL350-1A

Industrial Peristaltic Pump

is ideal for high flow rates fluids transfer, driven by the AC motor and the frequency converter control the speed.The pump delivers flow rates is less than 35 L/min. Through the transparent front cover, the running status of the pump head is visible. The speed, running direction and run/stop of the pump are controlled manually by membrane Keypad or automatically by external control interface. Its operation is simple and reliable.

Technical parameters
     -Speed: 30 to 350 rpm, reversible

     - Max flow rate:35liter/min
      -Speed precision: 0.6 rpm
      -Speed control: rotary encoder switch, acceptable external control and communication control
      -Display:  LED display
      -Speed control signal input: 0-5V,0-10V,4-20mA
      -Start and stop control signal input: switching control
      -Direction control signal input: switching control
      -Communication interface: RS485 and RS232

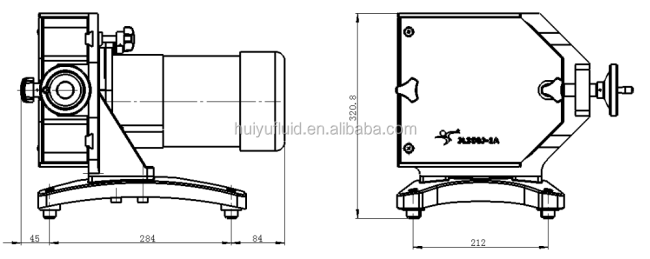

      -Dimensions (L × W × H): 417×401×321 (mm)
      -Power supply: AC 220V±20%
      -Power consumption: < 400 W
      -Operating condition: Temperature 0 to 40°C,
      -Relative humidity < 80%
      -IP rating: IP55
      -Pump weight: 32 kg
Functions and features

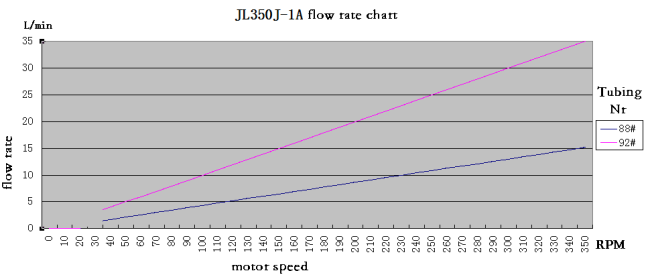

Drive	Pump head	Available tubing	flow rate range (ml/min)	weight(kg)
JL350J-1A	KZ48/63	88#	1.3-15	32
		92#	3-35
