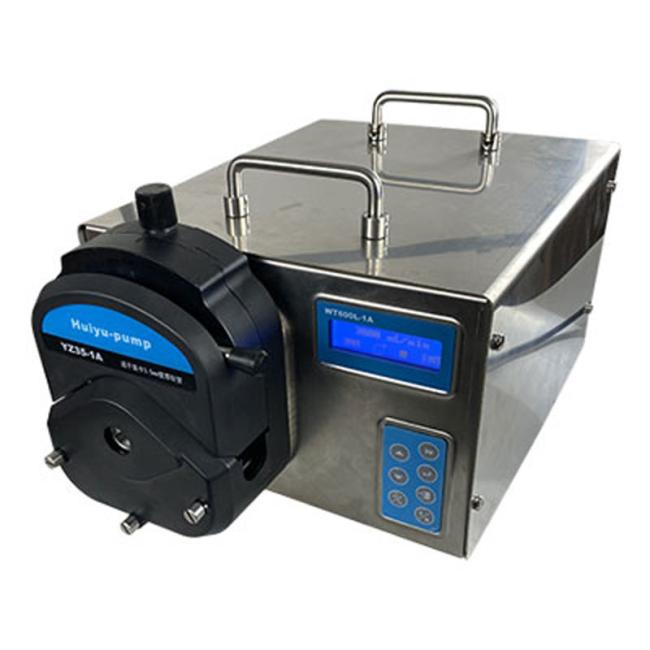

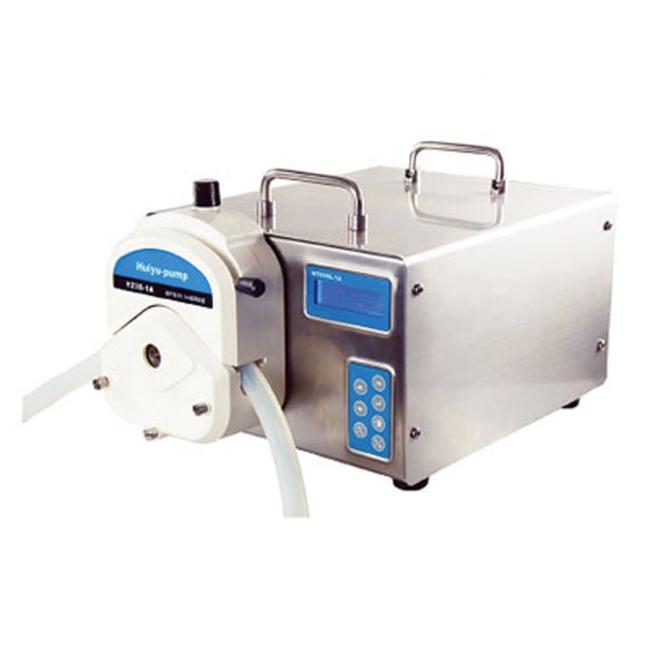

stainless steel housing industrial large flow rate peristaltic pump

stainless steel housing industrial large flow rate peristaltic pumpml/min

Max flow rate:12000ml/min

Product description

It is an industrial large-flow peristaltic pump. The body is made of stainless steel, driven by a DC motor, and is more powerful. It is mostly used in harsh industrial occasions. It has the characteristics of positive and negative, start-stop control, convenient speed adjustment, etc.; working speed 10-600 rpm; cascadable double pump heads, suitable for continuous and stable transmission of large flow in industrial sites

Features

Automatic correction function

Membrane buttons can control start and stop, direction and speed

Can quickly fill and empty function

It can communicate with the host computer

External control signal can control start and stop, direction and speed

Power-down memory function

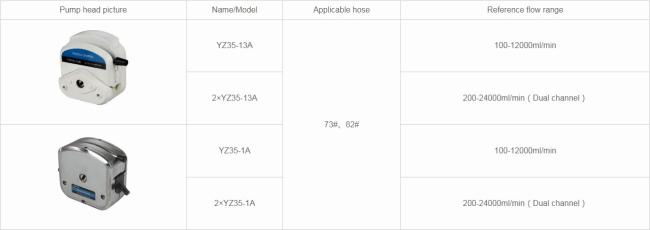

Different pump heads can be replaced

Technical indicators

Speed range: 10-600rpm, resolution lrpm; direction reversible

Adjustment method: membrane button adjustment

Display interface: flow mode, speed mode

Display mode: graphic dot matrix liquid crystal display

Communication method: RS485 half duplex

External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)

Applicable power supply: 176-264V AC, 50/60Hz

Maximum power: 320W

Working environment: ambient temperature 0-40 ° C, relative humidity <100%

Dimensions: 352*291.4*195.5 (length × width × height) mm

Weight: 10kg

Protection level: IP31

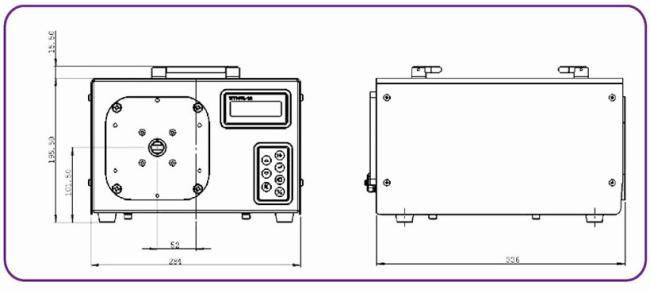

 Dimensions
