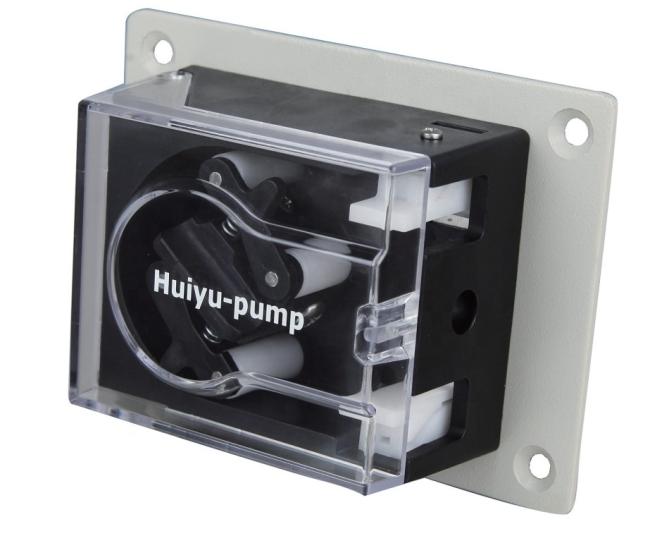

detergent dosing peristaltic pump

detergent dosing pump

Introduction
It has AC motor drive, safety capacitor start, pump head with spring; simple structure, self-adaption the tubing; supply fixed speed and stable flow rate

Technical paremeter
     Power: 220V AC/55mA,50/60Hz or 110V AC/110mA,50/60Hz
     Fixed speed control: 15 kind of speeds are available for internal control, 2.5,3.8,5,7.5,10,12,15,20,25,30,40,50,60,80,110rpm
     Speed error: ±10%
     Operating direction: CW
     Start capacitor: safety capacitor
     Power: 14W
     Maximum noise: 45dB
     Life: 1500 hours
     Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
     Installation: panels installation
     Max flow rate: 183ml/min
     Max pressure: 0.18MPa
