China accurate micro volume laboratory syringe pump
touch screen laboratory syringe pump
Technical parameter
Precision: ≤5‰
Stroke length: 6000 steps (78mm)
Control precision: 1 step (0.01mm)
Speed: 0.05-50mm/s
Compatible Syringe: 10ul 25ul 50ul,100ul,250ul,500ul,1ml,5ml,10ml
Turn time: ≤100ms
Max pressure: 0.1MPa
Output signal: 2 OC gate
Communication interface: RS485
The rate of communication: 9600/38400bps options
Dimensions : 280mm×210mm×140mm
Power: AC90V-260V /1.5A
Operating condition: Temperature 0 to 40℃(the temperature effect syringe much)
Relative humidity :80%
Weight: 3.6KG
Optional accessories
Syringe
Power adapter
Technical parameters
| Syringe pump | Power supply | Working temperature | Max current | Relative humidity | Dimension(mm) | Weight | |
| LST01-1A | AC90-260V | 0-40℃ | ≤1.5A | 80% | 280×210×140 | 3.6kg | |
Industrial syringe pump
Click the photo for technical details

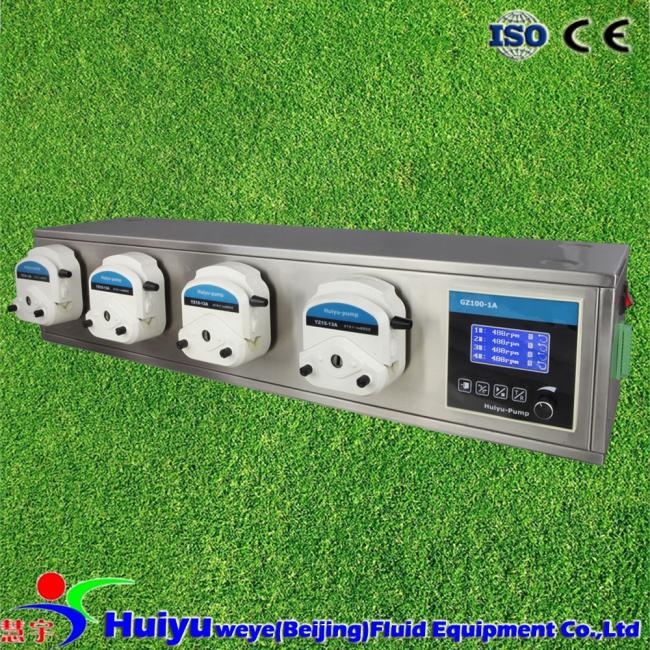

Dispensing peristaltic pump
