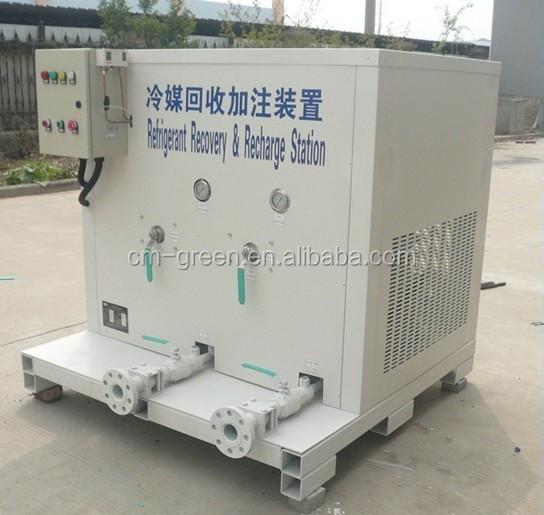

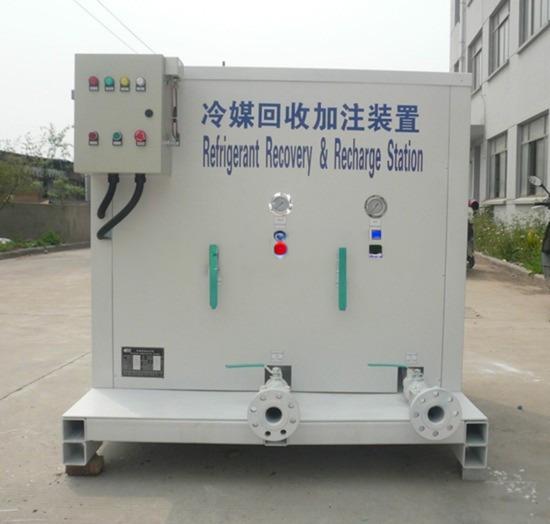

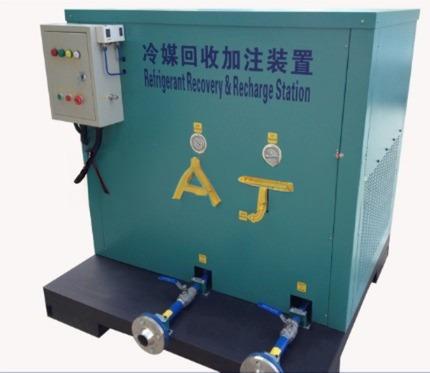

Vapor Recovery Unit For ISO Tank Refrigerant Gas Station Refrigerant Filling Plant

Vapor recovery unit for ISO tank WFL36 series refrigerant gas station

Performance has become a forefront of the industry and meet ARI-700 standards;
Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;
24-hour continuous working;
No need for special maintenance when recovery different refrigerants, just evacuation. No cross contamination;
High performance/price ratio - rapid investment return Maintenance is simple.

Service chillers & other large & medium cooling systems below 10000 cooling ton;
Large & medium central A/C factories;
On site maintenance of lage & medium HVAC/R products


gas recovery unit WFL36 features:

Oil-free lubricating compressor – compatible with CFC/HCFC/HFC refrigerants
Fast recovery recharging rate for both liquid and vapor refrigerants
Multi-function valve design- simple operation in vapor and push/pull recovery
Perfect protection system – safe credibility;
Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa
Easy to operate and convenient to move;
Perfect protection system- safe credibility;
Water/cooled design - Effective heat dissipation
For 10000kg cooling system, finish all the refrigerant recovery within few hours;

Model: WFL36 Refrigerant Recovery Unit

Compressor: 15HP, oil free
Vapor Recovery Rate: ≤13.2lbs/min(360kg/h)
Push/Pull Recovery Rate: ≤660lbs/min(18000kg/h)
Working & Environmental Temp.: -10°C-60°C
Cooling Type: air cooled( water cooled is optional)
Recovery Mode: Vapor & Push/Pull Liquid Recovery
Hose:2"


gas recovery unit WFL36 Voltage(optional):


Included with Purchase(standard)

WFL36 Refrigerant Recovery Unit

Recovery system 1set;
Operating manual 1pc
Certification of quality 1pc

Optional accessories
WFL36 Refrigerant Recovery Unit :

1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
2"  flang hose(length is customizable)
2"  filter
2"  adapter is customizable
Cylinder (20L-1000L) customizable
Float switch for cylinder
( length of power cord is customizable)
