Intelligent Digital Display Wireless Temperature and Humidity Data Logger with Alarm
Price:
$35.00/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
None
Product Description
Product Description
Product Introduction

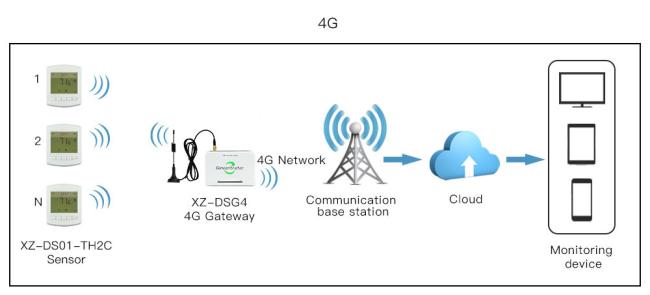

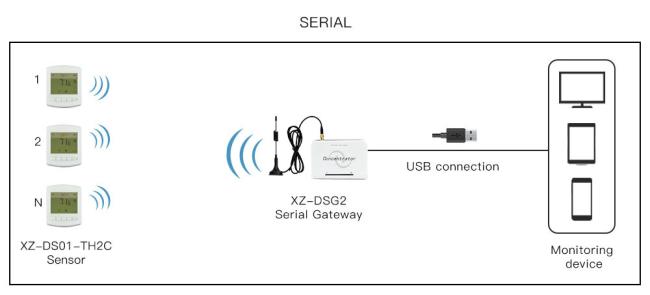

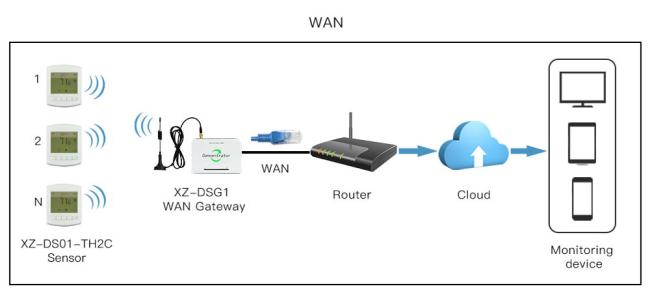

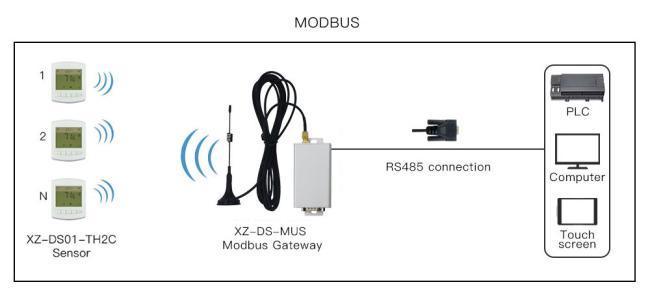

TH2C lora wireless temperature humidity sensor is a wireless temperature humidity measuring instrument with LCD diplay,and it can be made with probe.It consists of temperature and humidity sensor, signal processing circuit, lora communication module and battery.Working with our wireless gateway can realize remote temperature and humidity data acquisition. We provide free software and cloud server for remote data monitoring.Wireless gateway sends data to a third party data acquisition equipment by using USB serial/Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors.
Product Features
♦ Big LCD display
♦Wireless transmission free wiring
♦With buzzer for sound alarm
♦ Low power consumption
♦ Built-in Li-SOCI2 battery with long battery life
♦ Low power consumption
♦ Built-in Li-SOCI2 battery with long battery life
♦Long distance lora wireless transmission
♦Probe version available
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
Product Parameters
General Parameters | ||
Transmitting Power:<1 7dBm | Receiving Current:< 20mA | |
Sensitivity:< -136dBm | Average power consumption:< 15uA | |
Transmitting Current :<1 20mA | Battery Life:1.5years@2000mAH | |
Transmission Distance: >5KM(L OS) | Power supply:3pc AA Li- -SOCI2 battery (replaceable but not included) | |
Operating Temperature:-40°C~80°C | Working Frequency:476.505 & 488.505MHz (frequency can be customized) | |
Sensor Parameters | ||
Temperature Accuracy:<±0.3℃（0℃～65℃）& < ±1℃（<40℃,>65℃） | Humidity Accuracy:< ±3% (10% -90%) & < ±4.5% (<10%, >90%) | |
Transmission Interval:5mins default, 1 ~ 240mins settable by user | ||
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.
Package includes
1pc XZ-DS01-TH2C lora wireless temperature and humidity sensor without battery
(Attention: our wireless sensors can only work with our gateway)
Gateway Choice
Our lora sensors can only work with our lora gateway,please click following pictures to learn more information about our lora gateway.
Applications
Company Profile
OUR ADVANTAGES
Packing
FAQ
Q1. Is Thingsend manufacturer or a trading company? A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service . Q2. Can I customize the product? A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported. Q3. What's the delivery time? A:For prototype, it will be sent within 5 working days after you have paid. For bulk orders, it depends on your order quantity. Q4: What is the payment terms? A: PayPal, Western Union and T/T are preferred.
