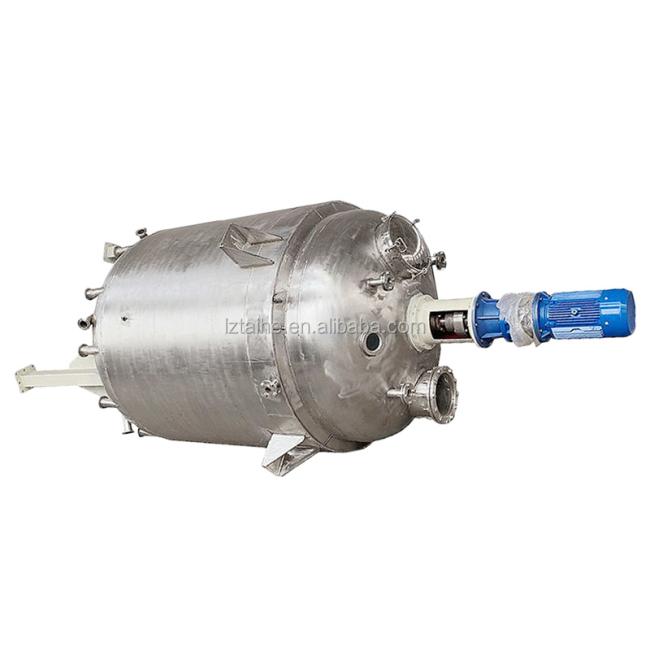

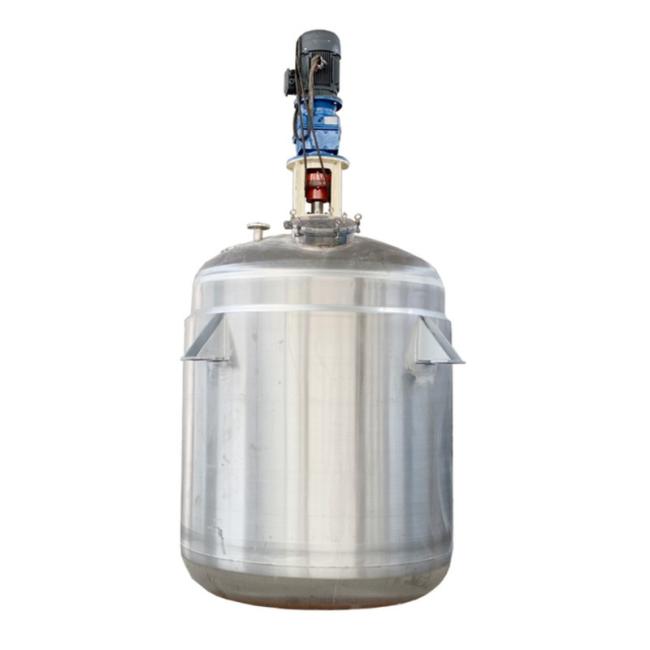

Automatic Grade Automatic 10000L Stainless Steel Industrial Batch Reactor
Price:
$2,650.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SANWEI
Product Description
10000 litre stainless steel reactor industrial batch reactor price chemical batch reactor
1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, double layer (jacketed type), external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
Model | 50L | 100L | 300L | 500L | 1000L | 2000L | 3000L | 4000L | 5000L | ||||||||
Mixing Motor Power | 0.75KW | 1.1KW | 2.2KW | 2.2KW | 4KW | 5.5KW | 7.5KW | 11-15KW | 15-18.5KW | ||||||||
Heating Motor Power | 8KW | 12KW | 24KW | 36KW | 48KW | 60KW | 75KW | 75KW | 90KW | ||||||||
Inner Plate Thickness | 5mm | 5mm | 5mm | 5mm | 6mm | 6mm | 8mm | 8mm | 8mm | ||||||||
Jacket Plate Thickness | 5mm | 5mm | 5mm | 5mm | 6mm | 6mm | 8mm | 8mm | 8mm | ||||||||
Material | SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement. | ||||||||||||||||
Heating Type | electric heating, steam heating, oil circulation heating etc. | ||||||||||||||||
Agitator | anchor, paddle, frame etc. | ||||||||||||||||
Sealing Method | packing seal or mechanical seal (vacuum) | ||||||||||||||||
Model | We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.) | ||||||||||||||||
Remarks | We support OEM | ||||||||||||||||
More Type

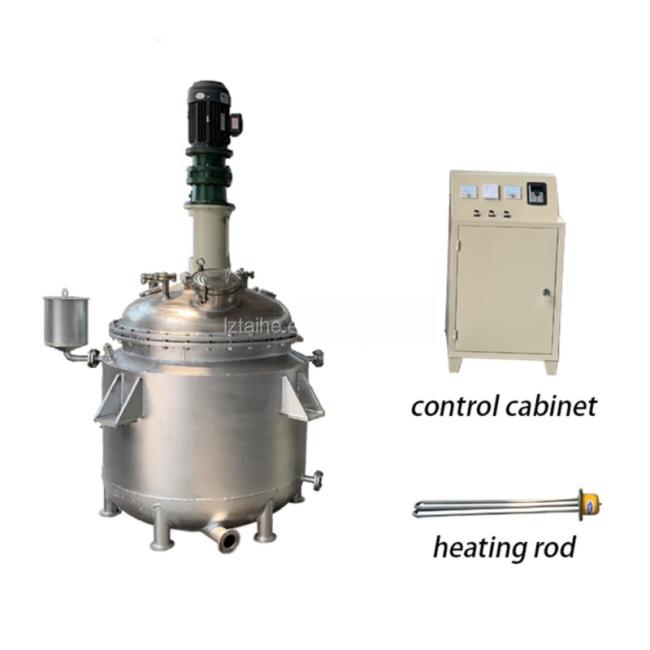

Electric Heating Reactor
Steam Heating Reactor

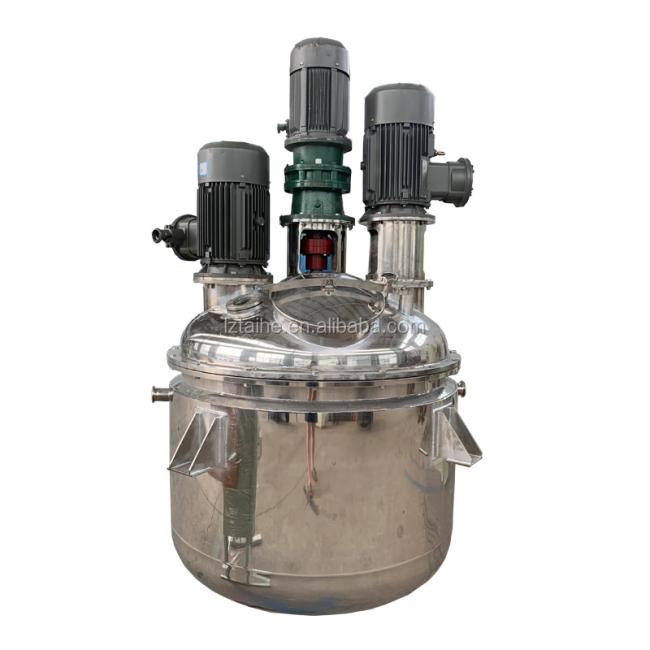

Multifunctional Reactor

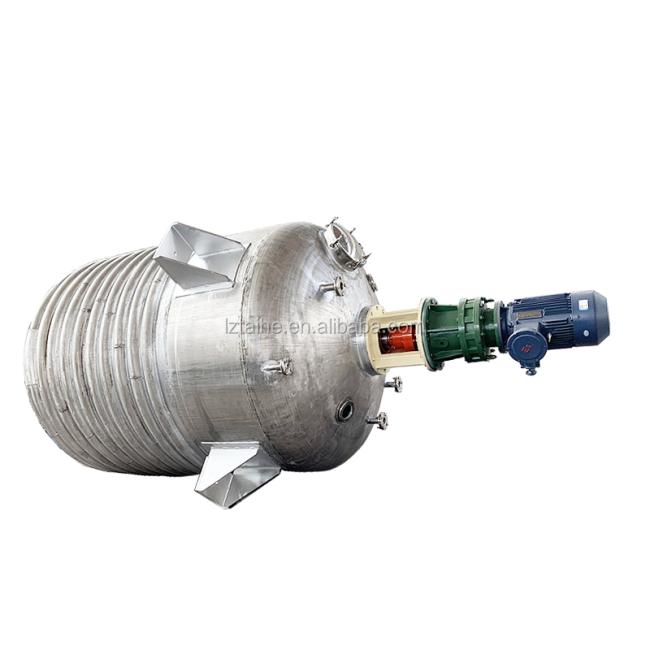

External Coil Reactor

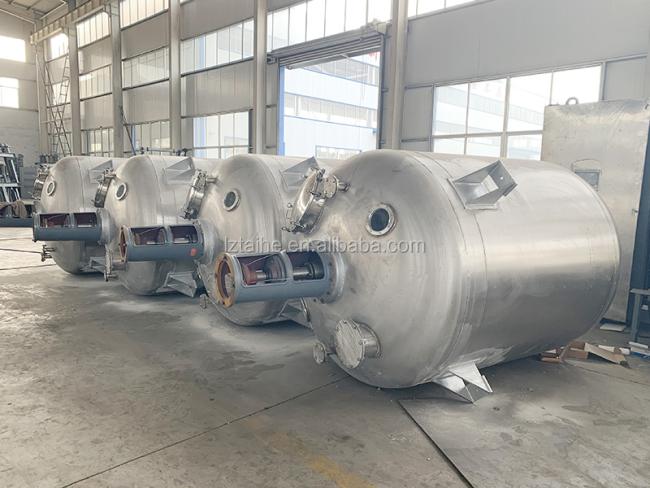

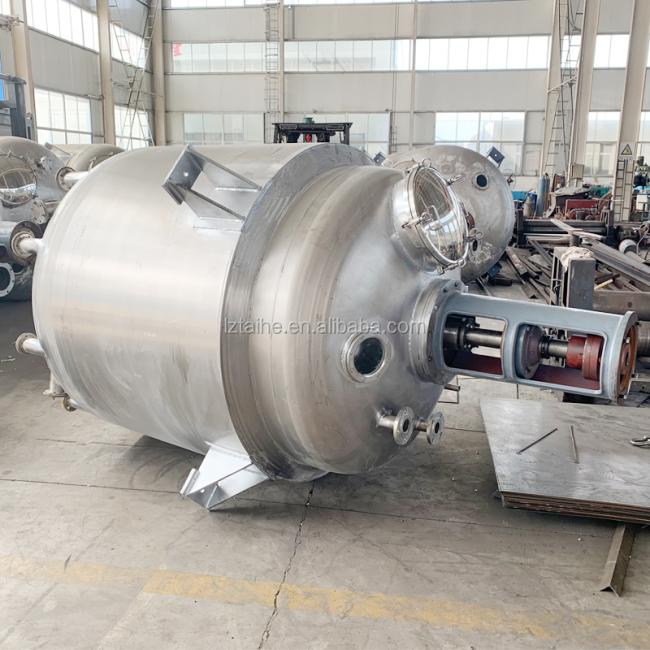

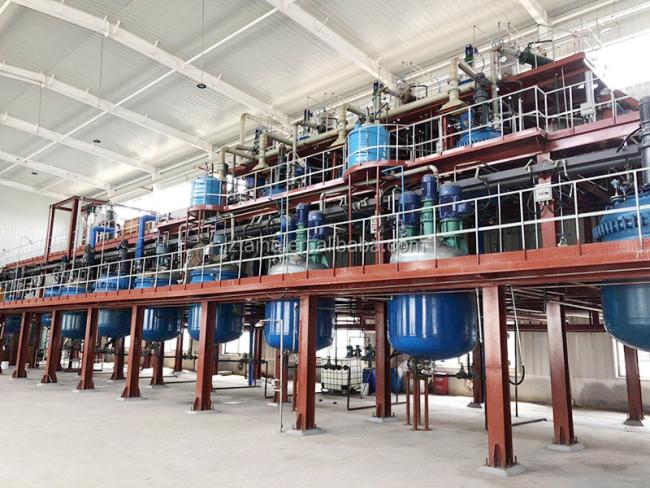

Project Show Case
Details Images

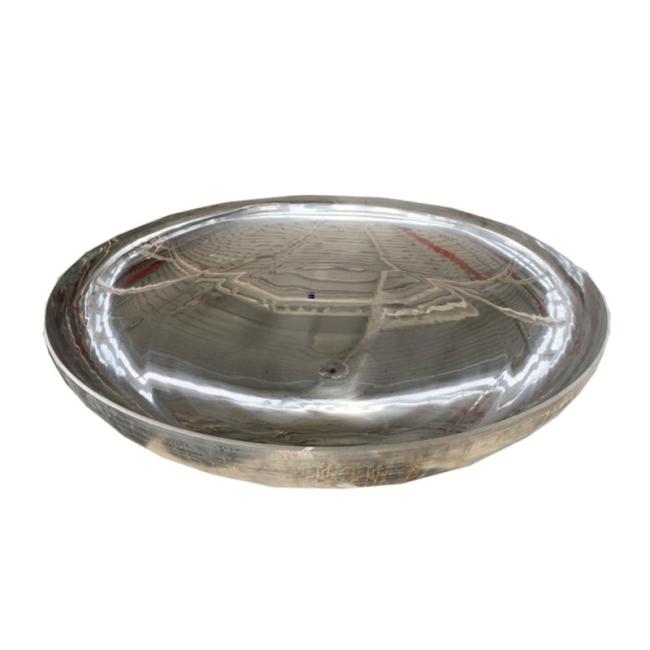

Mirror polished curved head

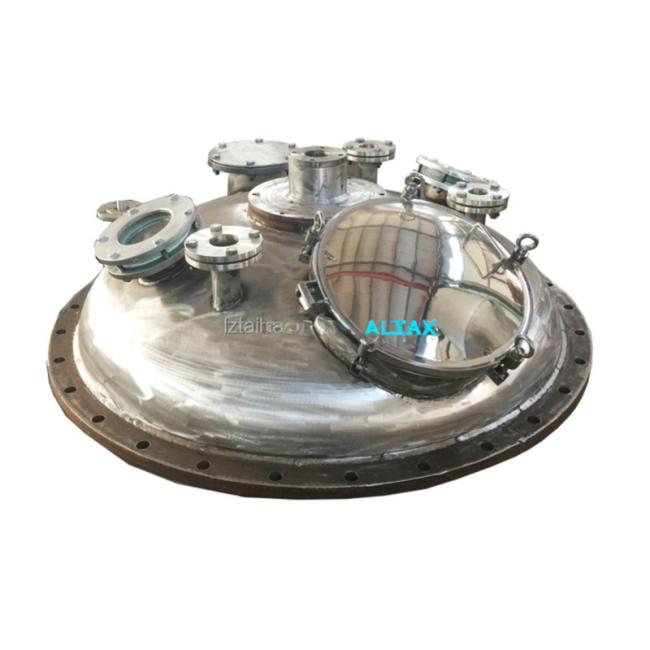

The upper cover of reactor (customizable)

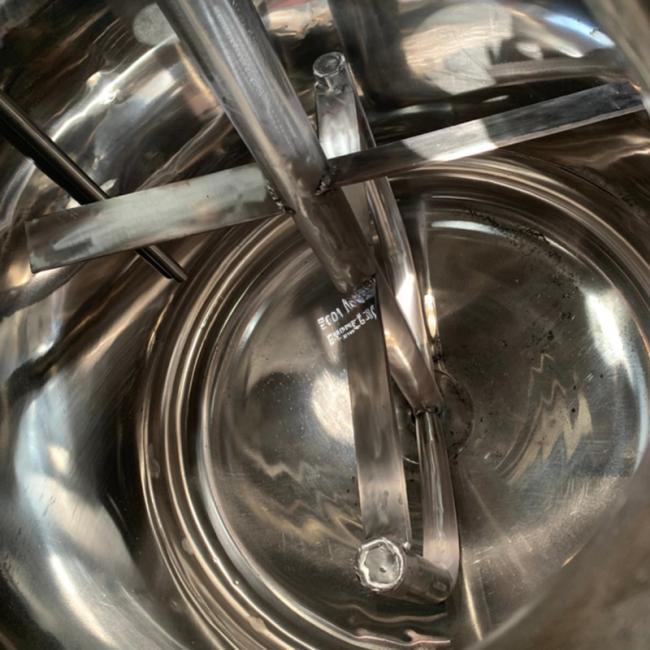

Anchor agitator
Paddle agitator

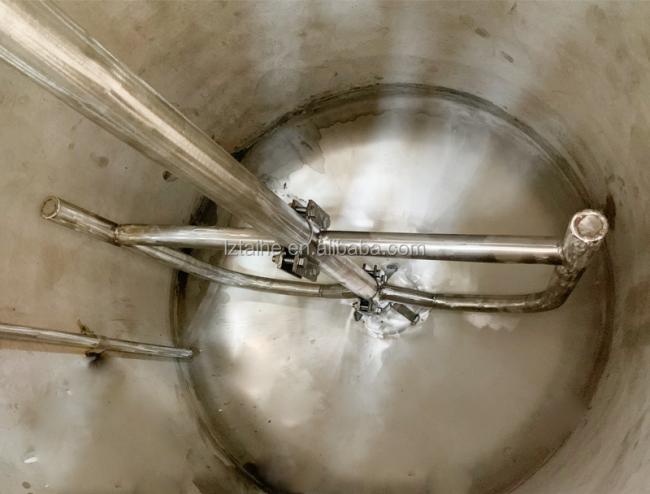

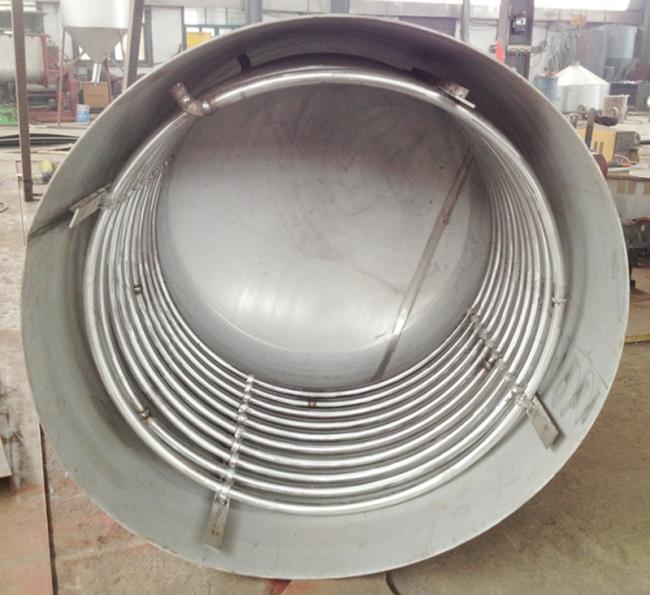

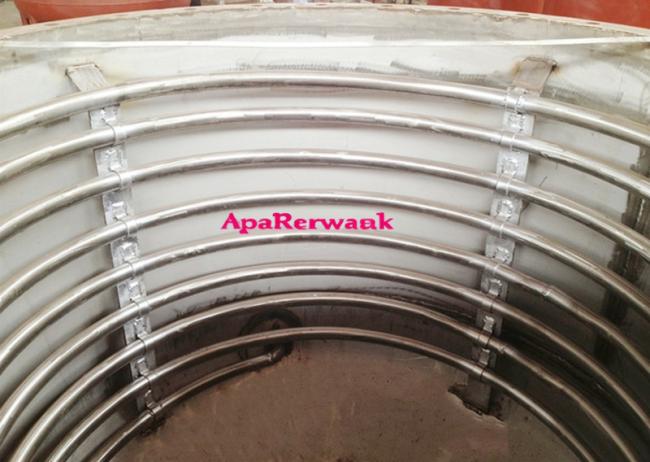

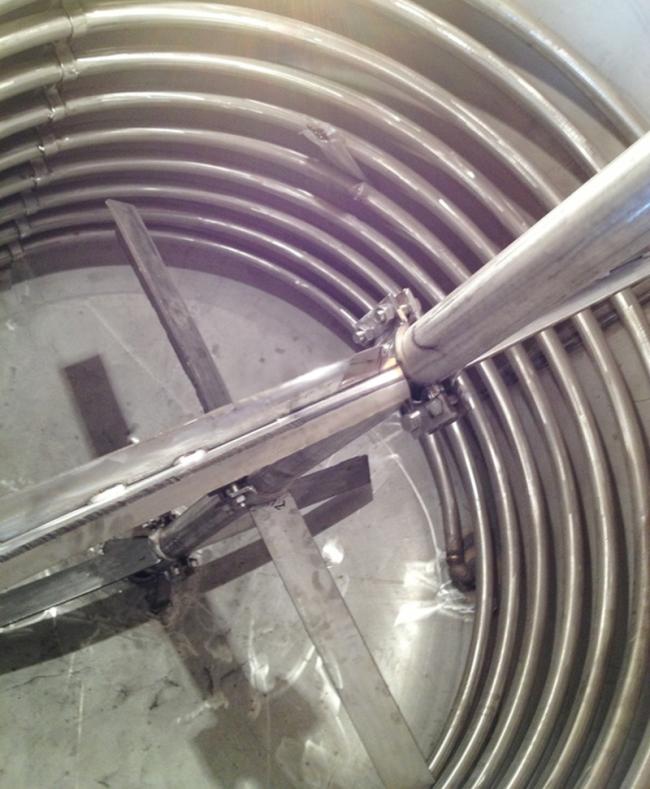

Cooling coil-pipe in inner cylinder
Cooling coil-pipe in inner cylinder
Related Products
Our Company
Company Profile

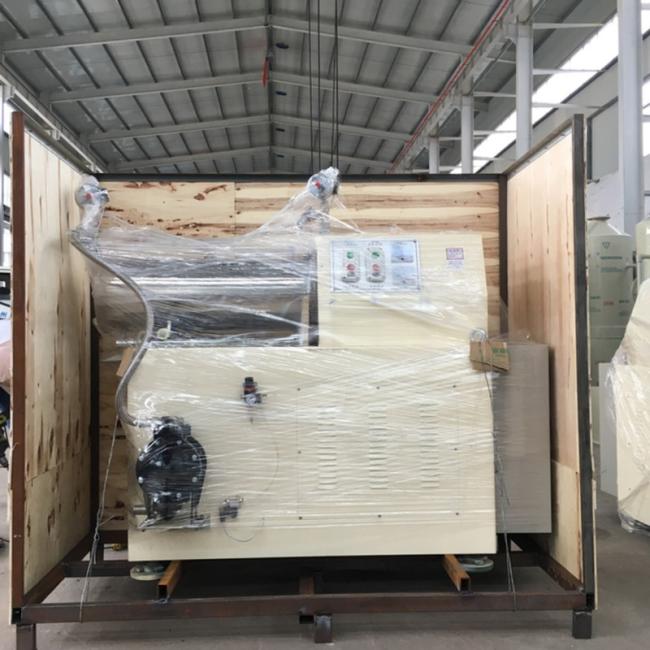

Packing & Delivery
