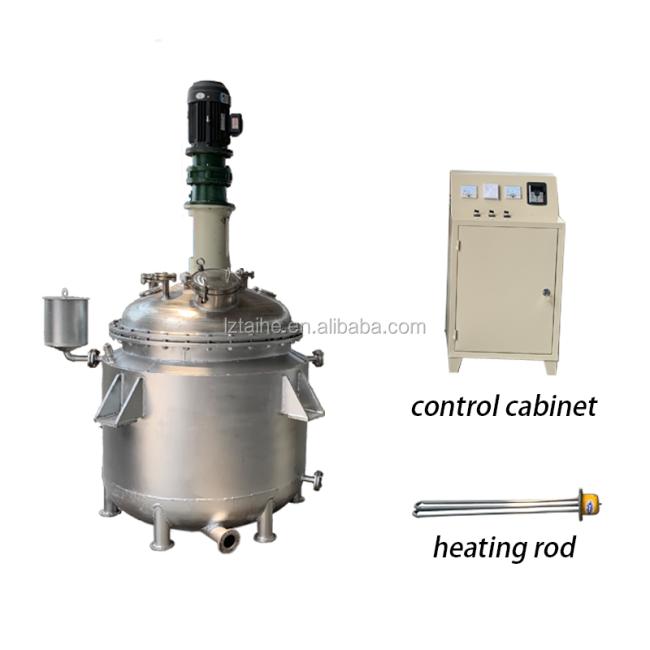

Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Price:
$1,200.00 - $12,500.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SANWEI
Product Description
Product Description
500l batch reactor price stainless steel agitated tank agitator reactor
1. Volume: 10 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling

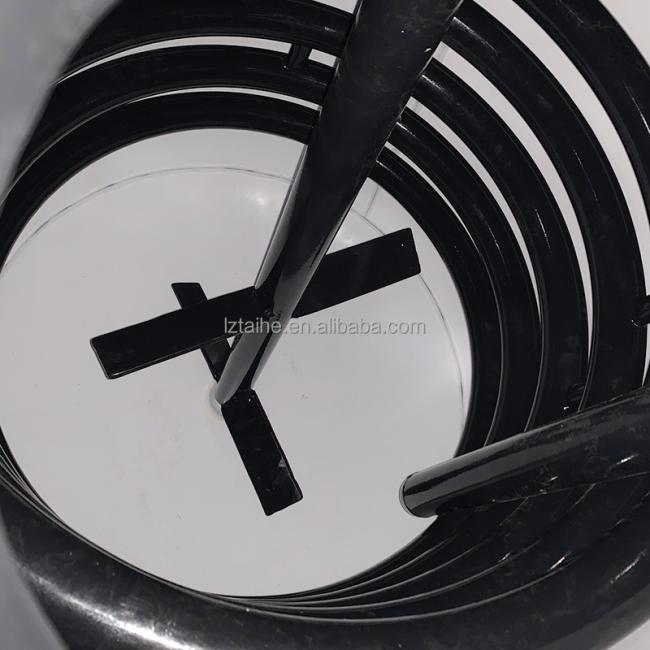

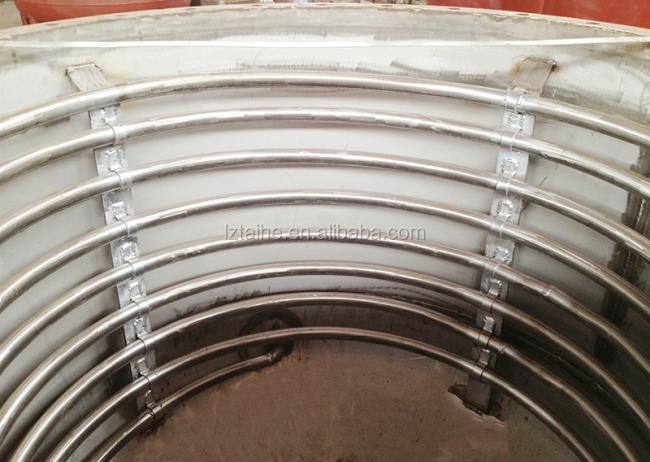

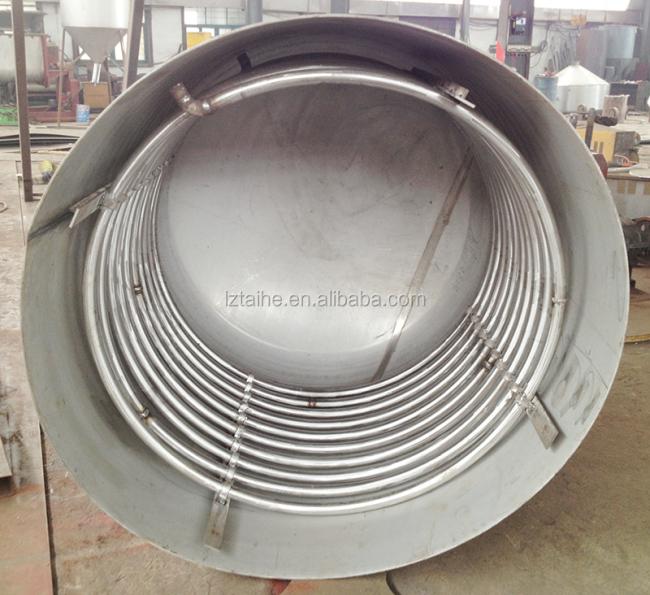

5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.










Model | 50L | 100L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | |||||||

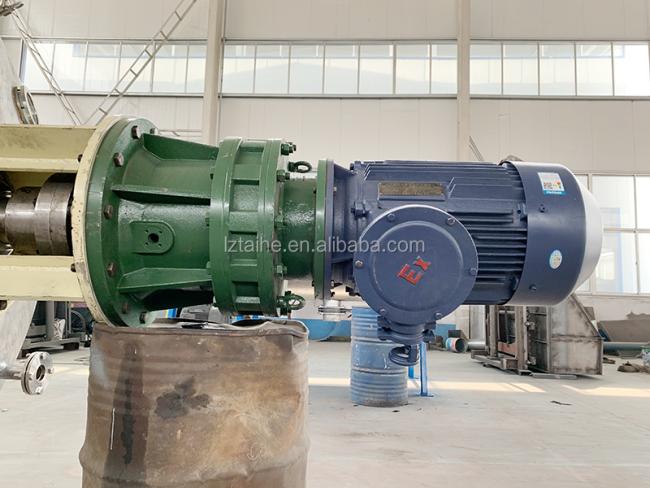

Mixing Motor Power | 0.75KW | 1.1KW | 2.2KW | 2.2KW | 4KW | 5.5KW | 7.5KW | 15KW | |||||||
Heating Motor Power | 8KW | 12KW | 24KW | 36KW | 48KW | 60KW | 75KW | 90KW | |||||||
Inner Plate Thickness | 5mm | 5mm | 5mm | 5mm | 6mm | 6mm | 8mm | 8mm | |||||||
Jacket Plate Thickness | 5mm | 5mm | 5mm | 5mm | 6mm | 6mm | 8mm | 8mm | |||||||
Material | SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement. | ||||||||||||||
Heating Type | electric heating, steam heating, oil circulation heating etc. | ||||||||||||||
Agitator | anchor, paddle, frame etc. | ||||||||||||||
Sealing Method | packing seal or mechanical seal (vacuum) | ||||||||||||||
Model | We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.) | ||||||||||||||
Remarks | We support OEM | ||||||||||||||

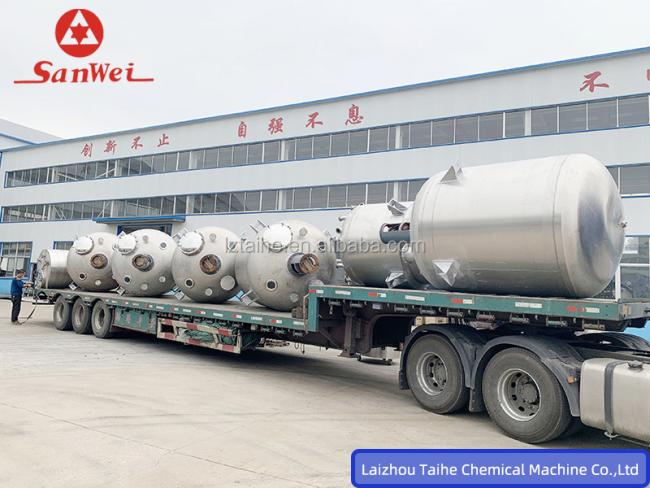

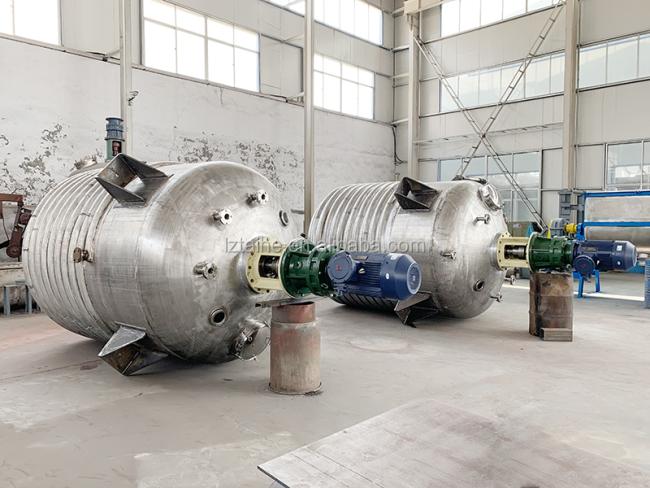

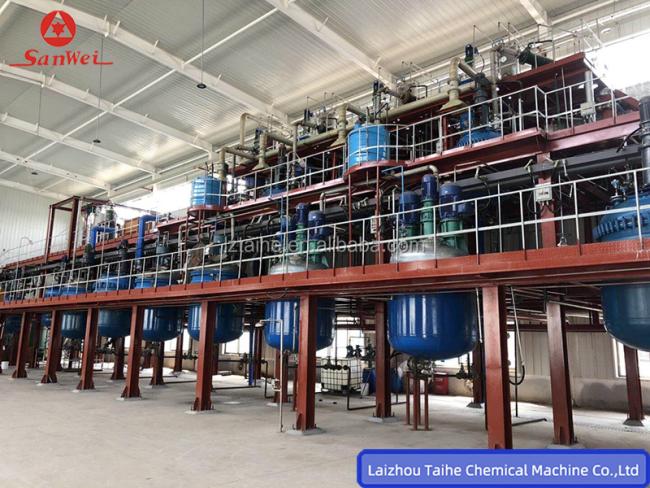

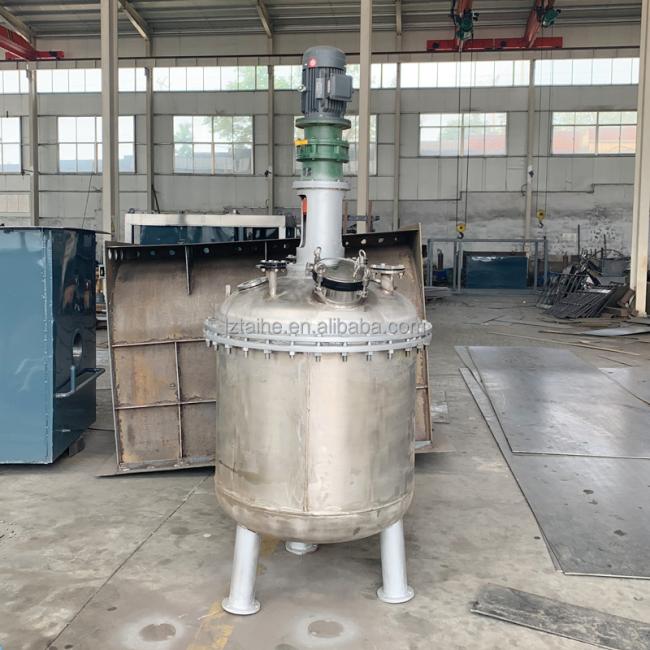

Project Show Case

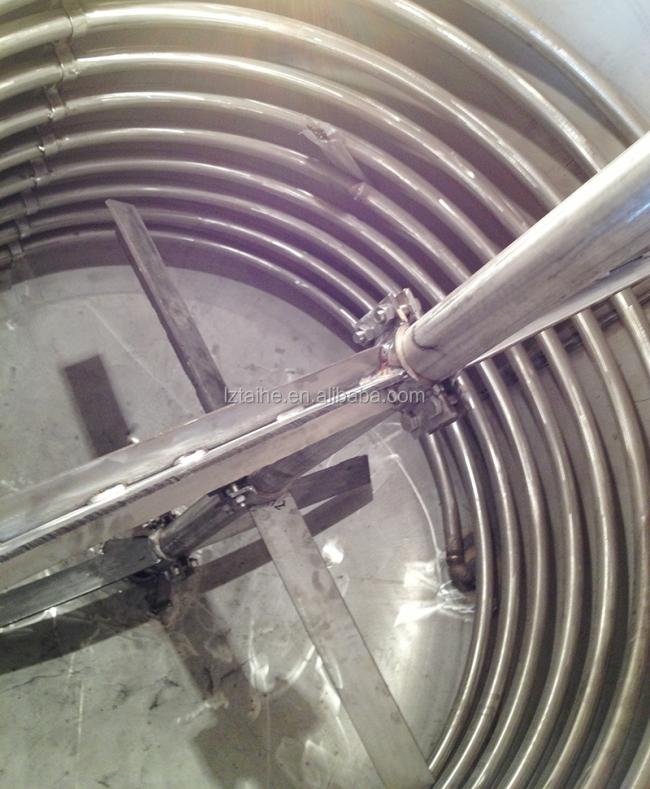

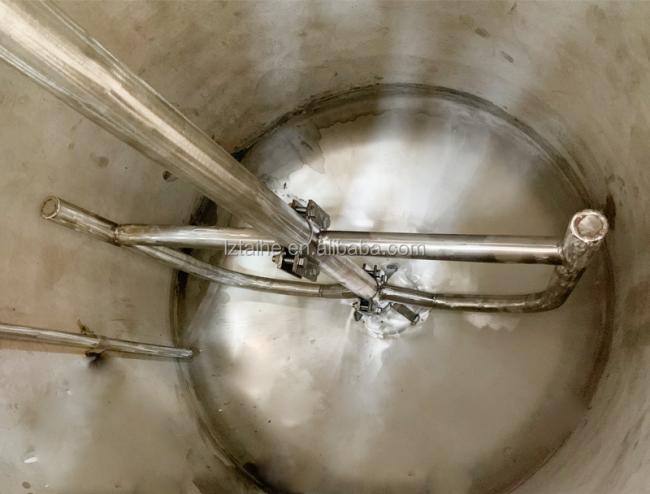

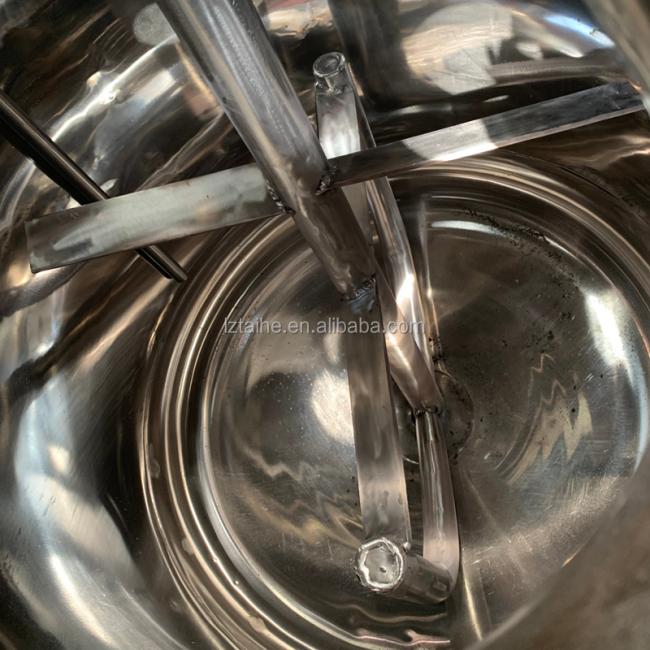

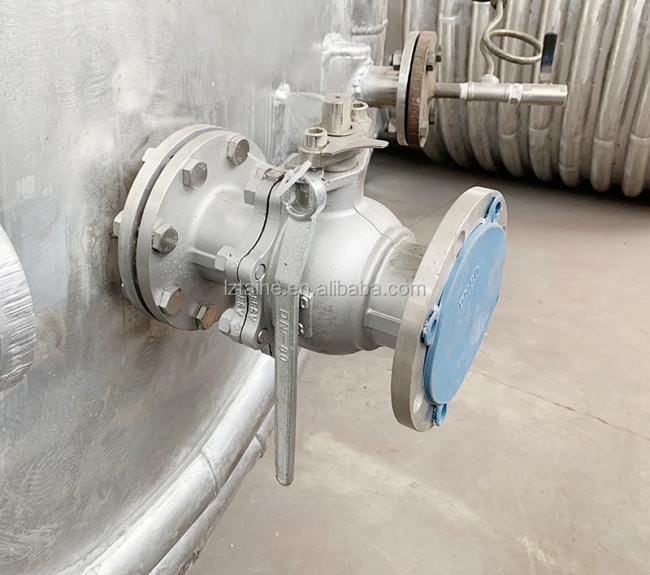

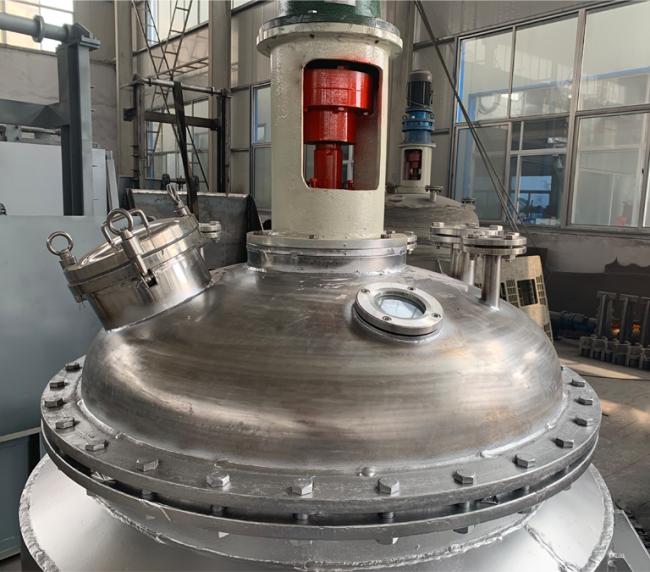

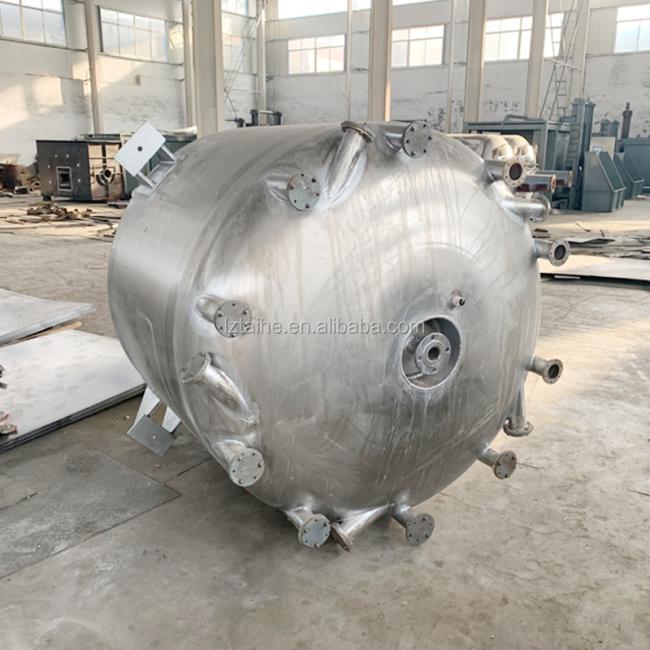

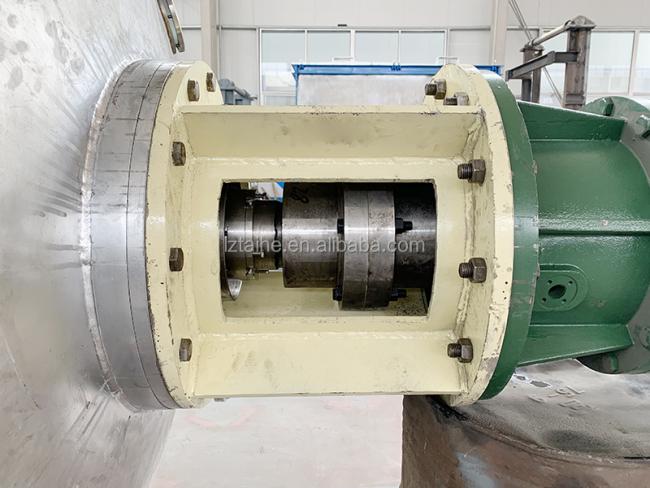

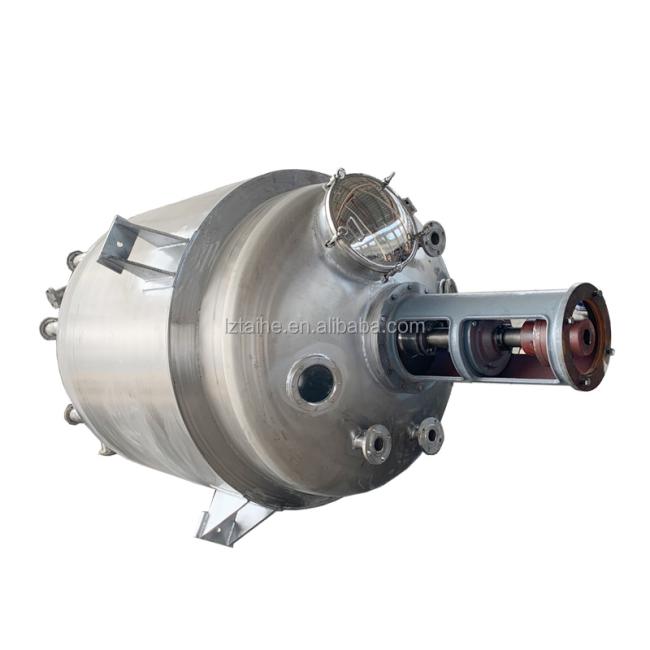

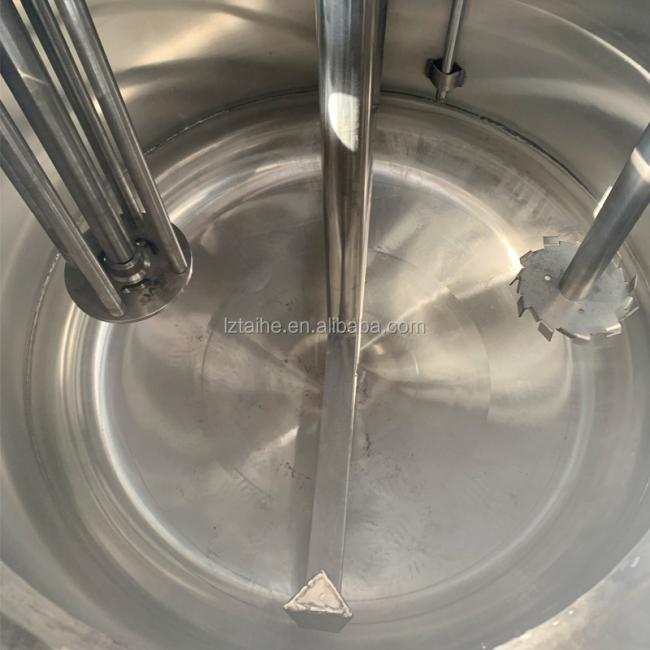

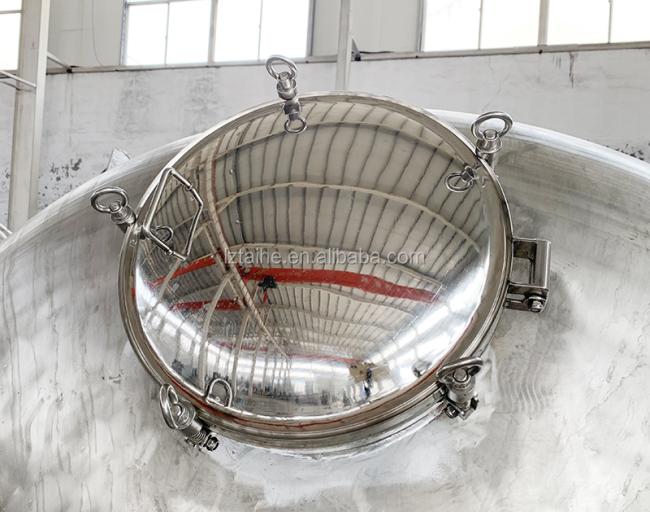

Details Images










Related Products
Company Profile

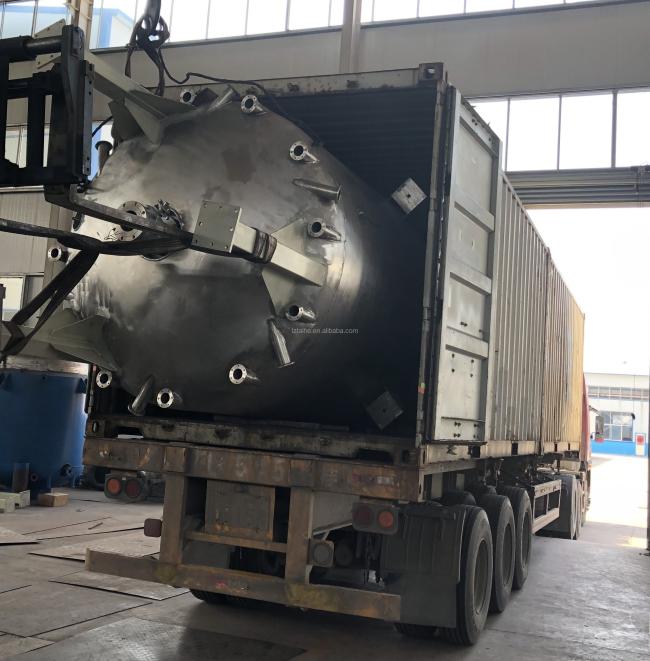

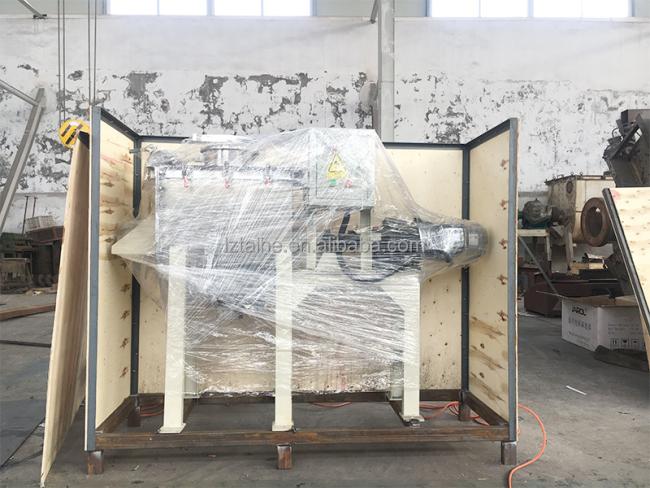

Packing & Delivery
