Chemical Industry Reactor Vessel Excellent Performance for Ordinary Pressure Processes
Price:
$1,850.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SANWEI
Product Description

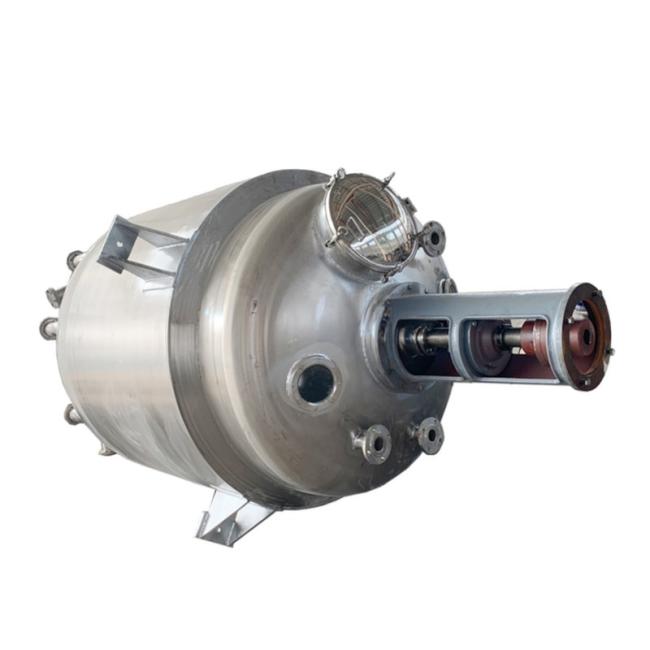

Excellent performance reactor tanks vessel reaction vessel kettle tanks chemical reactor
1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction type (frame, dispersing mixer, emulsify mixer) etc.
4. Type: single layer, double layer (with jacket to heating or cooling), external coil-pipe type
5. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
6. Warranty: 1 year
7. We support customization.
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction type (frame, dispersing mixer, emulsify mixer) etc.
4. Type: single layer, double layer (with jacket to heating or cooling), external coil-pipe type
5. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
6. Warranty: 1 year
7. We support customization.
upper cover
anchor agitator
anchor agitator
heating rod inlet
Model | 50L | 100L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | |||||||
Mixing Motor Power | 0.75KW | 1.1KW | 2.2KW | 2.2KW | 4KW | 5.5KW | 7.5KW | 15KW | |||||||
Heating Motor Power | 8KW | 12KW | 24KW | 36KW | 48KW | 60KW | 75KW | 90KW | |||||||
Inner Plate Thickness | 5mm | 5mm | 5mm | 5mm | 6mm | 6mm | 8mm | 8mm | |||||||
Jacket Plate Thickness | 5mm | 5mm | 5mm | 5mm | 6mm | 6mm | 8mm | 8mm | |||||||
Material | SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement. | ||||||||||||||
Heating Type | electric heating, steam heating, oil circulation heating etc. | ||||||||||||||
Agitator | anchor, paddle, frame etc. | ||||||||||||||
Sealing Method | packing seal or mechanical seal (vacuum) | ||||||||||||||
Model | We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.) | ||||||||||||||
Remarks | We support OEM | ||||||||||||||

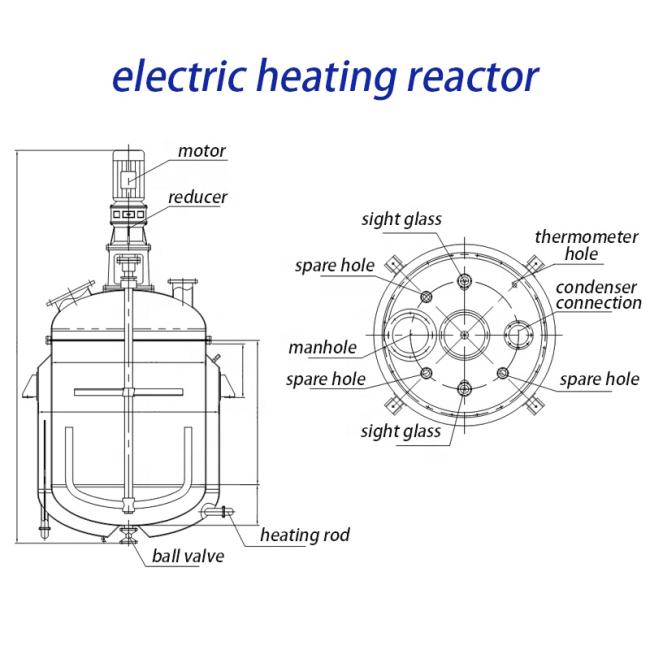

Structural Diagram
More Type
Single layer reactor
Steam Heating Reactor
Limpet Coil Reactor
Multifunctional Reactor

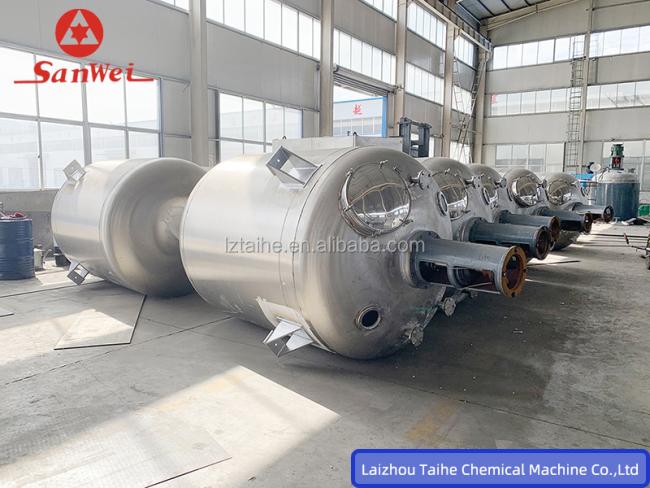

Project Show Case
Details Images
Mirror polished curved head
The upper cover of reactor (customizable)
Anchor agitator
Paddle agitator
Cooling coil-pipe in inner cylinder
Cooling coil-pipe in inner cylinder
Recommend Products
Our Company

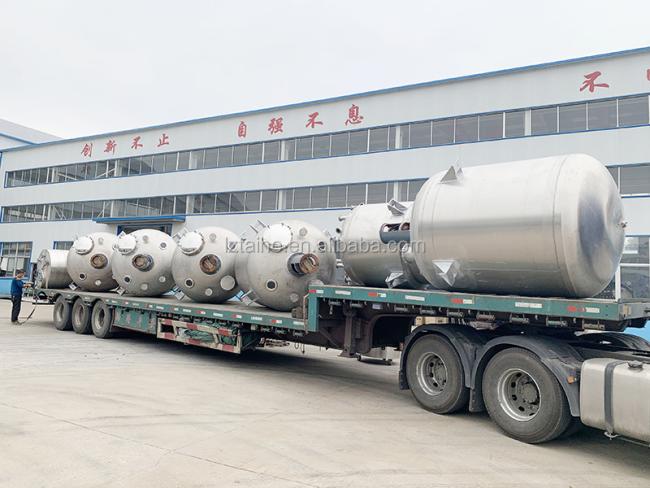

Packing & Delivery
