Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Price:
$5,850.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SANWEI
Product Description
Product Description

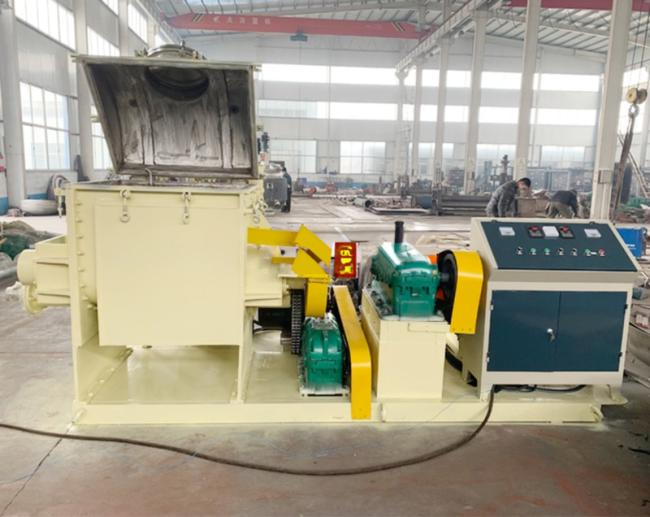

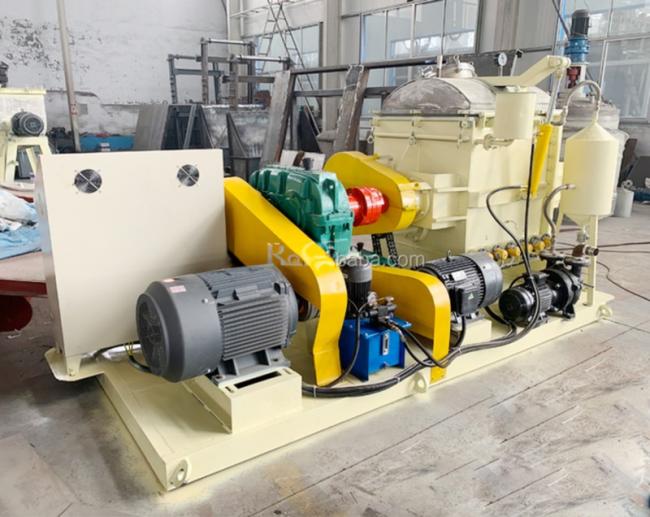

Horizontal Z-shape sigma kneader mixer machine with screw extruder
2. Structure: single layer, double layer with jacket to heating or cooling
3. Heating method: electric heating, circulation oil heating, steam heating
4. Type: normal type , vacuum type.
5. Discharge way: hydraulic tilt , screw extruding , bottom valve.
6. We support customization.
Kneader machine is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.
Main Features:
1. Material: SS304 , SS316L, carbon steel2. Structure: single layer, double layer with jacket to heating or cooling
3. Heating method: electric heating, circulation oil heating, steam heating
4. Type: normal type , vacuum type.
5. Discharge way: hydraulic tilt , screw extruding , bottom valve.
6. We support customization.
|
Model
|
Main Motor Power
|
Blade Rotate Speed (optional inverter regulation speed)
|
Heating Power (optional)
|
Discharge Method (optional)
|
Vacuum Pump Power (optional vacuum)
|
|||||
|
5L
|
0.75KW
|
33/23 rpm
|
1KW
|
manual tilt
|
2.2KW
|
|||||
|
10L
|
1.1KW
|
33/23 rpm
|
2KW
|
manual tilt
|
2.2KW
|
|||||
|
100L
|
4KW
|
35/22 rpm
|
12KW
|
hydraulic tilt
screw extruding
bottom valve
|
2.2KW
|
|||||
|
200L
|
7.5KW
|
35/22 rpm
|
18KW
|
hydraulic tilt
screw extruding
bottom valve
|
2.2KW
|
|||||
|
300L
|
15KW
|
37/21 rpm
|
24KW
|
hydraulic tilt
screw extruding
bottom valve
|
2.2KW
|
|||||
|
500L
|
22KW
|
35/25 rpm
|
36KW
|
hydraulic tilt
screw extruding
bottom valve
|
2.2KW
|
|||||
|
1000L
|
37KW
|
30/16 rpm
|
36KW
|
hydraulic tilt
screw extruding
bottom valve
|
4KW
|
|||||
|
1500L
|
45KW
|
30/16 rpm
|
45KW
|
hydraulic tilt
screw extruding
bottom valve
|
5.5KW
|
|||||
|
2000L
|
55KW
|
30/16 rpm
|
45KW
|
hydraulic tilt
screw extruding
bottom valve
|
5.5KW
|
|||||
|
Material: SS304, SS316L, Carbon Steel
Type: single layer or with jacket Open the cover: by manual or hydraulic opening Discharge: hydraulic tilt, screw extruding, bottom valve
Vacuum can be selected |
|
|
|
|
|
|||||
|
The above data is just for your reference, we support customization.
|
|
|
|
|
|
|||||
Silicone sealant production line, we have all these machines. If you are interested in any items, please feel free to contact us, thanks.
