Chemical Stirring Vessel 200L Resin Reactor For High Capacity Unsaturated Polyester
Price:
$2,250.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SANWEI
Product Description

Product Description
Resin reactor reaktor polymerization reactor vessel chemical stirred tank unsaturated polyester resin reactors
1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, double layer (jacketed type), limpet coil type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.







|
Model
|
50L
|
100L
|
300L
|
500L
|
1000L
|
2000L
|
3000L
|
5000L
|
|||||||
|
Mixing Motor Power
|
0.75KW
|
1.1KW
|
2.2KW
|
2.2KW
|
4KW
|
5.5KW
|
7.5KW
|
15KW
|
|||||||
|
Heating Motor Power
|
8KW
|
12KW
|
24KW
|
36KW
|
48KW
|
60KW
|
75KW
|
90KW
|
|||||||
|
Inner Plate Thickness
|
5mm
|
5mm
|
5mm
|
5mm
|
6mm
|
6mm
|
8mm
|
8mm
|
|||||||
|
Jacket Plate Thickness
|
5mm
|
5mm
|
5mm
|
5mm
|
6mm
|
6mm
|
8mm
|
8mm
|
|||||||
|
Material
|
SS304, SS316L, Carbon Steel; It also can be lined PTFE.
|
|
|
|
|
|
|
|
|||||||
|
Heating Type
|
electric heating, steam heating, oil circulation heating etc.
|
|
|
|
|
|
|
|
|||||||
|
Agitator
|
anchor, paddle, frame etc.
|
|
|
|
|
|
|
|
|||||||
|
Sealing Method
|
packing seal or mechanical seal (vacuum)
|
|
|
|
|
|
|
|
|||||||
|
Model
|
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
|
|
|
|
|
|
|
|
|||||||
|
Remarks
|
We support OEM
|
|
|
|
|
|
|
|
|||||||
More Type

Electric Heating Reactor

Steam Heating Reactor

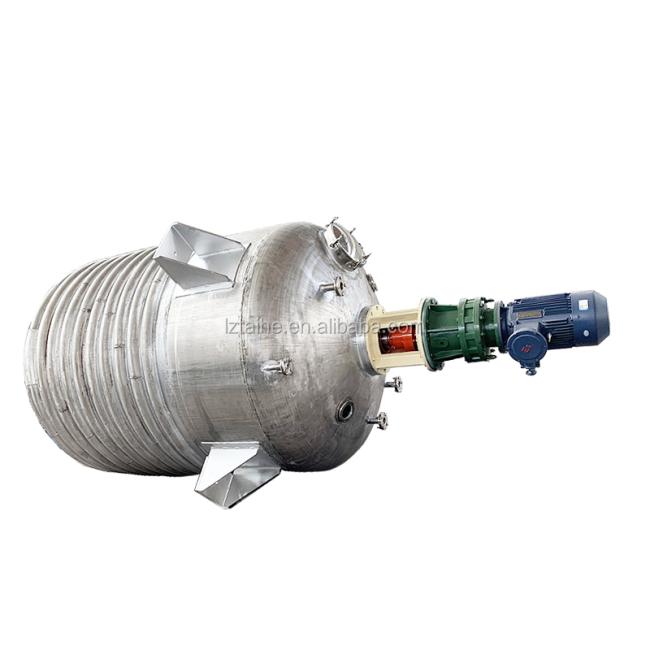

Limpet Coil Reactor

Three Agitator Reactor
Project Show Case

Details Images

Mirror polished curved head

The upper cover of reactor (customizable)

Anchor agitator

Paddle agitator

Cooling coil-pipe in inner cylinder

Cooling coil-pipe in inner cylinder
