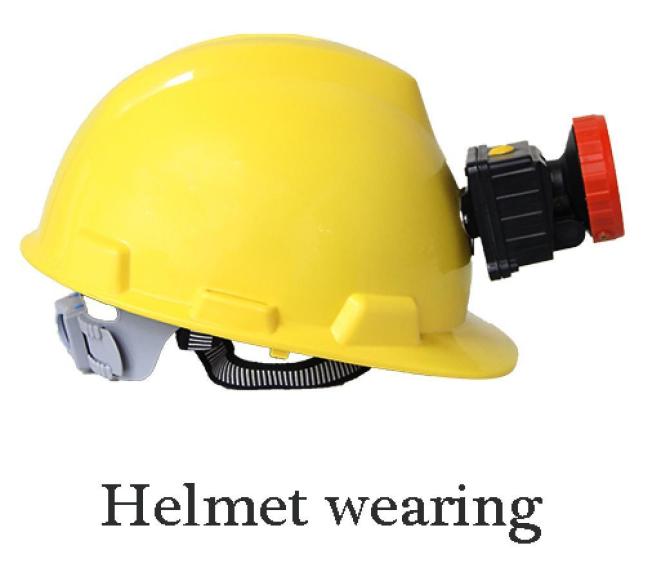

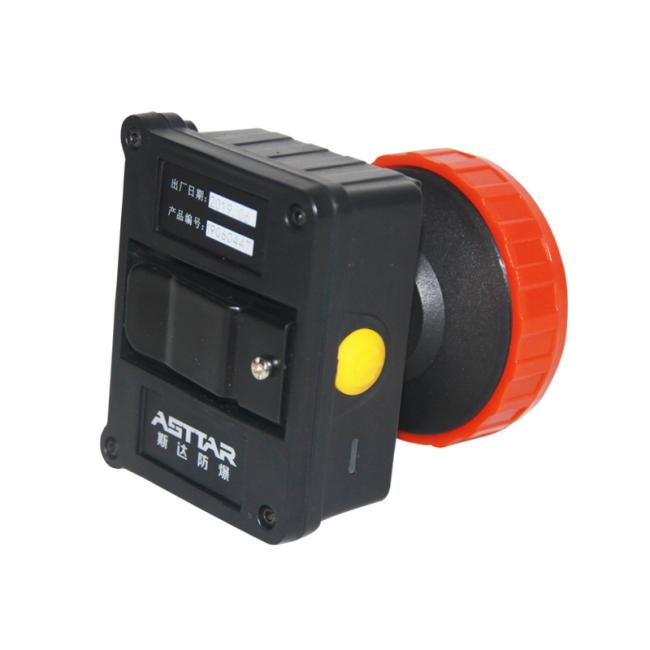

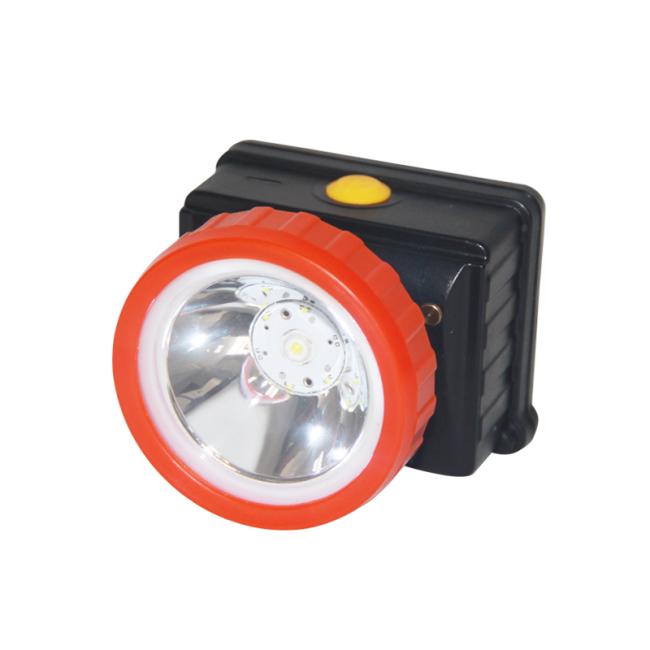

5 Modes Light Rechargeable Miner Lamp Headlamp for Mining and Tunneling
KL3LM(A) Intrinsically Safe Integrated Miner's Cap Lamp
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting.
2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable.
3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS.
4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing.
Technical parameters
| Item | Specification | ||
| Battery type | Li-ion | ||
| Rated capacity | 3Ah | ||
| Rated voltage | 3.7V | ||
| Lighting time | >12h | ||
| Main light source | Rated current | 200mA±10mA | |
| Maximum illuminance ( at 1m away from lamp) | When lighting begins | ≥4500lx | |
| After lighting for 11h | |||
| Cycle life of battery | ≥500 cycles | ||
| Charging time | ≤6h | ||
| Explosion proof type | Ex ia I Ma | ||
| Protection grade | IP65 | ||
| Dimensions | 84×68×73mm | ||
| Weight | ≤200g | ||
