Product Description
KL6Ex underground mining use LED miners cap lamp 6000mAh
ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000
This lamp is specially designed for use in underground mining operations.
Utilizes 6000mAh capacity lithium-ion batteries, the batteries are sealed in a high impact-resistant and water-resistant ABS enclosure, maintenance for free.

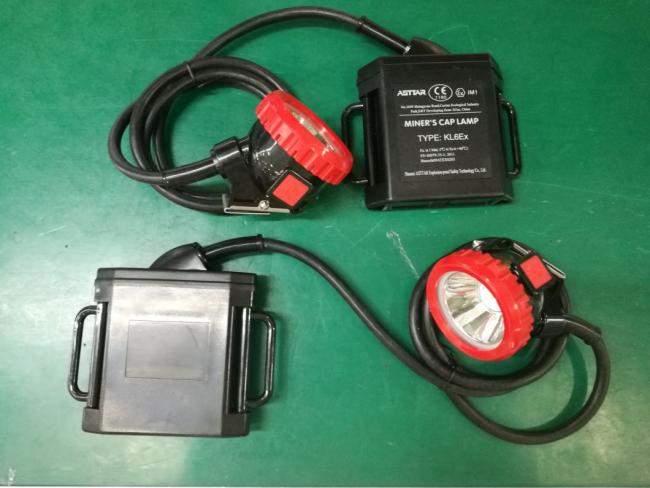

Adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The Head piece and battery box are connected by a cable, the head piece with a stainless steel clip that can be attached to a safety helmet.
Specification
Photos:
![Asttar Lamp Underground Mining LED Light with Cable Kl6ex Atex Approval]()
![Asttar Lamp Underground Mining LED Light with Cable Kl6ex Atex Approval]()
We offer different charging devices for one, ten and eighty units: KZC1B, KZC10A, KZC80A.
![Asttar Lamp Underground Mining LED Light with Cable Kl6ex Atex Approval]()
ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000
This lamp is specially designed for use in underground mining operations.
Utilizes 6000mAh capacity lithium-ion batteries, the batteries are sealed in a high impact-resistant and water-resistant ABS enclosure, maintenance for free.
Adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The Head piece and battery box are connected by a cable, the head piece with a stainless steel clip that can be attached to a safety helmet.
Specification
| Battery capacity | 6Ah | |
| Rated voltage | 3.7V | |
| Battery type | Lithium ion | |
| LED light source | 1 main light + 4 auxiliary lights | |
| Working time | Main light | > 17 hours |
| Auxiliary light | > 50 hours | |
| Illumination at 1m apart from the lamp | Lighting begin | ≥7500Lux |
| After 11 hours | ≥7000Lux | |
| Lamp material | ABS + stainless steel | |
| Cable length | 1.45m | |
| Cap lamp lifespan | 2 years | |
| Charging time | < 10 hours | |
| Charging voltage | (6~8)V | |
| Charging cycle | > 800 cycles | |
| Explosion protection type | Ex ia I Ma, | |
| Ingress protection | IP65 | |
| Size | Headpiece: Φ71×75 mm, Battery pack: (72*65*18)mm | |
| Lamp weight | 650g | |
Photos:
We offer different charging devices for one, ten and eighty units: KZC1B, KZC10A, KZC80A.
