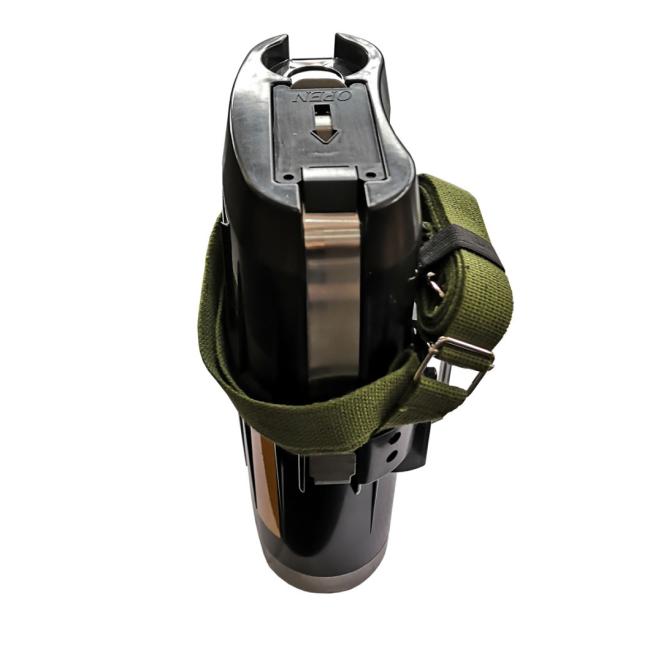

ABS Compressed Oxygen Self-Rescuer, Reusable Breathing Apparatus, Zyx45 (A)
ASTTAR ZYX45(A) reusable 45 minutes duration escape respirator, breathing apparatus,respiratory safety equipment, isolated compressed oxygen self rescuer
Application
It is a breathing apparatus, which utilizes compressed oxygen as source to form isolated oxygen of closed circuit to provide the wearer with clean oxygen, and is mainly used under a mine or in the environment where toxic gases exist or oxygen is deficient.
Items | Specification | |
ZYX45(A) | ||
Rated protective time | ≥45min | |
Capacity of oxygen bottle | 0.4L | |
Filling pressure for oxygen bottle | 19-21 MPa | |
Oxygen storage capacity | ≥80L | |
Inhalation oxygen concentration | ≥25% (by volume) | |
Inhalation carbon dioxide concentration | ≤2.0% (by volume) | |
Inhaling temperature(at the ambient temperature of 20ºC±3ºC) | <50ºC | |
Oxygen-supplying modes | Quantitative oxygen supply | >1.2L/min |
Oxygen delivery by demand valve | >60L/min | |
Oxygen delivery by manual switch | >60L/min | |
Opening pressure of safety valve | ≤ 1Mpa | |
Opening force of sealing belt | 40-120N. | |
Automatic opening pressure of automatic supply valve | (-100~-400)Pa | |
Exhaust pressure | 150 Pa~300Pa | |
Dimensions | (244×183×102)mm | |
Weight | 2.3kg | |
With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 28 years' experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We trade as "GOKANG" brand (former brand, since1995) and "ASTTAR" brand (since 2017).
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. Mining self-rescuer
2. LED miner's cap lamp
3. LED Flame-proof laneway lamp
4. Mechanical and electronic anemometer
5. Isolated positive pressure oxygen breathing apparatus
6. Automatic resuscitator
7. Optical interference type methane detector
8. Infrared thermometer
9. Laser distance meter
10. Laser guider
