New Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self Rescuer

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

ASTTAR ZYX45(A) reusable 45 minutes duration escape respirator, breathing apparatus,respiratory safety equipment, isolated compressed oxygen self rescuer



Application



It is a breathing apparatus, which utilizes compressed oxygen as source to form isolated oxygen of closed circuit to provide the wearer with clean oxygen, and is mainly used under a mine or in the environment where toxic gases exist or oxygen is deficient.

Features


1. Ultra-long protection time, ultra-low breathing resistance.
2. Three-in -one strap combines the function of shoulder straps, waistband and neckband for quick and easy operation.
3. Unique locking method. the open wrench type locking method is adopted, which is convenient to open, safe and reliable.
4. Adopts patented water proof breathing casing, protection level of IP65, it can be worn through water.
5. Equipped with protective goggles to protect eyes from dust and gas.
6. Unique self-detaching waist button design.
7. Stainless steel base, which is beautiful and sturdy.





Main specification



Items

Specification

ZYX45(A)

Rated protective time

≥45min

Capacity of oxygen bottle

0.4L

Filling pressure for oxygen bottle

19-21 MPa

Oxygen storage capacity

≥80L

Inhalation oxygen concentration

≥25% (by volume)

Inhalation carbon dioxide concentration

≤2.0% (by volume)

          Inhaling temperature(at the  ambient temperature of  20ºC±3ºC)

<50ºC

Oxygen-supplying modes

Quantitative oxygen supply

            >1.2L/min

          Oxygen delivery by demand valve

      >60L/min

Oxygen delivery by manual switch

       >60L/min

Opening pressure of safety valve

 1Mpa

Opening force of sealing belt

40-120N.

Automatic opening pressure of automatic supply valve

(-100~-400)Pa

Exhaust pressure

150 Pa~300Pa

Dimensions

(244×183×102)mm

Weight

2.3kg

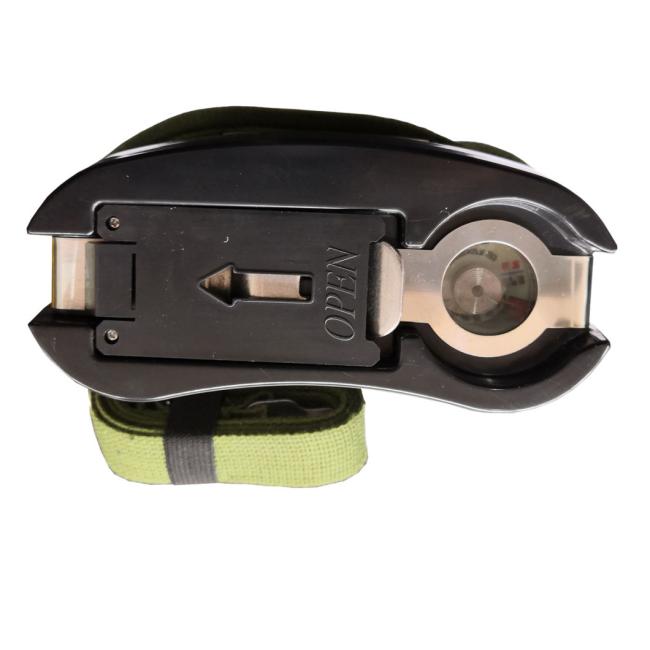

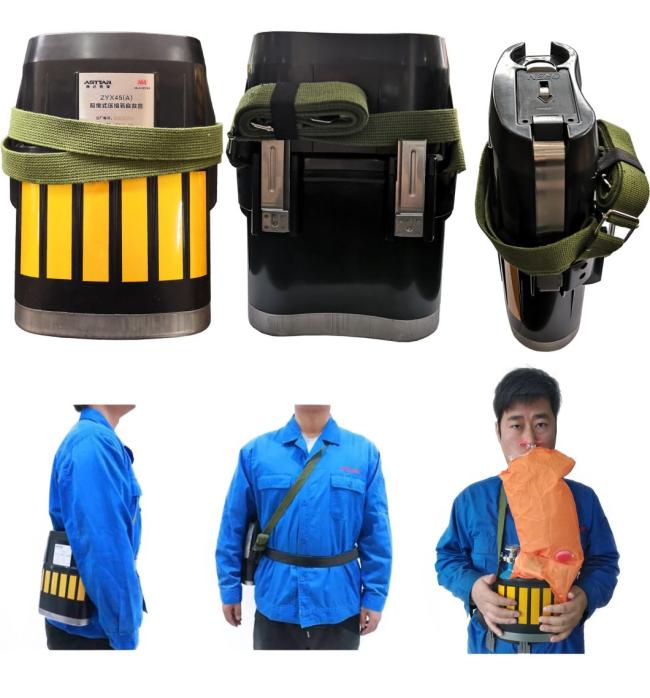

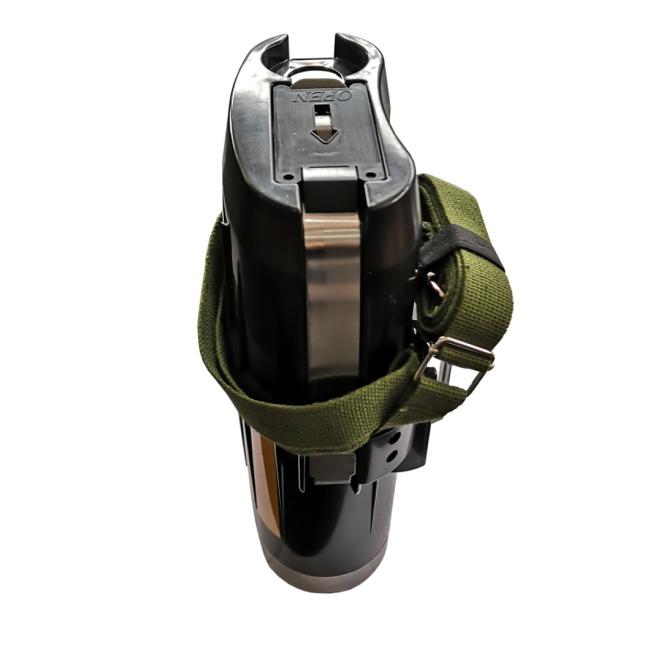

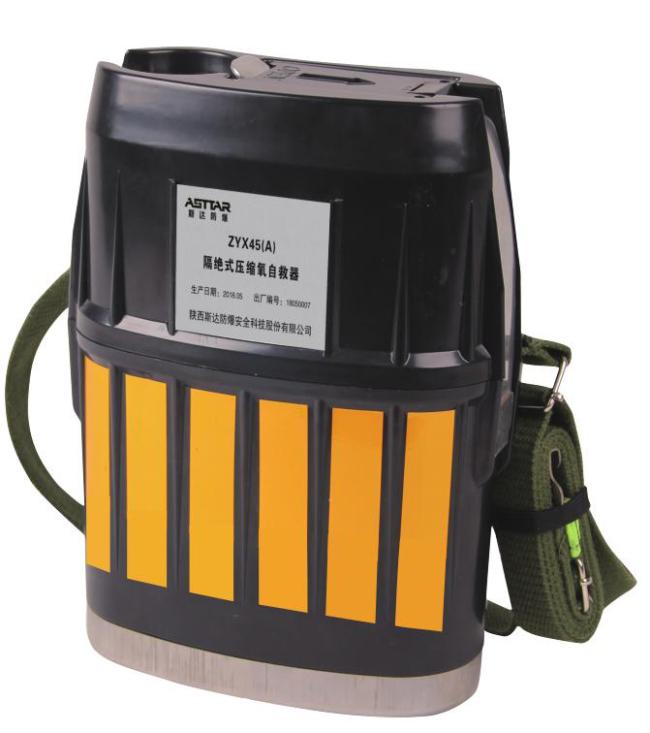

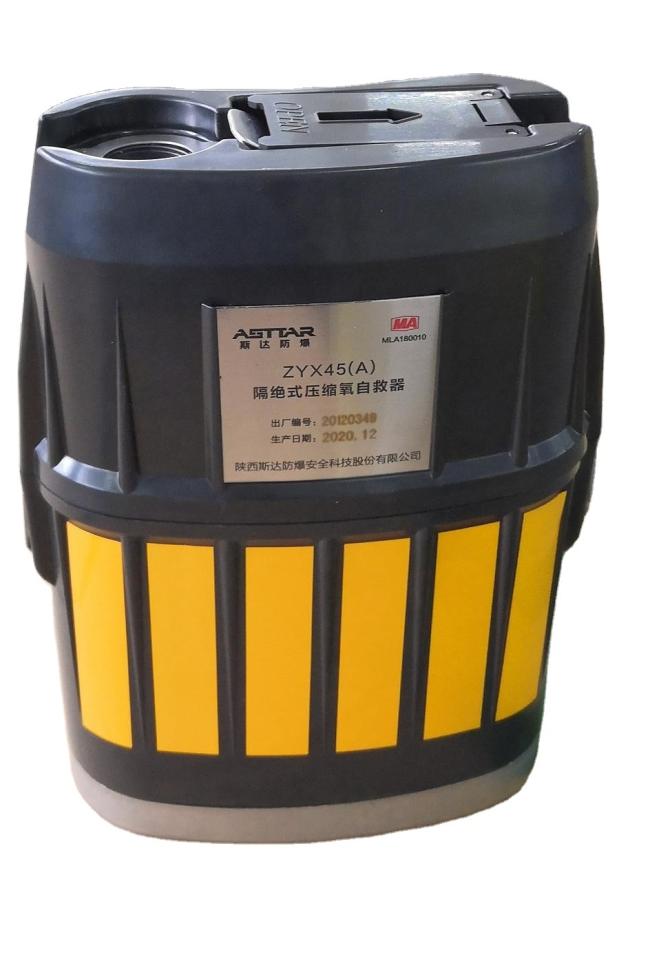

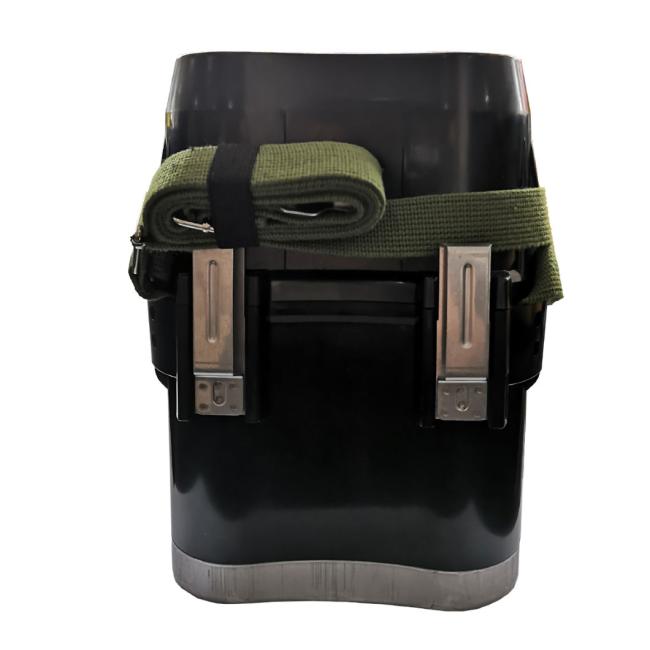

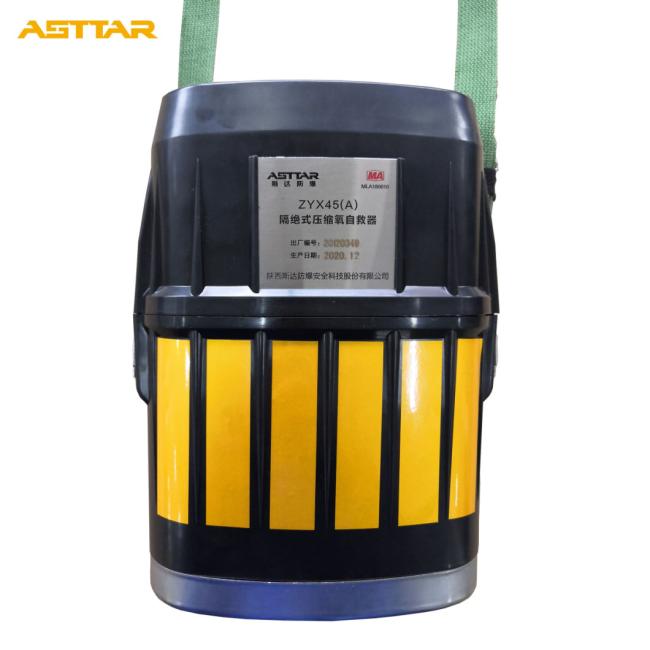

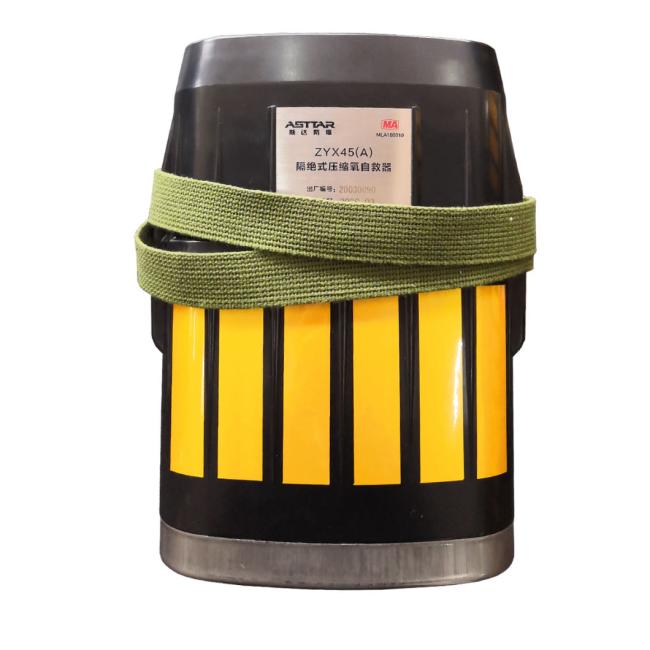

Product pictures
New Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self Rescuer
Packaging
New Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self RescuerNew Arrival Zyx45 (A) 45 Minutes Duration Escape Respirator, Breathing Apparatus, Respiratory Safety Equipment, Isolated Compressed Oxygen Self Rescuer
