JHBF's Rack EDFA consists of one or more EDFA modules in 1 RU unit.
For intelligent network management and monitoring, both SNMP and RS232 communication interfaces are available, ensuring its interconnection and compatibility with any network management system.
This rack EDFA is compatible with all kinds of EDFA modules, including fixed gain EDFA modules, variable gain EDFA modules and special gain spectra EDFA modules, to meet customized requirements, offering a wide range of rack EDFAs for different applications.
Dimensions 19 In 1RU 1U RACK EDFA For DWDM Longhual Transmission 20dBm
Price:
$850.00/pieces 1-9 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JHBF
Product Description
Product Description

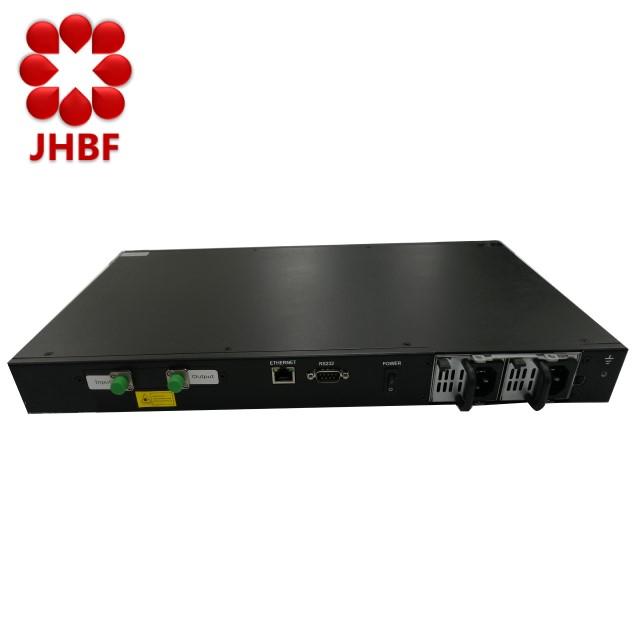

1U Rack EDFA
Details Images
Features
* Support gain bandwidth in C+L band
* Support AGC, APC, ACC modes
* Remote control of gain range and output power
* High gain flatness (<1.5dB)
* Low noise figure
* Support RS232 communication and SNMP function
* Optional 220AC or -48VDC power supply
* Support AGC, APC, ACC modes
* Remote control of gain range and output power
* High gain flatness (<1.5dB)
* Low noise figure
* Support RS232 communication and SNMP function
* Optional 220AC or -48VDC power supply
Application

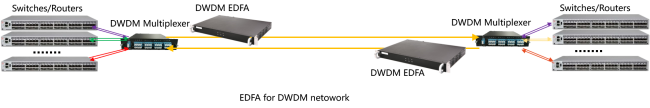

* DWDM optical communication system, LH, ULH
* Network protection and upgrading
* CATV amplification of FTTH
* Optical fiber sensing and video monitoring system
* Laboratory equipment
* National defense military and industry
* Network protection and upgrading
* CATV amplification of FTTH
* Optical fiber sensing and video monitoring system
* Laboratory equipment
* National defense military and industry
Characteristics
|
Parameter
|
Minimum
|
Typical Value
|
Maximum
|
Unit
|
|
|
1528
-
1561
nm
Input Power
-40
0
5
dBm
Saturated Output Power
-40
0
5
dBm
Noise Figure
-
-
5.5
dB
Polarization Dependent Gain
-
-
0.5
dB
Polarization Mode Dispersion
-
-
0.5
PS
Input Isolation
40
-
-
dB
Output Isolation
40
-
-
dB
Power Supply
-
DC48 or AC220
-
V
Power Consumption
-
-
50
W
Environmental
|
Parameter
|
Minimum
|
Maximum
|
Unit
|
|
Operating Temperature
|
-20
|
+60
|
℃
|
|
Storage Temperature
|
-40
|
+85
|
℃
|
|
Humidity
|
5
|
90
|
%
|
Mechanical Structure
|
Parameter
|
Specifications
|
|
Dimensions (Wxhxd)
|
Standard 1U rack (19 inches)
|
|
Power Interface (Back)
|
3 pin D-type connector or N-L-C standard 220V power interface
|
|
Communication Interface (Back)
|
Internet access (RJ45) or D-type RS232
|
|
Cooling Fan
|
3
|
|
Alarm Light
|
6 LED alarm lights
|
Order infomation
|
Company
|
OA Type
|
-
|
Package
|
Wavelength
|
Tx Power
|
Gain
|
Interface
|
Power
|
|
J:JHBF
|
EA:EDFA
|
-
|
R1:1RU
M1:Module |
C40: 40λCBand
L40: 40λLBand C01: 1λCBand L01: 1λLBand |
15:15dBm
17:17dBm 20:20dBm 24:24dBm |
15:15dB
20:20dB 25:25dB |
SU:SC/UPC
LU:LC/UPC FU:FC/UPC SA:SC/APC FA:FC/APC |
A:AC+AC
D:DC+DC |
