1310/1490/1550nm Visual Fault Locator Optical Power Meter -26--50dBm Handheld
Price:
$48.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LinkU
Product Description
Products Description
Optical Power Meter
LP Series Optical Power Meter is used to test power, loss, continuity and faults on all types of fiber optic systems. LP series provides high accuracy and simplicity of use.

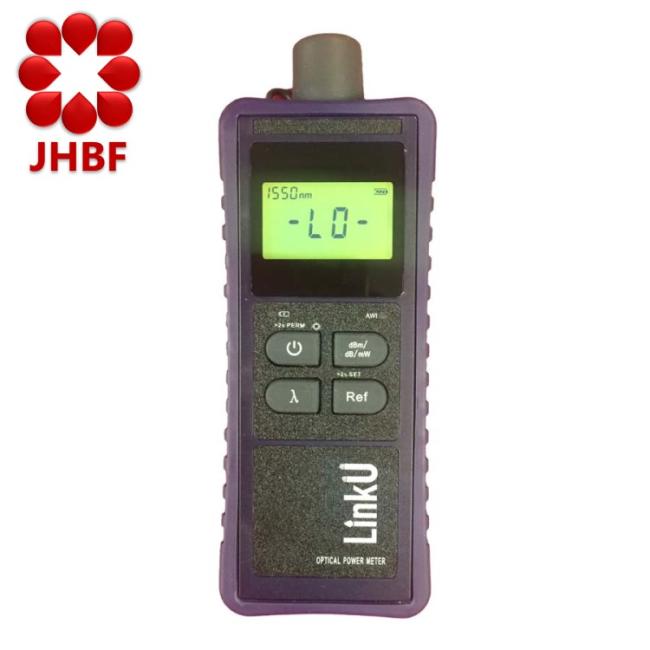

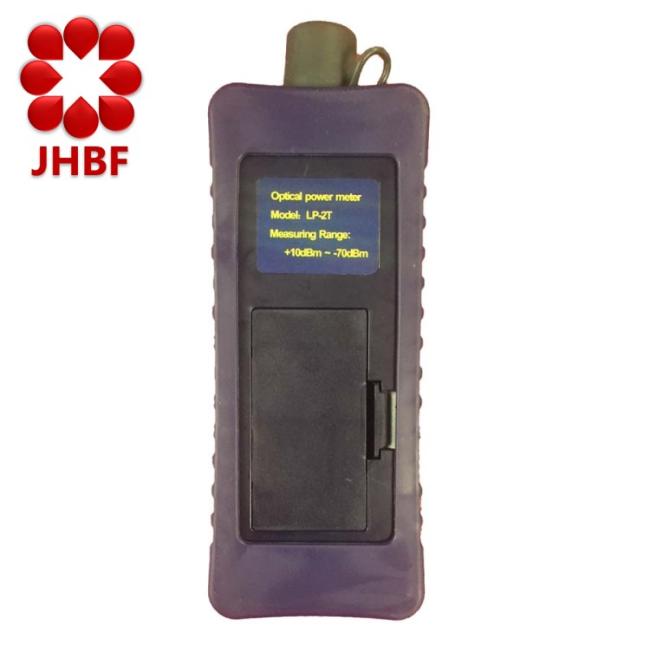

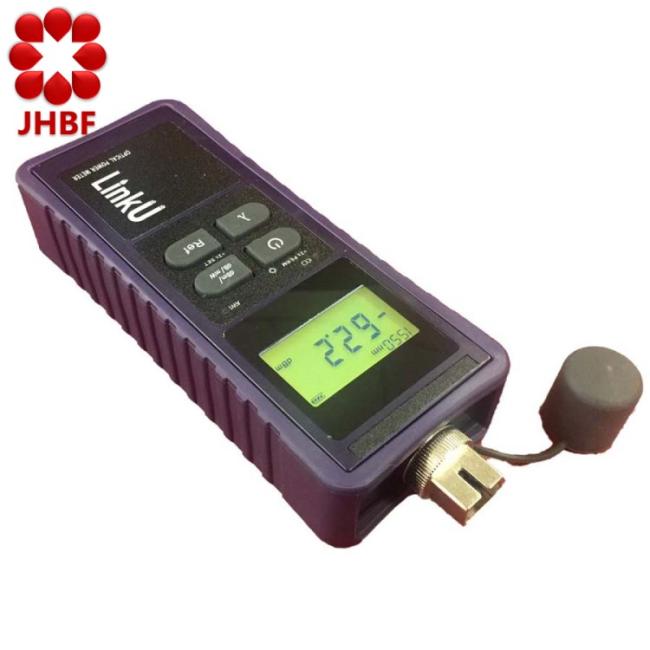

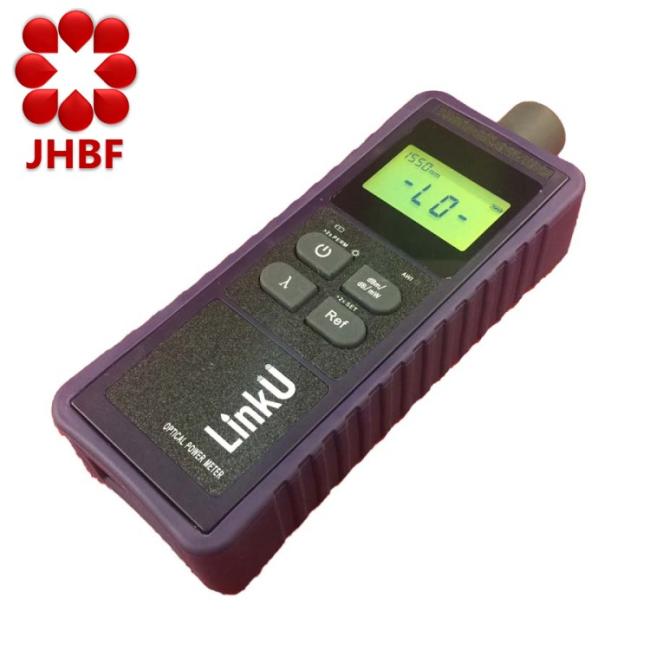

Details Images
Highlights
* Auto-wavelengths recognition
* Auto power-off, Back-light
* Auto power-off, Back-light
* Integrated with high performance optical detector and visual fault locator (LP-V)
Application
For optical fiber equipment field egineering construction.
For optical telecommunicaion system and optical sensing system R&D.
Specifications
|
General
|
|
|
|
|
||||
|
Calibrated Wavelength
|
850/980/1300/1310/1490/1550/1625 nm
|
|
|
|
||||
|
Detector Type
|
InGaAs
|
|
|
|
||||
|
Accuracy
|
±0.35db±1nW
|
|
|
|
||||
|
Resolution
|
0.01dB
|
|
|
|
||||
|
Linearity
|
±5%
|
|
|
|
||||
|
Connector
|
Interchangeable FC/PC, SC/PC, ST/PC &. 2.5mm universal
|
|
|
|
||||
|
Tone Detection
|
270Hz, 1KHz, 2KHz
|
|
|
|
||||
|
Operating Temperature
|
-10 to +50℃
|
|
|
|
||||
|
Storage Temperature
|
-20 to +70℃
|
|
|
|
||||
|
Power supply
|
2 * AA Batteries; AC/DC Adapter
|
|
|
|
||||
|
Dimension &. Weight
|
160×58×32 mm (L×W×H); 160g
|
|
|
|
||||
|
Standard Accessory
|
FC/PC &. SC/PC adapter, carrying bag, Manual
|
|
|
|
||||
|
Optional Items
|
FC(Male) to LC(Female) Adapter
|
|
|
|
||||
|
Module
|
LP-2T
|
LP-2C
|
LP-2TV
|
LP-2CV
|
||||
|
Measuring Range
|
-70 to +10dBm
|
-50 to +26dBm
|
-70 to +10dBm
|
-50 to +26dBm
|
||||
|
VFL Output Power (1)
|
N/A
|
N/A
|
1mW
|
1mW
|
||||
|
VFL Output Wavelength
|
N/A
|
N/A
|
650nm ±10nm
|
650nm ±10nm
|
||||
Order infomation
|
PartNumber
|
Product Description
|
|
LP-2T
|
Optical Power Meter 10~-70dBm with Wavelength&Frequency Recognition
|
|
LP-2C
|
Optical Power Meter 26~-50dBm with Wavelength&Frequency Recognition
|
|
LP-2TV
|
Optical Power Meter 10~-70dBm with Wavelength&Frequency Recognition
|
|
LP-2CV
|
Optical Power Meter 26~-50dBm with Wavelength&Frequency Recognition
|
