LC Connector 10G 100G CWDM DWDM Muxponder 4 Channels OTU With CDR EOLP 3R Function
Price:
$300.00 - $6,000.00/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JHBF
Product Description
100G Incoherent Optical Transport Unit(OTU/OEO)
JHBF OTU board is a service access module for optical fiber links. It can regenerate 3R signals or 1.25Gbit/s ~ 111.81Gbit/s services with arbitrary rate protocols, and can be converted into CWDM or DWDM standard wavelength optical signal. It can be used in optical communication systems such as PDH/SDH/POS/SONET/SAN/ETHERNET with CWDM or DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
JHBF OTU cards can be inserted into JHBF JWM1900 chassis, it can support 1U,2U,5U application.
Features
* Supporting a variety of transmission distances: no relay support up to 80KM
* SFP+ board supporting 4 channels bidirectional or 8 channels
* SFP+ board unidirectional 1.25Gbit/s~11.3Gbit/s arbitrary rate protocol service access
* Supporting client single mode or multimode
* XFP board Supporting 2 channels bidirectional or 4 channels
* 100G board supporting multiple client-side service access: 100GBase-SR4/CWDM4/LR4/PSM4. Line side 4X25G
* Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface)
* Supporting CDR function, which can optimize output, DDM signal monitoring and ALS (Automatic Laser Shutdown) function
* Supporting software to close the port
|
Parameter
|
Minimum
|
Maximum
|
Unit
|
|
Operating Temperature
|
-10
|
+70
|
℃
|
|
Storage Temperature
|
-40
|
+85
|
℃
|
|
Humidity
|
5
|
90
|
%
|
Features
* Supporting CWDM or DWDM transmission, wavelength conversion
* Supporting a variety of transmission distances: no relay support up to 80KM
* SFP+ board supporting 4 channels bidirectional or 8 channels
* SFP+ board unidirectional 1.25Gbit/s~11.3Gbit/s arbitrary rate protocol service access
* Supporting client single mode or multimode
* XFP board Supporting 2 channels bidirectional or 4 channels
* 100G board supporting multiple client-side service access: 100GBase-SR4/CWDM4/LR4/PSM4. Line side 4X25G
* Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface)
* Supporting CDR function, which can optimize output, DDM signal monitoring and ALS (Automatic Laser Shutdown) function
* Supporting software to close the port
* Supporting a variety of transmission distances: no relay support up to 80KM
* SFP+ board supporting 4 channels bidirectional or 8 channels
* SFP+ board unidirectional 1.25Gbit/s~11.3Gbit/s arbitrary rate protocol service access
* Supporting client single mode or multimode
* XFP board Supporting 2 channels bidirectional or 4 channels
* 100G board supporting multiple client-side service access: 100GBase-SR4/CWDM4/LR4/PSM4. Line side 4X25G
* Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface)
* Supporting CDR function, which can optimize output, DDM signal monitoring and ALS (Automatic Laser Shutdown) function
* Supporting software to close the port
|
Platform
|
-
|
Type
|
Optical interface
|
|
JWM1900
|
-
|
OTU
|
SF:SFP
SP:SFP+ XF:XFP CF:CFP C2:CFP2 |
Applications
Specifications
|
System Parameter
|
Technical Index
|
|
|
|
Board Type
|
SFP28/ QSFP28
|
QSFP28/QSFP28
|
|
|
Maximum capacity
|
1*100G bidirectional,
|
2*100G bidirectional,
|
|
|
|
1*100G unidirectional.
|
4*100G unidirectional.
|
|
|
Wavelength range
|
CWDM: 1271~1611nm. DWDM: C-Band (100GHZ or 50GHZ).
|
|
|
|
Service access types
|
100GE, OTU4.
|
|
|
|
3R technology
|
Re-amplifying, Retiming, Re-shaping
|
|
|
|
Network management mode
|
CLI, NetRiver, WEB.
|
|
|
|
Working temperature
|
-10℃~70℃
|
|
|
|
Storage temperature
|
-40℃~85℃
|
|
|
|
Relative humidity
|
5% ~ 95% no condensation
|
|
|
|
Product dimension
|
177 (W)*20(H)*225(D)(mm).
|
|
|
|
Safety and EMC
|
Compliance with FCC, UL, CE, TUV, CSA standards.
|
|
|
|
Power consumption
|
<13W
|
<24W
|
|
Order Information
|
Part number
|
Product Description
|
|
JWM1900-OTU3
|

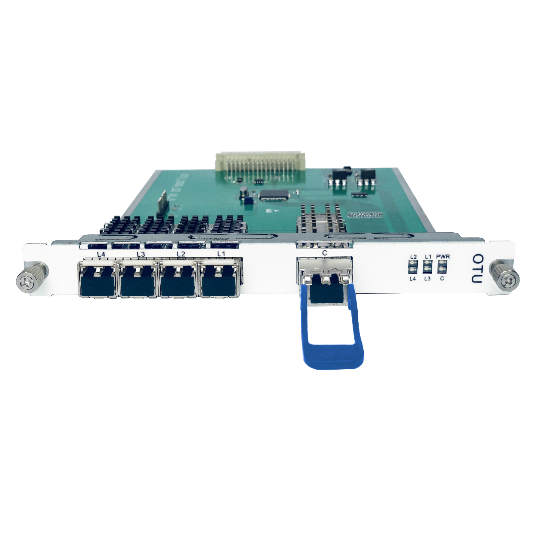

100G OTU Card. 4*SFP28<=>1*QSFP28
|
|
JWM1900-OTU4
|
100G OTU Card. 2*QSFP28<=>2*QSFP28
|
