Product Description
Product Description
JWM1900 DWDM/CWDM/OLP/EDFA chassis
JHBF JWP1900 series chassis is our new chassis platform, which is used for CWDM/DWDM sytem. It supports Dual AC or DC or AC+DC power supply, it is high reliability for Low power consumption and outdoor application.
It support optical multiplexer cards (include 6/12/18 wavelength CWDM cards, 16/32/40 wavelength DWDM cards), Optical amplifier cards (EDFA-BA, EDFA-PA, EDFA-LA, SOA cards), Optical line protection cards (OLP 1+1, OLP 1:1), Semi-active WDM cards ( 6 /12/18 CWDM integrated with OLP cards), Fiber cable monitor cards(OTDR), Fiber distribute sensing cards, and so on.
It can be widely used for Data Center Interconnection and 4G/5G mobile backhaul and mobile fronthual networks.
It support optical multiplexer cards (include 6/12/18 wavelength CWDM cards, 16/32/40 wavelength DWDM cards), Optical amplifier cards (EDFA-BA, EDFA-PA, EDFA-LA, SOA cards), Optical line protection cards (OLP 1+1, OLP 1:1), Semi-active WDM cards ( 6 /12/18 CWDM integrated with OLP cards), Fiber cable monitor cards(OTDR), Fiber distribute sensing cards, and so on.
It can be widely used for Data Center Interconnection and 4G/5G mobile backhaul and mobile fronthual networks.
Features
* 1U, 2U, 4U 19inch chassis.
* Support dual power supply redundancy, include dual Ac, dual DC, AC+DC.
* Low power consumption, suitable for DCI, Mobile front haul and mobile backhaul application.
* Support optical multiplexer cards, such as CWDM, DWDM, MWDM, LWDM.
* Support optical amplifier cards, include EDFA and SOA cards.
* Support OTDR and DCM cards.
* Support optical Line protection cards.
* Support dual power supply redundancy, include dual Ac, dual DC, AC+DC.
* Low power consumption, suitable for DCI, Mobile front haul and mobile backhaul application.
* Support optical multiplexer cards, such as CWDM, DWDM, MWDM, LWDM.
* Support optical amplifier cards, include EDFA and SOA cards.
* Support OTDR and DCM cards.
* Support optical Line protection cards.
* Support multi-service access, such as SDH(STM1/4/16/64), Ethernet (FE/GE/10GE/25G/50G/100G), Fiber Channel (FC1/2/4/8/16), and so on.
* Support 10G, 25G ,100G ,200G OTU cards.
Applications
DWDM System for DCI Applicaiton
OLT Backhual Application
4G and 5G Mobile Application
Environmental
|
Parameter
|
Minimum
|
Maximum
|
Unit
|
|
Operating Temperature
|
-20
|
+60
|
℃
|
|
Storage Temperature
|
-40
|
+85
|
℃
|
|
Humidity
|
5
|
90
|
%
|
Order Information
|
Part Number
|
Ver
|
Product Description
|
|
JWM1900-I
|
A
|

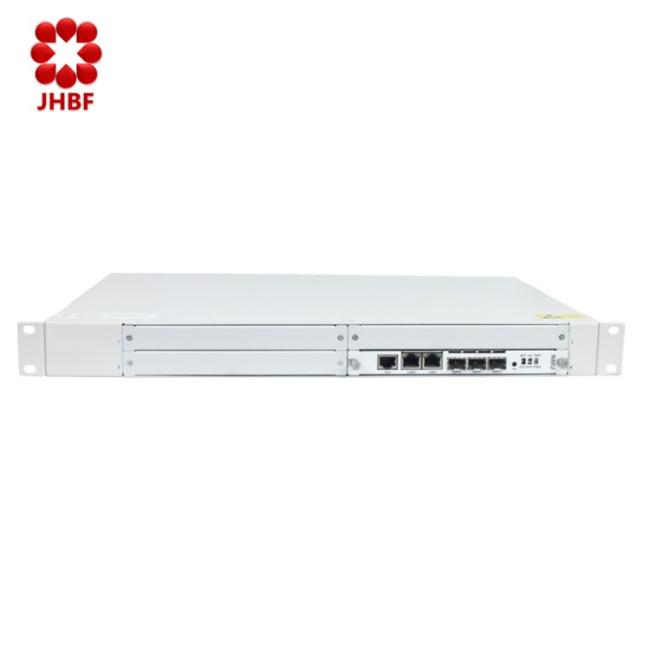

1U chassis, with 1 NMS card, Dual AC/DC power supply
|
|
JWM1900-II
|
A
|
2U chassis, with 1 NMS card, Dual AC/DC power supply
|
|
JWM1900-IV
|
A
|

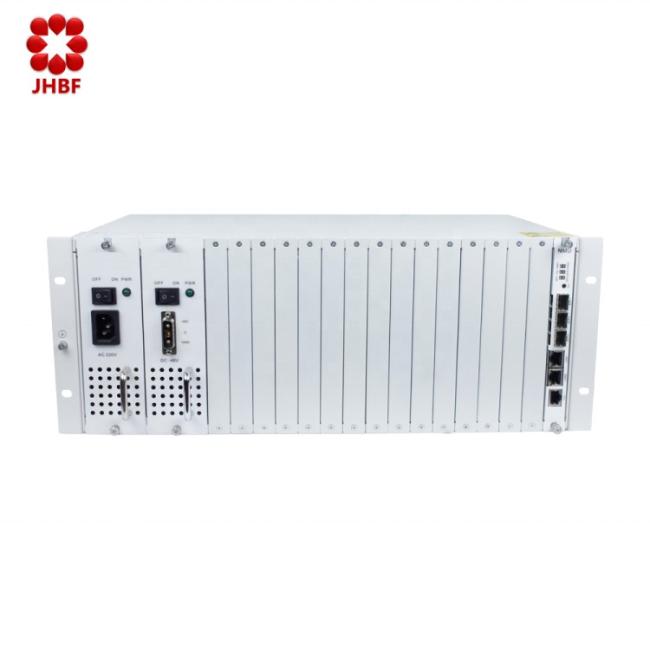

4U chassis, with 1 NMS card, Dual AC/DC power supply
|
