JHBF 100G/200G Coherent OTU board is a 100G service access module for optical fiber links. It can regenerate 3R (Retiming,
Reshape, Reamplify) signals for 100Gbits/s, and the wavelength is tunable can be converted into any DWDM standard wavelength optical signal, with the DWDM multiplexer/demultiplexer to multiplex multi-serviece into one fiber, it provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
The line side optical module adopts coherent detection technology, which can transmit over long distance without dispersion compensation.
It can be inserted into JWM1900 series chassis.
2ch 100G QSFP28 To DWDM CFP2 OEO Transponder For Fast Data Center Interconnect
Price:
$1,050.00/pieces 1-9 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JHBF
Product Description
Products Description
100G/200G Coherent Optical Tranport Unit Card(OTU)
JWM1900-OTU5

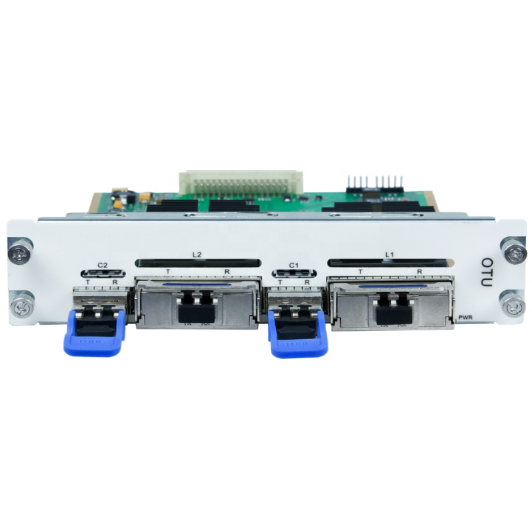

100G coherent OTU Card.
2*QSFP28 < = >2*CFP2.
JWM1900-OTU6

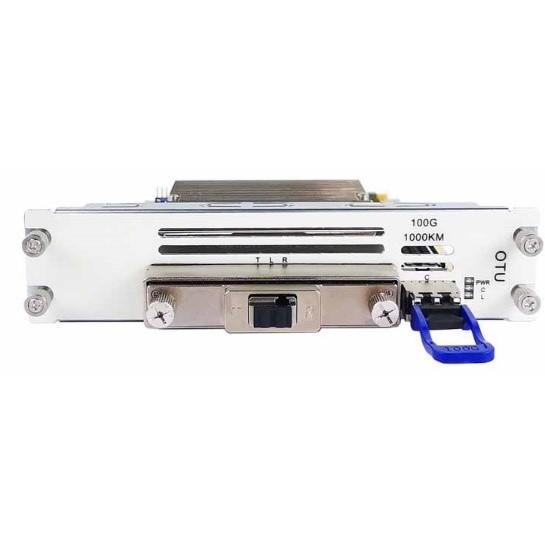

100G coherent OTU Card.
1*QSFP28 < = >1*CFP.
JWM1900-OTU7

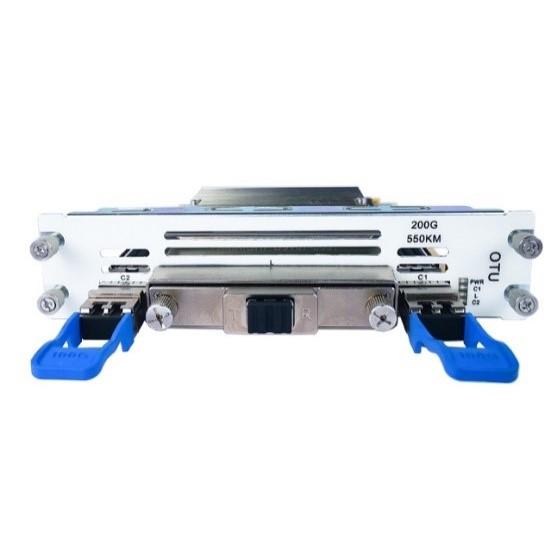

200G coherent OTU Card.
2*QSFP28 < = >1*CFP200G.
Features
* Supporting DWDM transmission, wavelength conversion.
* Supporting up to 40KM without relay.
* Supporting multiple client-side service access: QSFP28(100GBase-SR4/CWDM4/LR4/PSM4).
* Supporting CDR function, which can optimize output, DDM signal monitoring and ALS (Automatic Laser Shutdown) function.
* Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
* Supporting software to close the port.
* Supporting line-side: CFP or CFP2, coherent and tunable.
* Supporting up to 40KM without relay.
* Supporting multiple client-side service access: QSFP28(100GBase-SR4/CWDM4/LR4/PSM4).
* Supporting CDR function, which can optimize output, DDM signal monitoring and ALS (Automatic Laser Shutdown) function.
* Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
* Supporting software to close the port.
* Supporting line-side: CFP or CFP2, coherent and tunable.
Send Inquiry!

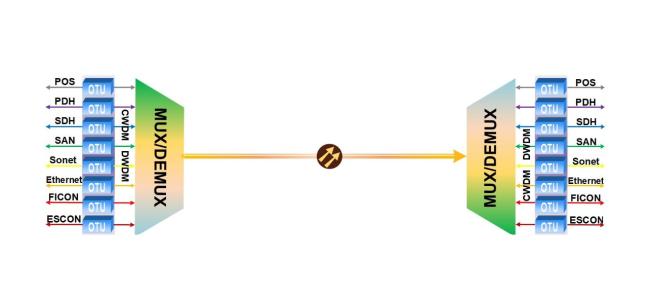

Applications
Specifications
|
System Parameter
|
Technical Index
|
|
|
||
|
Board Type
|
2*QSFP28 < = >2*CFP2
|
1*QSFP28 < = >1*CFP
|
2*QSFP28 < = >1*CFP200G
|
||
|
Wavelength range
|
DWDM: C-Band (100GHZ or 50GHZ). Tunable.
|
|
|
||
|
Service access types
|
100GE, OTU4.
|
|
|
||
|
Dispersion tolerance
|
±40000ps/nm@100G ±10000ps/nm@200G
|
|
|
||
|
OSNR tolerance
|
<12.5dB@100G <21dB@200G
|
|
|
||
|
Network management functions
|
CDR function (DDM real-time monitoring), ALS (Automatic Laser Shutdown) function, service access one-way or bidirectionalsetting.
|
|
|
||
|
Network management mode
|
CLI, NetRiver, WEB.
|
|
|
||
|
Working temperature
|
-10℃~70℃
|
|
|
||
|
Storage temperature
|
-40℃~85℃
|
|
|
||
|
Relative humidity
|
5% ~ 95% no condensation
|
|
|
||
|
Product dimension
|
177 (W)*40(H)*225(D)(mm).
|
|
|
||
|
Safety and EMC
|
Compliance with FCC, UL, CE, TUV, CSA standards.
|
|
|
||
|
Power consumption
|
<27W
|
<20W
|
<21W
|
||
Send Inquiry!
Order Information
|
Product Number
|
Product Description
|
|
JWM1900-OTU5
|
100G coherent OTU Card. 2*QSFP28 < = >2*CFP2.
|
|
JWM1900-OTU6
|
100G coherent OTU Card. 1*QSFP28 < = >1*CFP.
|
|
JWM1900-OTU7
|
200G coherent OTU Card. 2*QSFP28 < = >1*CFP200G.
|
