The JHBF 1000base-T copper SFP series transceiver is designed by all metal case which have good EMI and ESD performance. Moreover, it also complies with SFP Multi Source Agreement (MSA), which can be accessed with address of A0h via the IIC protocol. The physical IC can also be accessed via IIC at address ACh. It can be directly inserted into IP equipment of Cisco, H3C, Huawei and other manufactures. It is widely used in the network of carrier and data center.
SGMII Compatible Finisar Huawei 1G Copper SFP Module 1000 Base-T
Price:
$14.00/pieces 2-9 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
JHBF
Product Description

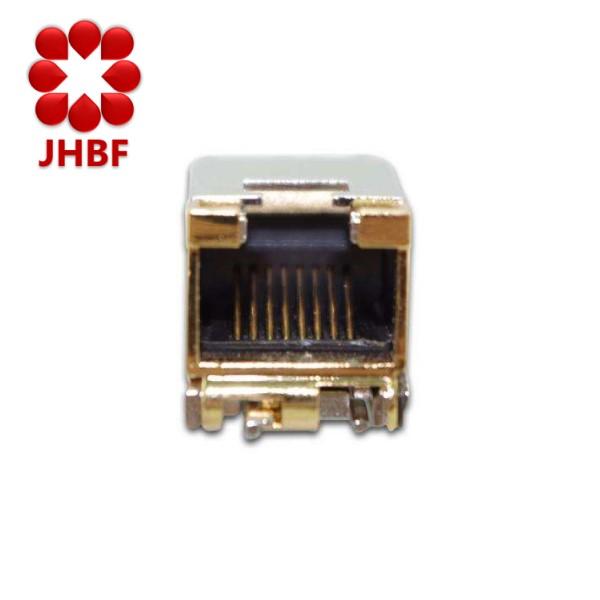

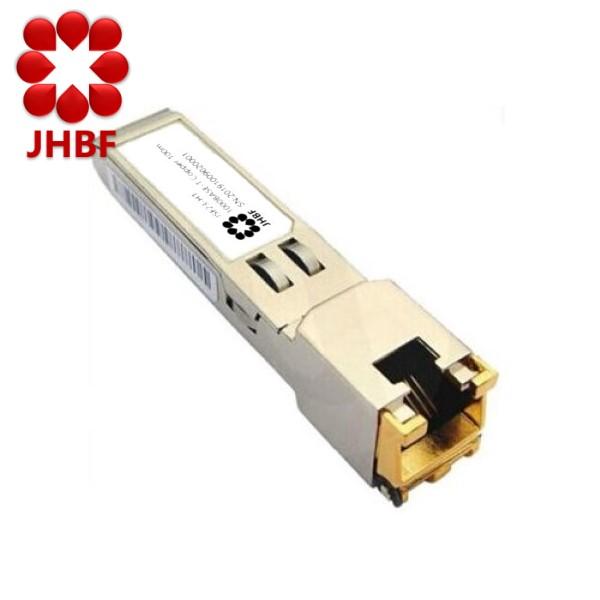

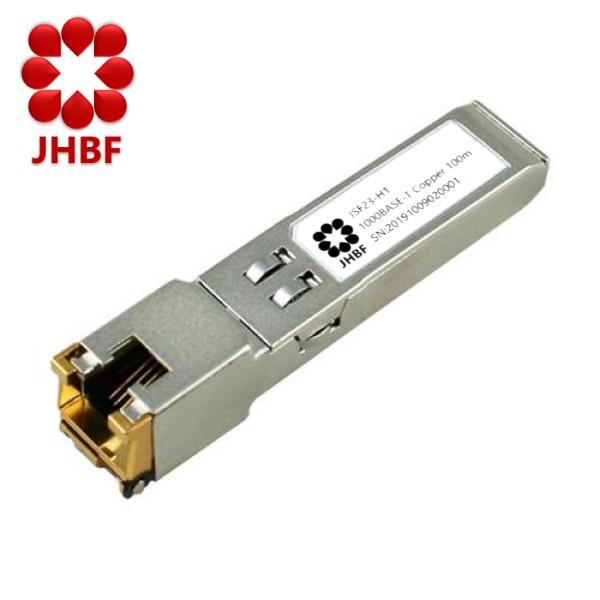

1000BASE-T Copper SFP Series Transceiver
The JHBF 1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data rate up to 100 meters over unshielded twisted-pair category 5 cable.
The JHBF 1000base-T copper SFP series transceiver is designed by all metal case which have good EMI and ESD performance. Moreover, it also complies with SFP Multi Source Agreement (MSA), which can be accessed with address of A0h via the IIC protocol. The physical IC can also be accessed via IIC at address ACh. It can be directly inserted into IP equipment of Cisco, H3C, Huawei and other manufactures. It is widely used in the network of carrier and data center.
The JHBF 1000base-T copper SFP series transceiver is designed by all metal case which have good EMI and ESD performance. Moreover, it also complies with SFP Multi Source Agreement (MSA), which can be accessed with address of A0h via the IIC protocol. The physical IC can also be accessed via IIC at address ACh. It can be directly inserted into IP equipment of Cisco, H3C, Huawei and other manufactures. It is widely used in the network of carrier and data center.
Highlights
* Support 1000BASE-T or 10/100/1000BASE-T Copper data link, comply with IEEE standard.
* Comply with SFP MSA and IEEE standard, Compatible to multi manufacturer equipment, such as switch and router of Cisco,
Juniper, H3C, Huawei and so on.
* Fully RoHS Compliant.
* Standard RJ45 Interface.
* Fully metallic for low EMI and excellent ESD protection.
* Access to physical layer IC via 2-wire serial bus, comply with the SFF-8472 protocol.
* Extended case temperature range (0°C to +85°C )
* Comply with SFP MSA and IEEE standard, Compatible to multi manufacturer equipment, such as switch and router of Cisco,
Juniper, H3C, Huawei and so on.
* Fully RoHS Compliant.
* Standard RJ45 Interface.
* Fully metallic for low EMI and excellent ESD protection.
* Access to physical layer IC via 2-wire serial bus, comply with the SFF-8472 protocol.
* Extended case temperature range (0°C to +85°C )
Application
It can be widely used in ethernet network equipments, such as routers or switches. JHBF Copper SFP is compatible with multi manufacturer switches or routers.
Specifications
Parameter | Min. | Typ. | Max. | Unit |
Storage temperature | -40 | – | +85 | °C |
Operating temperature | 0 | – | +85 | °C |
Relative Humidity | 0 | - | 85 | % |
Supply Voltage | 3.14 | 3.3 | 3.47 | V |
Part Number | Data rate(bits/s) | Distance | SERDES/SGMII | Los Signal | Others |
JSF23-H1 | 1000M | 100m | Serdes | Yes | DDMI, RoHS |
JSFG3-H1 | 10/100/1000M | 100m | SGMII | Yes | DDMI, RoHS |
Order infomation
Part Number | Product Description |
JSF23-H1 | SFP-1000M Copper-100m-Los-RoHS |
JSFG3-H1 | SFP-10/100/1000M Copper-100m-Los-RoHS |
Certifications
