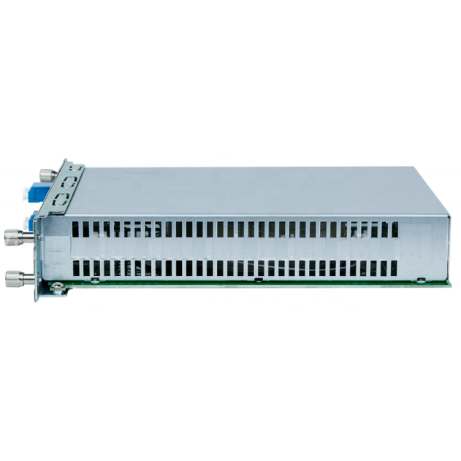

JHBF DCM series Fixed Dispersion Compensation card is a new type of single-mode fiber designed to solve the problem of fiber dispersion in high-speed and long-distance communication systems. It is used for dispersion compensation of G.652 & G.655 standard single-mode fiber. The DCM features slope compensation, which enables wideband dispersion slope compensation in the C-band for standard single-mode fiber (G.652), which optimizes system residual dispersion. It is based on a proven and reliable fiber optic
process that enhances the performance of optical transmission systems with a dispersion range of -10 to -2100 ps/nm at 1550 nm wavelength, and can provide products with special requirements for central wavelength and dispersion.

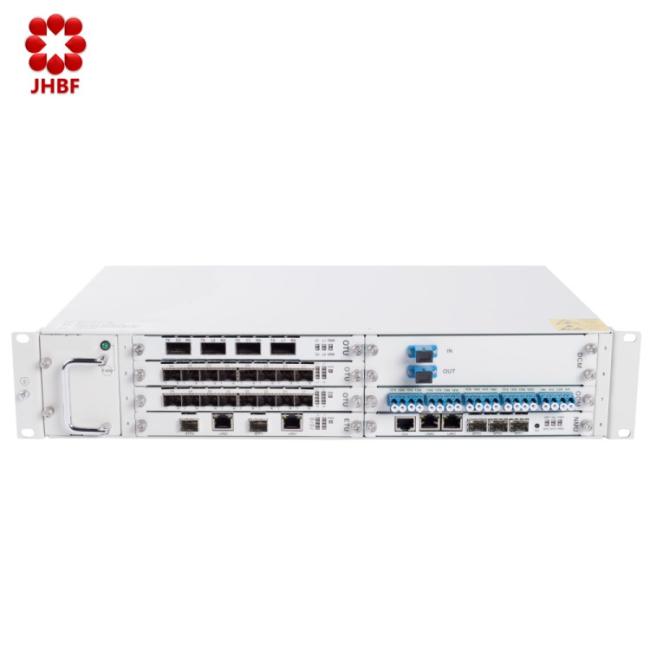

It can be inserted into our JWM1900 chassis platform, 1U, 2U, 4U for different application.
1550nm EDFA with DCF Fiber Optic DCM 80km Low Insertion Loss Power Consumption
Price:
$840.00/pieces 1-9 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JHBF
Product Description
Products Description
Dispersion Compensation module (DCM)
Features
* Low insertion loss, low polarization mode dispersion.
* Broadband dispersion compensation for DWDM systems.
* 652 fiber C-band 100% slope compensation (standard value).
* Performance index had passed Telcordia GR-2854-CORE.
* Reliability had passed Telcordia GR-2854-CORE.
* Different packaging styles, connector types and jumper lengths are available.
* Broadband dispersion compensation for DWDM systems.
* 652 fiber C-band 100% slope compensation (standard value).
* Performance index had passed Telcordia GR-2854-CORE.
* Reliability had passed Telcordia GR-2854-CORE.
* Different packaging styles, connector types and jumper lengths are available.
Applications
Specifications
|
Parameter
|
Technical Index
|
|
|
|
|
|
|||||
|
Dispersion compensator @1545nm (Ps/nm)
|
20Km
|
40Km
|
60Km
|
80Km
|
100Km
|
|
|||||
|
|
-340±20
|
-670±20
|
-1000±20
|
-1340±20
|
-1680±20
|
|
|||||
|
Relative dispersion @1545nm (Nm-1)
|
0.0036±20 % (general), 0.0036±10 %(senior).
|
|
|
|
|
|
|||||
|
Insertion loss@1525-1565nm(dB)
|
≤3
|
≤4.8
|
≤6
|
≤7.6
|
≤8.8
|
|
|||||
|
Insertion loss (typical)@1525-1565nm(dB)
|
≤2.8
|
≤4.4
|
≤5.8
|
≤7.2
|
≤8.4
|
|
|||||
|
Polarization mode dispersion(ps)
|
≤0.7
|
≤0.8
|
≤0.9
|
≤1.0
|
≤1.1
|
|
|||||
|
Polarization mode dispersion (typical)(ps)
|
0.2
|
0.3
|
0.4
|
0.5
|
0.6
|
|
|||||
|
Polarization dependent loss(dB)
|
≤0.1
|
|
|
|
|
|
|||||
|
Brillouin scattering threshold(dBm)
|
Minimum value: 6.
|
|
|
|
|
|
|||||
|
Nonlinear system(n2/Aeff)
|
Maximum value: 1.4*10-9.
|
|
|
|
|
|
|||||
|
Effective area(Aeff)
|
Minimum value: 20.
|
|
|
|
|
|
|||||
|
Working temperature
|
-10℃ ~ 70℃.
|
|
|
|
|
|
|||||
|
Storage temperature
|
-40℃ ~ 80℃.
|
|
|
|
|
|
|||||
|
Relative humidity
|
5% ~ 95% no condensation.
|
|
|
|
|
|
|||||
|
Safety and EMC
|
Compliance with FCC, UL, CE, TUV, CSA standards.
|
|
|
|
|
|
|||||
Order information
|
Platform
|
-
|
OA Type
|
Tx Power
|
Gain
|
|
JWM1900
|
-
|
BA: Booster
LA: Line PA: Pre |
