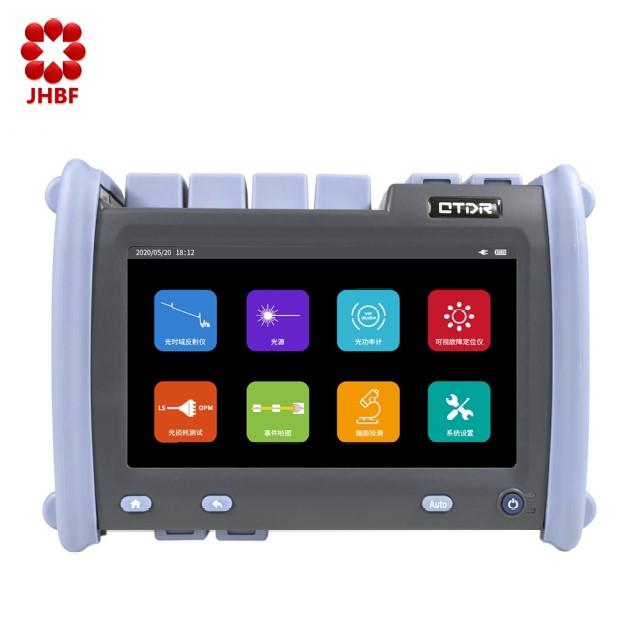

Smart Touch Screen OTDR Wavelength 850/1310/1550/1625nm Optical Communication
Price:
$960.00 - $2,680.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JHBF
Product Description
With the fast growing fiber optic network,the demand for reliable and ease-of-use field test instruments keeps increasing.JNK68
OTDR is designed to help technicians make test quickly and accurately with simple steps. It combines various function modules in
one unit, including OTDR, Optical Power Meter, stable Laser Source, Visual Fault Locator and fiber microscope (optional), all the
modules are very useful in optical fiber evaluation.
Features
* Auto/Manual testing and analysis
* Multiple analysis functions on testing results:Segment/Event point return loss, Multi curves comparison
* In-Line Measurement of PON systems through splitters
* Connector/ splice/ splitter/ macro bend/ fiber-end detection
* GR-196-CORE (.SOR) file format, Screenshot and auto-saved
* 7-inch touch screen, excellent Man-Machine interface for easy operation
* Lightweight, 1.2kg
* 4G internal storage capacity, Damp-dust-shock proof
* Multiple wavelengths selectable:850/1300/1310/1550/1490/1625/1650nm (customized)
* 10 hours continuous operation
* Short dead zone: EDZ 0.8m, ADZ 6m
* Build-in Stabilized Laser Source Module:
❖Wavelength same as the OTDR
❖High precision and easy operation
* Multiple analysis functions on testing results:Segment/Event point return loss, Multi curves comparison
* In-Line Measurement of PON systems through splitters
* Connector/ splice/ splitter/ macro bend/ fiber-end detection
* GR-196-CORE (.SOR) file format, Screenshot and auto-saved
* 7-inch touch screen, excellent Man-Machine interface for easy operation
* Lightweight, 1.2kg
* 4G internal storage capacity, Damp-dust-shock proof
* Multiple wavelengths selectable:850/1300/1310/1550/1490/1625/1650nm (customized)
* 10 hours continuous operation
* Short dead zone: EDZ 0.8m, ADZ 6m
* PCSoftware:
❖Multi traces analysis, multi traces printing in one report,
❖Batch editing and printing,
❖Bidirectional traces analysis,
❖Multi traces analysis, multi traces printing in one report,
❖Batch editing and printing,
❖Bidirectional traces analysis,
* Build-in Stabilized Laser Source Module:
❖Wavelength same as the OTDR
❖High precision and easy operation
* Build-in Optical powermeter module:
❖Multi-wavelength Calibration
❖High Precision and easy Operation
❖Multi-wavelength Calibration
❖High Precision and easy Operation
|
|
General
|
|
Display
|
7-inch TFT Touch Screen (640×480)
|
|
Connectivity
|
USB(Type A×1,Type B×1)
|
|
Storage Capacity
|
4 GB
|
|
Power Supply
|
Rechargeable Li-Ion Battery: 7.4V 5200mAh
|
|
Battery Life
|
10 hours continuous operation
|
|
Operation Temp.
|
-10°C - 50°C
|
|
Storage Temp.
|
-40°C - 70°C
|
|
Humidity
|
0 - 95% (Non-Condensing)
|
|
Weight
|
1.2kg(including battery)
|
|
Dimensions (L×W×H)
|
227×160×70mm
|
|
Pulse Width
|
SM: 3ns, 5ns, 10ns, 30ns, 50ns, 80ns,160ns, 320ns, 500ns, 1μs, 3μs, 5μs, 80μs, 10μs, 20μs
|
|
Min. Sampling Resolution
|
0.05 m
|
|
Max. Sampling Point
|
256,000
|
|
Linearity
|
≤0.05dB/dB
|
|
Loss Resolution
|
0.001dB
|
|
Distance resolution
|
0.01 m
|
|
Distance Accuracy
|
± (1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
|
|
Attenuation Accuracy
|
±0.05 dB/dB
|
|
Reflectance Accuracy
|
Single mode: ±2dB, Multi-mode: ±4dB
|
|
Connector
|
FC/UPC
|
|
OTDR Module
|
Wavelength(±20nm)
|
Dynamic Range (dB)
|
EDZ (m)
|
ADZ(m)
|
|
JNK68-S0
|
1310/1550
|
32/30
|
0.8
|
6
|
|
JNK68-S1
|
1310/1550
|
35/33
|
0.8
|
6
|
|
JNK68-S2
|
1310/1550
|
38/36
|
0.8
|
6
|
|
JNK68-S3
|
1310/1550
|
42/40
|
0.8
|
6
|
|
JNK68-T1
|
1310/1490/1550
|
37/35/35
|
0.8
|
6
|
|
JNK68-P1
|
1625
|
38
|
0.8
|
6
|
|
JNK68-T2
|
1310/1550/1625
|
37/35/35
|
0.8
|
6
|
|
JNK68-F1
|
1310/1490/1550/1490
|
37/35/35/33
|
0.8
|
6
|
|
JNK68-M1
|
850/1300
|
28/26
|
1
|
6
|
|
JNK68-SM1
|
850/1300/1310/1550
|
28/26/35/33
|
1
|
6
|
|
Visual Fault Locator
|
|
|
|
Wavelength
|
650nm
|
|
|
Output Power
|
10mw @CW
|
|
|
Frequency
|
CW/1Hz/2Hz
|
|
|
Stabilized Laser Source Module
|
|
|
|
Wavelength
|
1310nm,1550nm
|
|
|
Output Power
|
>-5dBm
|
|
|
Frequency
|
CW/270Hz/1KHz/2KHz
|
|
|
Power Meter Module
|
|
|
|
Calibrated Wavelength
|
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
|
|
|
Measurement Range
|
B: -50dBm - +26dBm
|
|
|
Display Resolution
|
0.01dB
|
|
|
Accuracy
|
± 5%
|
|
|
PartNumber
|
Product Description
|
|
JNK68-S0
|
Horizon touch screen-1310/1550nm-32/30dB-80km-OTDR
|
|
JNK68-S3
|
Horizon touch screen-1310/1550nm-42/40dB-145km-OTDR
|
|
JNK68-F1
|
Horizon touch screen-1310/1490/1550/1625nm-37/35/35/33dB-100km-OTDR
|
|
JNK68-SM1
|
Horizon touch screen-850/1300/1310/1550nm-28/26/35/33dB-100km-OTDR
|
