Automatic Puffed Food Maker Corn Snacks Extrusion Making Machine Inflating Cereals Puffs Extruder Processing Line

1.puffed core filling food machine / Cereals Puffs Extruder Processing Line Main Features:

2. Raw materials: Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.

For filling: cream, chocolate, fruit paste, date paste, jelly, etc.



3. Products:

mixer→screw conveyor→twin screw extruder→cuttermachine→hoister→dryer→hoister→

flavoring drum and oil sprayer→cooling machine→packing machine

4.Small snack making machine Advantages

 1.The material of the screw is 38CrMoAl alloy steel, after the special craft processing, wear resistance, fatigue resistance, long service life.



2.Barrel use the infrared heating circle of stainless steel. The temperature of each heating zone can be adjusted independently.



3.Double screw has self-cleaning function. Restart to replace material without removing the barrel and screw to clean.



4.Double screw is widely suitable for different raw material.like corn powder,rice powder,wheat flour and so on which can make full-puffed non-fried snack food or fried snacks food.



5.The extruder consist of feeding system, extruding system, cutting system, heating system, driving system and control system.



5.Technical Parameter

Model	SLG65-III	SLG70-III	SLG85-III
Install Power	76KW	95kw	178kw
Power Consumption	54KW	66kw	125kw
Capacity	120-150KG/H	240-260kg/h	300-500kg/h
Dimension	17×2×2.5m	22×2×2.5m	26×2×3.5m



6.Main equipment of Small snack making machine:

	Mixer To mix the raw materials evenly, fast speed, no leakage. Type: Vertical and horizontal type Motor: 3kw, 4kw, 7.5kw etc. Material: stainless steel, carbon steel
	Extruder To extrude the raw materials and make them to the required shape and size of the puff snacks food by mould. Model: SLG65, 70, 85 Capacity: 100kg/h to 500kg/h Material: Screw materials 38CrMoAlstainless steel, carbon steel
	Dryer Baking puff snacks food. Type: electrical, steam, gas fired, diesel fired heating type Model: KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 Capacity: 100kg/h to 10 ton/h Material: stainless steel, carbon steel

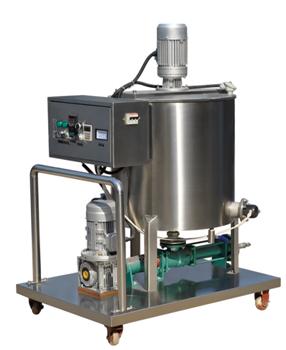

	Name:core filling machine Usage:The colloidal core material is heated, insulated and stirred evenly.The screw pump will inject the core material continuously and evenly into the bulging shell. Motor:1.5kw Capacity:100kg/h to 500kg/h Material:stainless steel
	Flavoring roller To mix the oil and flavors on the surface of the snacks food. Type: single and double flavoring drum Motor: 0.75kw Capacity: 100kg/h to 500 kg/h Material: stainless steel

* Provide the professional advice about the market, equipment, process, material, packing, etc.
* Assist you to choose equipment, design process flow, and perfect workshop layout. If needed, we can supply service      in your factory.
* Make compensate plan to the material change according to your product, and perform the production at site.
* Specially design and manufacture machine, practice test, and provide relevant training as customer required.
* Provide reasonable packing and transportation plan, send technician to install, debug machine and train your workers.
* Two years guaranty time, preferentially supply spare parts.
* Design and process similar type of spare parts of import equipment.

 Jinan FLD Machinery Co., Ltd.is a leading manufacturer for snack food extruder. We have many years' experience of making extruder machines and providing special customize service.

It is covering mainly machinery and equipment for corn filling processing line, corn flakes/breakfast cereal processing line , baby food processing line, puff snacks processing line, 3d pellets processing line, nutrition rice processing line, textured soy protein processing line, as well as pet food/fish food processing line.

 Q: How long is your delivery time?

 A: Generally speaking, it is 7 days if the machines are in stock. Or it is 25 days if the

goods are out of stock.
Q: Could you supply all the parameters about the machines?
A: Of couse. We are delighted to supply all the informtion that you want to know.

Q: How about the after sale service?
A:  We will send our engineers to your factory for installation and training.

Contact with us:

If you have any questions about Puff Snack Machine Corn Snack Making Machine, don't hesitate to contact with us.
