Fried Instant Noodles Making Precessing Machine Production Line

1.Brief introduce of Fried Instant Noodles Making Precessing Machine Production Line:

2.Technical Parameters :

Model	FBM-E	FBM-S
Installed power	154kw	4.2kw
Power consumption	60kw	10kw
Production capacity	8000-11000pcs/8h	8000-11000cps/8h
Diemension	23*1.5*1.8m	23*1.6*1.8m

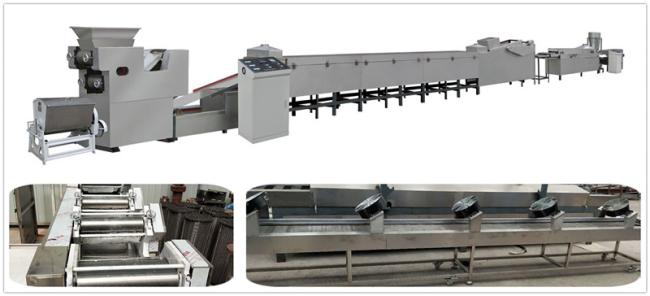

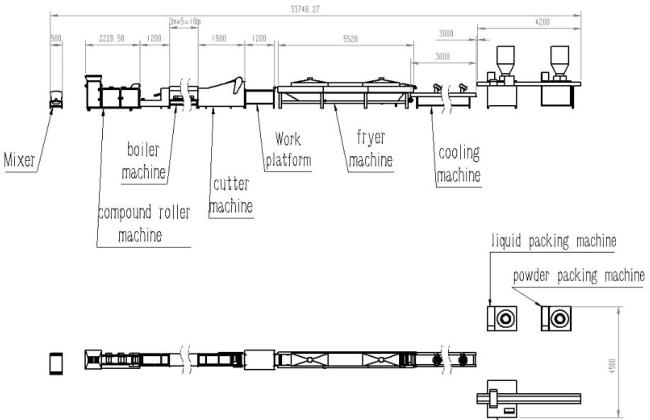

Dough maker-----Roller pressing Machine-----Boling machine-----Cutting machine-----Cartoning machine------Drying machine----Cooling machine----Packing Machine

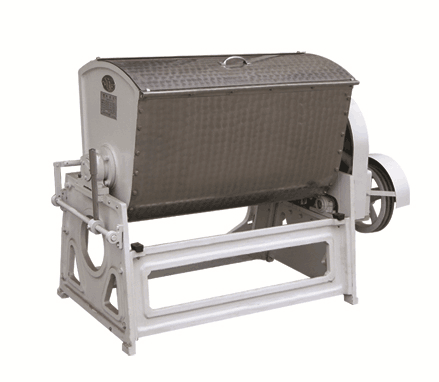

	1. Mixer / Dough maker The main function of Flour Mixer is to mix flour, salt, alkali, water and other additives evenly, this is the first step of instant noodle producing. Technical parameter: Power: 3 KW Capacity: 50 kg/time Dimension:1100×650×800 mm

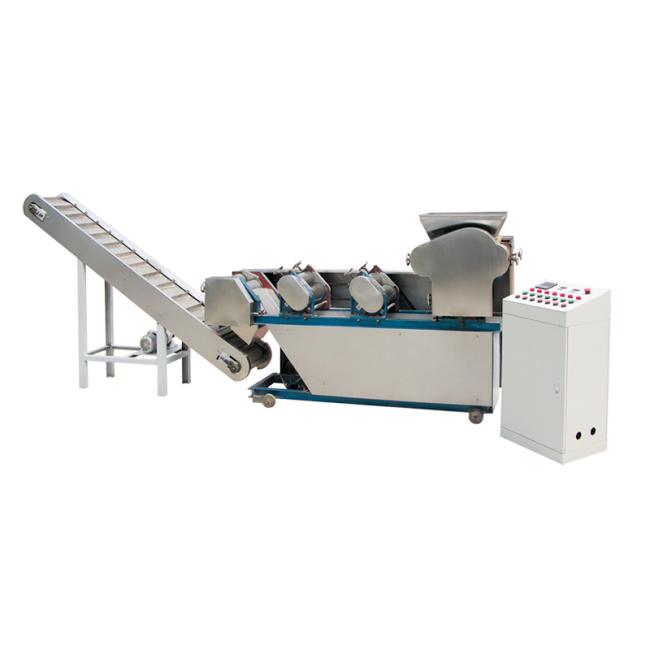

	2. Double pressing shaper 1.  This equipment consists of five pairs of down rollers and wave formers. 2. Function: press the mixed raw material to belt shape, and roller pressing the belt make it thinner, at last a cutting knife will cut it to strips and the wave former will make wave shape on each strip. 3.  The speed of this equipment is adjusted by a transducer which is easy to control and operate.
	3. Boiling Machine 1. This equipment consists of body frame, boiling cases, conveying belt and steam pipelines. 2. Wave shaped noodle strips will be cooked by the steam when it goes through the case and it will have the strength and transparency characteristic after boiling. 3. The speed is adjustable which can be compatible with the Pressing shaper
	4. Auto pucker and cutting machine 1. This equipment consists of cutting knife, folding part, conveying net, machine frame and driving part. 2. The main function: Cutting the noodles in a certain length, different length means different weight, after the automaticlly folding process the noodle pieces will be putted into the fried container more easily.

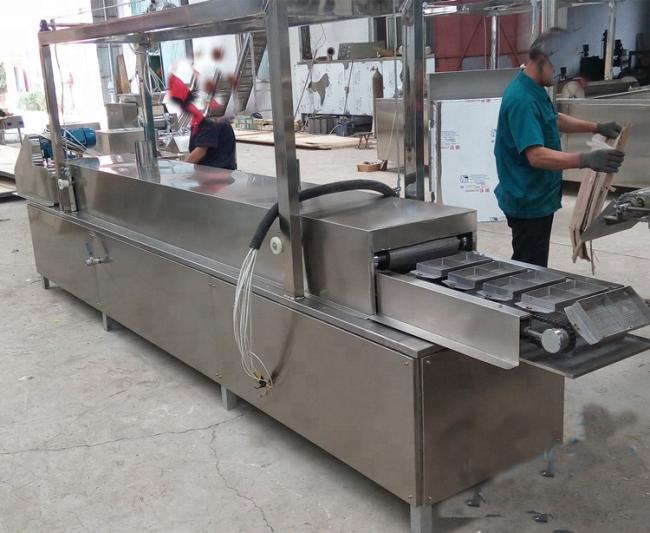

	Fryer Power;64kw Output:70-100kg/h Size:6000*870*26000mm Function:To fry the instant noodle

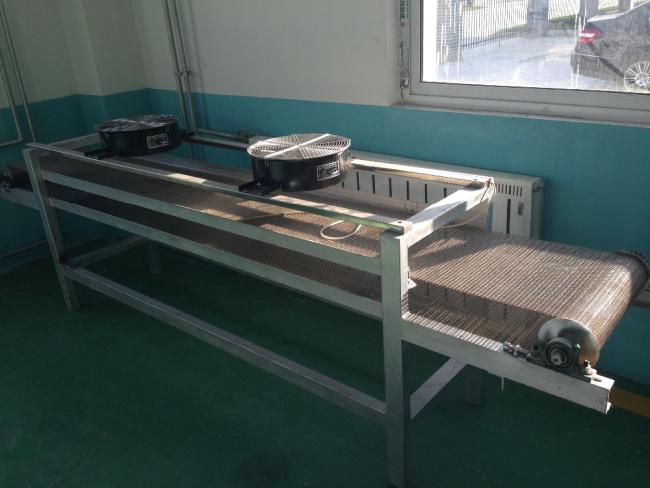

	Cooling machine Power:0.77kw Output:70-100kg/h Size: 6000*700*800mm Function: Have a cool the noodle

Each machine is carefully packed. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom. With this kind machine, all our laser machine can protect well during long trip by sea or by train.

Pre-Sales Services
1 We can provide the customized services according our customers’ needs.
2 We can provide online consulting services whenever and whatever possible.
3 We can provide the testing machine services according our customer’s demands.
4 We can provide the designed drawing about equipment layout and other details.
5 We are welcome our customer can visit our factory and give the most detailed introduction.
6 We can scrupulously check the machine before delivery.
7 We can provide the installed/operation/services maintenance manual in English version.
8 We can inform you the products processing before delivery.
9 We can provide 1 year complete warranty and life-time maintenance service.

After-Sale Services
1 We will sent more than 2 years experience engineer to provide on-site free installation, commissioning and training services to
offer the buyer technical support.
2 We will provide free training of equipment maintenance and operating personally.
3 We will provide the formulas and clean and maintenance technical support.
4 We can provide online video services to provide help if have something urgent.
5 All spare parts and wearing parts are attached with the machinery for free.
2 We will provide free training of equipment maintenance and operating personally.
3 We will provide the formulas and clean and maintenance technical support.
4 We can provide online video services to provide help if have something urgent.
5 All spare parts and wearing parts are attached with the machinery for free.

 Jinan FLD Machinery & Equipment Co., Ltd. is a high and new technology enterprise integrating technology, manufacture and trade. We have devoted ourselves to developing, manufacturing and trading double/single screw extruders, snack production lines, breakfast cereal/corn flake production lines, soya meat production lines, pasta/macaroni production lines, pet food production lines, etc. for more than 10 years.

If you have any questions with our instant noodle making machine, please feel free to contact with us.
