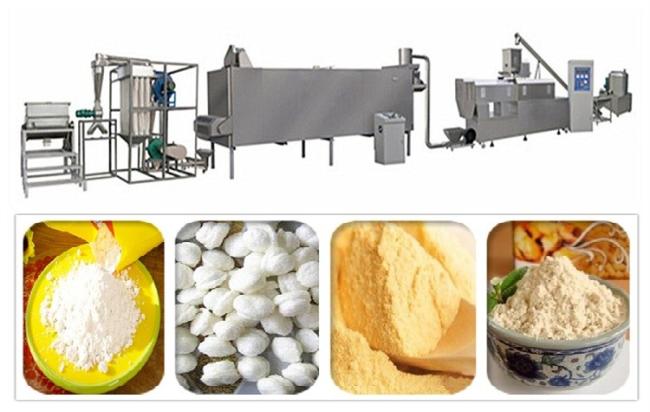

Nutritional cereals rice powder baby food processing equipment making machine

1).Baby food rice powder making machine adopt the technology of occident equipments.

2).They have many characteristics such as high automation, good stability, easy operation, large output and short time etc. what is more, it has improved the technology which avoid some of the traditional abuse.It can process various materials, widely applied in many industries: baby rice powder, sesame paste, and nut paste food etc.

3).This nutritional rice powder processing line is a new generation and high efficiency line.

4).Machine Parameter

Model	SLG65	SLG70	SLG85
Installed Power	77KW	108KW	150KW
Power Consumption	50KW	75KW	100KW
Capacity	120-150KG/H	220-260KG/H	300-500KG/H

5) Whole line detail Image

	Mixer Dimension(m): 1.1×0.8×1.4 Motor Power: 4KW Speed: 400rpm Throughput: 30kg per loading (5-6 minutes per loading) Functions:Mix powder raw material with water Features: 1. stainless steel material(1.5mm). 2. new handle-opened design of discharge holes,no material leak 3.High speed can mix material better than other slow mixer..
	Screw Conveyor Dimension(m): 3.2×0.6×0.7 Motor Power: 1.1KW Screw speed: 300rpm convey height range:1.5~2.5M barrel diameter: Φ141mm Function: Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution;
	Twin-screw Extruder Dimension(m): 2.6×1.0×1.3 Total power: 37kw Main Motor Power:22KW Feeder motor:0.75kw Cutting motor: 1.5kw Heating power:10kw Extruder diameter:Φ65 mm Function:Extrude and cook raw material into different size and shapes Features: Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different Shapes product.

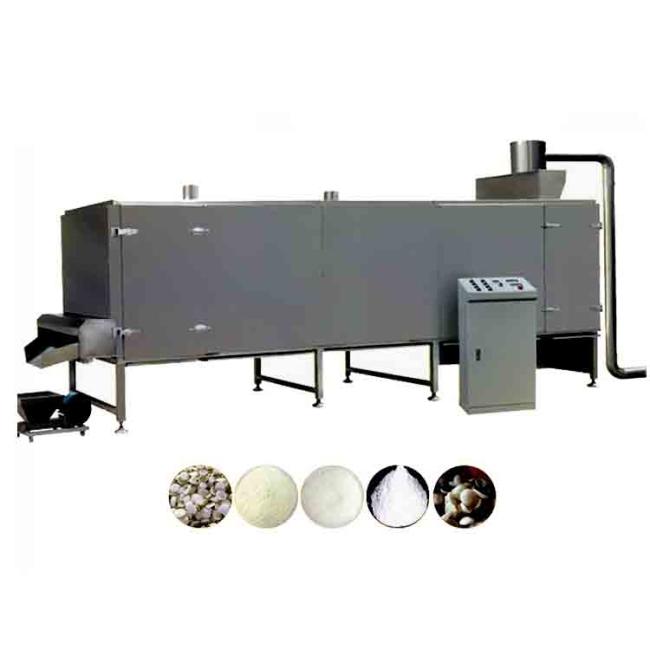

	Dryer Dimension(m): 5.4×1.3×1.8 Heating Power:27kw Motor power:0.75kw Belt speed:0.1-10M/minute Temperature: 20-200℃ Function:There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food. Features: The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heat tube. It has automatic temperature Control system. The belt and the cover are all stainless steel.

 Our services:

1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.

2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans.

3. After-sale services:
Provide considerate services to minimize clients' worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanging.

 Jinan FLD Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is:  "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.

We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the clients specific requirement, we also design and produce the machines to order. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.

Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven,  packaging machines, rice cake machine etc... Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
