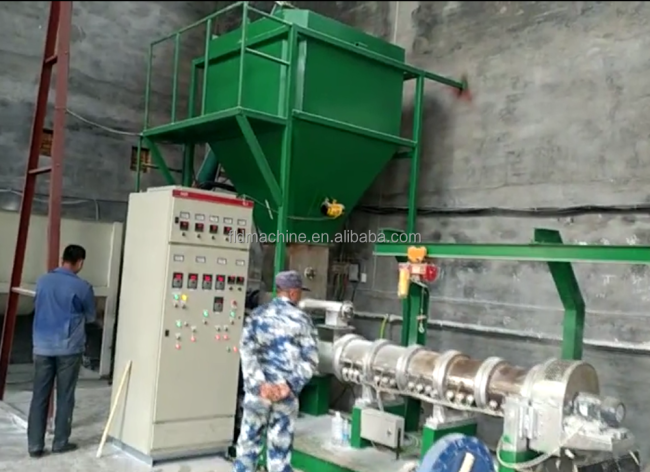

Twin Screw Automatic Modified Cassava Potato Tapioca Corn Starch Extruder Making Machine

1. Twin Screw Automatic Modified Cassava Potato Tapioca Corn Starch Extruder Making Machine Description:

Modified starch extrusion line is also called modified starch extruder making machine, compared to other machines, they have many good advantages:

• Modifed starch extruder machine has removeable cutting mechanism, so machine can be operated quickly and accurately.
• Modified starch extruder machine has 2 screws
• Modified starch extruder machine main parts are made from the best quality materaisl and they adopt quenching treatment technology to make sure long service life span of the machines.
• Modified starch extruder machine screws have self cleaning functions to save labours.
• Modified starch extruder machine are processed with high processing presion and have a long using longvity.

2.Jinan Most popular Modified starch making machine Flow chart:

Mixing system---Extrusion system----Drying system----Milling system---Mixing system---Packing system.

	Name: high speed mixer  Dimension(m): 1.1×0.8×1.4          Motor Power: 4KW Speed: 400rpm Throughput: 30kg per loading (5-6 minutes per loading) Functions:Mix powder raw material with water Features: 1. stainless steel material 2. new handle-opened design of discharge holes,no material leak 3.High speed can mix material better than other slow mixer.
	Name: screw conveyor Dimension(m): 3.2×0.6×0.7   Motor Power: 1.1KW Screw speed: 300rpm         convey height range:1.5~2.5M barrel diameter: Φ141mm Function:Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable. Features:stainless steel material.
	Name: high speed mixer  Dimension(m): 2.6×1.0×1.3           Total power: 35kw Main Motor Power:22KW                 Feeder motor:0.75kw Cutting motor: 1.5kw                     Heating power:12kw Extruder diameter:Φ65 mm Features:Screw material is 38CrMoAl with nitriding treatment, thehardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different Shapes product.
	Name: multi-layer dryer  Dimension(m): 5.4×1.3×1.8 Heating Power:27kw                Motor power:0.75kw Belt speed:0.1-10M/minute      Temperature: 20-200℃ Features: The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heat tube. It has automatic temperature Control system. The belt and the cover are all stainless steel.

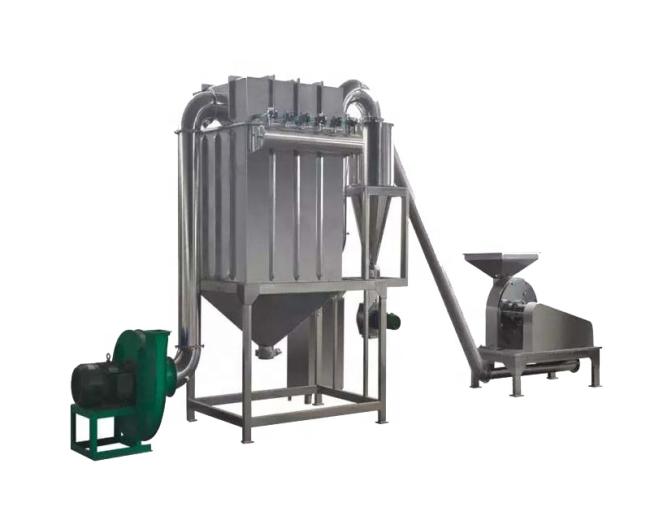

	Name: milling machine Dimension(m): 4.5×1.5×3.5 Motor Power: 11KW Functions:Mill the puffed product into powder Features:Low energy-consumption, high efficiency. Stainless Steel.

 Product Sample:

 1. Consultation service before, during, and after sales;

2. Project planning and design services;

3. Debugging of equipment until everything is functional;

4. Management of equipment's' long distance shipping;

5. Training of equipment maintenance and operating personally;

6. New production techniques and formulas;

7. Provide 1 year complete warranty and lifetime maintenance service.

1).packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.

 Jinan FLD Machinery Co., Ltd. is a leading supplier of high quality Twin Screw Extruders and other food processing lines. We are located in Jinan city, the Capital of Shandong Province.

We have ten years' experience of working with our customers providing specialist designs and practical solutions for a wide range of process needs. We can improve client's equipment and provide related training on new advanced technique.

We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.

1.What’s your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering
2. What’s your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?

We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.

 If you have any needs or enquiries, please feel free to contact me! Thanks.
