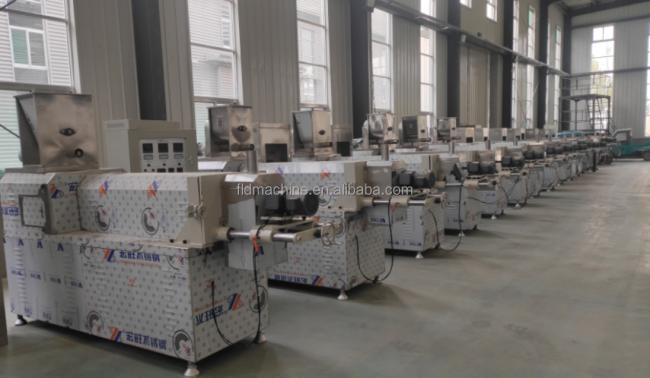

Automatic lecithin Dog Fish pet cat food making Production snacks machine

1.Description of Automatic lecithin Dog Fish pet cat food making Production snacks machine:

1).Our dry dog food making machine  adopt international advanced technology, the pellets size are very even.

2).we can adjust the cutter speed and the dies to get the different diameter and the length product

3).The Electric heating device system can control the temperature accurately

4).High temperature and high pressure can kill the salmonellosis andbacterial infections.

5).This Pet food extruder machine line can produce high-protein dog food.

6).This Pet food extruder machine line only need three workers

1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder

2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by

Changing the Dies and Formulations.

3.China Wet Pet caned dog chews food pellet extrusion production line machine supplier  Capacity: 120-150 KG/H,200-250 KG/H,400-500 KG/H,800-1000 KG/H.

4.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to

 customers' local voltage according to different countries.

6.Technical Parameter of Pet food extruder machine line:



	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm
	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel
	Twin screw extruder Application:To make the raw materials  into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel
	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel
	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel
	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel
	Cooling equipment Application:used to cool the final pet food and transfer pet food  to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

Inside: Plastic bags for the whole production line. Outside: Wooden case for the equipment.(According to our customer's demands.)

Jinan FLD Machinery Co,.Ltd is a leading manufacturer for snack food extruder. We have many years' experience of making extruder machines and providing special customize service.We can provide customers with personalized equipment or complete plant layout and production lines to meet customer needs.

1).Provide factory layout according to your factory size in advance;
2).Provide the basic formula;
3).Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4).Technician will work with your workers together and teach your workers how to install machines,
    how to operate machines, how to maintain machines during daily working;
5).Our engineers will teach your workers how to clean the extruder, how to change the screw,
   how to change barrel etc, and provide technology support with you forever;
6).Provide English Version of Installation / Operation / Service / Maintenance Manual.

1. Q: How about the after-service about Dog food maker machine?
    A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

2. Q:do you supply any formula to buyer?
    A: yes, we supply formulas to buyer.

3.Q:Do you supply Inflated kibble Dog food maker machine?

   A: We have long-term cooperation packing machine supplier, we will help to contact them.
