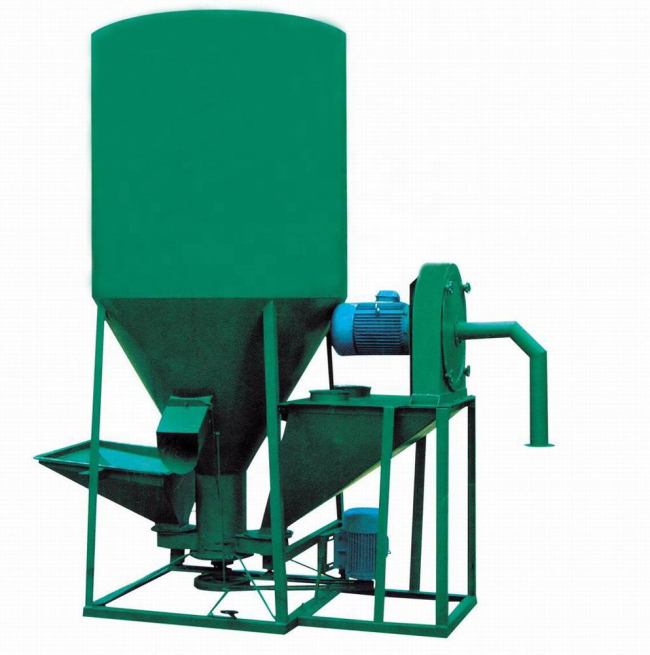

Animal feed grinder and mixer
FLD series vertical feed mixers, mainly 500, 750, 1000, 1500, 2000, are divided into self-priming and auger lifting. This is a small-scale feed processing equipment designed for rural farmers, small-scale farms, small and medium-sized feed mills. It integrates vertical lifting, mixing bins and horizontal conveying. It has a simple and compact structure, one-time small investment, economical and practical, and maintenance. Convenient, no special production site is required.
Technical Parameters:
| Model | Mixer power (KW) | Material and thickness | Grinder power (KW) | Crushing chamber diameter | Material and thickness | Size(mm) | Output(T/H) | Weight(KG) |
| HL-250 | 3 | Q235/1.8mm | 7.5 | 530 | Q235/2.75mm | 1600*800*1950 | 0.4-0.8 | 260 |
| HL-250 (Single phase electric) | 3 | Q235/1.8mm | 3 | 400 | Q235/2.75mm | 1580*800*1950 | 0.3-0.5 | 240 |
| HL-500 | 3 | Q235/1.8mm | 7.5~11 | 530 | Q235/2.75mm | 1800*1000*2300 | 0.5-1.5 | 280/340 |
| HL-500 (Single phase electric) | 3 | Q235/1.8mm | 3 | 400 | Q235/2.75mm | 1780*1000*2300 | 0.3-0.6 | 270 |
| HL-1000 | 3 | Q235/1.8mm | 7.5~11 | 530 | Q235/2.75mm | 2050*1250*2750 | 1.0-2.0 | 360/400/420 |
| HL-1500 | 4 | Q235/1.8mm | 11~15 | 530 | Q235/2.75mm | 2250*1450*2900 | 1.5-2.5 | 480/520/540 |
| HL-2000 | 4 | Q235/2.35mm | 11~15 | 530 | Q235/2.75mm | 2500*1700*3100 | 1.5-3.0 | 560/580 |
| HL-3000 | 5.5 | Q235/2.35mm | 15 | 530 | Q235/2.75mm | 2600*1800*3600 | 2.0-3.5 | 650 |
Working principle:
The feed grinding machine shell is welded with high quality material, and the feeding port is on the top of the mill. It can be matched with various forms of feed structure, and the hammer is arranged symmetrically. When the feed mixer works, the material enters the crushing chamber, and the material is gradually crushed and centrifuged under the action of high speed rotating hammer blow and sieve plate friction. Under the action of force and air flow, it is discharged through the bottom outlet.
