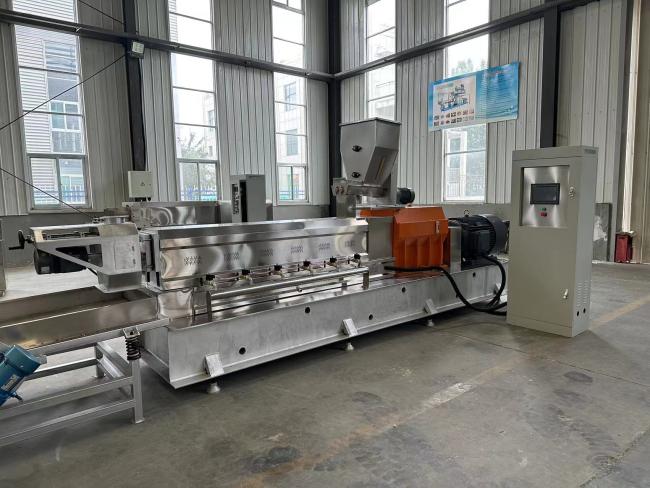

Automatic FRK Production Line Fortified Rice Making Machine nutritional rice extruder machine

1.The material is extruded into rice shape by the Fortified rice production line, and dried in a rotary dryer to needed moisture content. The extruding technique makes it possible to strengthen and solidify the micronutrient in the rice. This artificial rice can be mixed with natural rice prior to cooking as usual. When cooking is finished, its grains are not broken and there is no difference between the artificial rice and the natural one in viscosity, elasticity and taste.

2.Raw materials: adopts broken rice rice, corn, millet, wheat, oats, buckwheat, bean, starch as main ingredient, and some other vitamin and mineral as part of ingredient.

3.Automatic FRK Production Line Fortified Rice Making Machine Capacity: find attached form.

4.Fortified rice production line Flow chart: Mixing system---Extrusion system----Drying system----Flavoring system---Packing system.

5.Voltage: in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.

6.Fortified rice production line materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

	Name: high speed mixer  Dimension(m): 1.1×0.8×1.4 Motor Power: 4KW Speed: 400rpm Throughput: 30kg per loading (5-6 minutes per loading) Functions: mix raw powder material with water Features: 1. stainless steel material(1.5mm). 2. new handle-opened design of discharge holes,no material leak 3.High speed can mix material better than other slow mixer.
Name: screw conveyor Dimension(m): 3.2×0.6×0.7 Motor Power: 1.1KW Screw speed: 300rpm convey height range: 1.5~2.5M barrel diameter: Φ160mm Function: Power material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution.
	Name: twin screw extruder Dimension(m): 2.6×1.0×1.3 Main Motor Power:45KW Feeder motor:0.75kw Cutting motor: 1.5kw Heating power:10kw Extruder diameter:Φ70 mm Function: Extrude and cook raw material into different size and shapes Features: Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different shapes product.
	Name: multi-layer dryer  Dimension(m): 8.4×1.3×1.8 Heating Power:60kw Motor power:0.75kw Belt speed:0.1-10M/minute Temperature: 20-200℃ Function: There are Five layer inside,each layer is 8 meters long, it can save space and energy. Electricity heating,used to bake and dry food. Features:The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heating. It has automatic temperature Control system.The belt and the cover are all stainless steel.
	Cooling Machine(LQ-I) Installed Powder: 1.23kw Powder Consumption:1kw Material: Stainless steel Weight:100kg Fans: 0.12kw Dimension: 5300*690*1470mm Cooling the materials more evenly.

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.

Transportation:
Shipping, express, or upon clients' demands.

 Jinan FLD Machine Co.,ltd is a professional Manufacturer specializing in researching and producing Extrusionmachinery,Industrial microwave drying and sterilizing equipment and related ancillary equipment.The Company is located in Jinan,the spring city of Shandong. With the strong design strength,advanced producing technology and rich manufacturing experience,the company`s products get good comments from domestic and abroad customers.

Our main products include machinery and equipment for pasta system, corn flakes system, breakfast cereal system, baby food system,corn puff snacks system, fried pellets system, fortified nutrition rice system,soy nuggets system, pet food system , fish feed system , various type drying oven system, corn meal milling system etc.
