500 kg/h Artificial Fortified Rice Making Processing Machine for Manufacturing Plant

 1.Hot Selling New Type 500 kg/h Artificial Fortified Rice Making Processing Machine:

     Artificial rice refers to starch-like raw materials added with various nutrient fortification substances, artificially granulated, gelatinized, and dried to make granules similar to natural rice. The artificial rice is mixed with rice at a ratio of 1: 200 ~ 300, so that the nutritional value of the cooked rice after mixing is significantly better than that of ordinary rice.Various vitamins, trace elements and proteins are added to solve the health problems caused by the lack of vitamins in the public. Ordinary grains will cause a lot of nutrient loss during the processing. Fortified vitamin B group and iron and other trace elements supplement or enrich the nutrients in rice, increase the deficiency of nutrients in food, and meet the requirements of nutrition and energy supply. Human nutrition is balanced, preventing disease and promoting health, and improving quality of life. Therefore, engineering rice is the most ideal new staple food in modern people's lives.

2.Raw materials: adopts broken rice rice, corn, millet, wheat, oats, buckwheat, bean, starch as main ingredient, and some other vitamin and mineral as part of ingredient.

3.Fortified Rice making machine Capacity: find attached form.

4.Hot Selling New Type 500 kg/h Artificial Fortified Rice Making Processing Machine Flow chart: Mixing system---Extrusion system----Drying system----Flavoring system---Packing system.

5.Twin screw extruder machine features:

A. High quality Twin-screw extruder, ideal equipment for snacks&rice.

B. All machines are made of stainless steel, healthy and sanitary.

C. Different shapes are made by adjusting the dies from extruder.

D. Technical support: we provide line design, factory design, installation, commissioning etc.

	Mixer 1.main motor :4.0kw 2.size: 1.2*0.9*1.4m 3.Output: 3.0kg-4.0kg/time Functions: Mixer makes the raw material which adding water and liquid chemical additive fully mixer equally . The machine mixers the flour and prepares them ready to be used in the next step .
Name: screw conveyor Dimension(m): 3.2×0.6×0.7 Motor Power: 1.1KW Screw speed: 300rpm convey height range: 1.5~2.5M barrel diameter: Φ160mm Function: Power material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution.

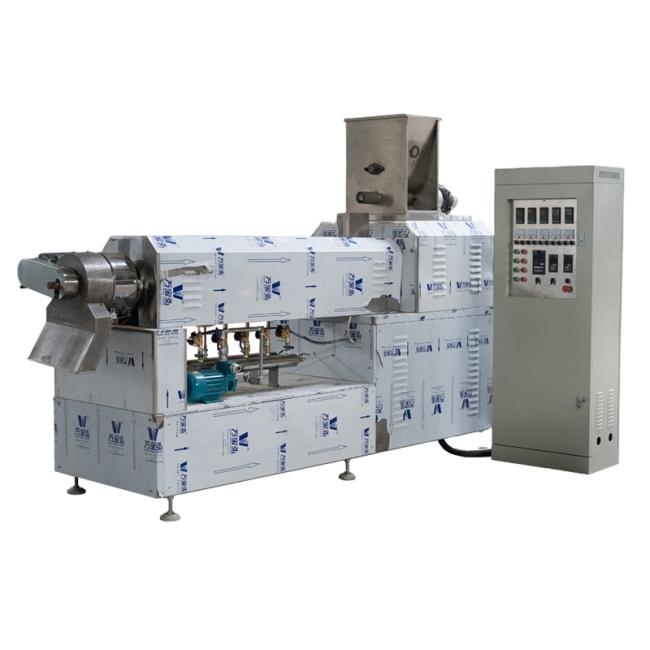

	Name: twin screw extruder Dimension(m): 2.6×1.0×1.3 Main Motor Power:45KW Feeder motor:0.75kw Cutting motor: 1.5kw Heating power:10kw Extruder diameter:Φ70 mm Function: Extrude and cook raw material into different size and shapes Features: Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different shapes product.
	Name: multi-layer dryer  Dimension(m): 8.4×1.3×1.8 Heating Power:60kw Motor power:0.75kw Belt speed:0.1-10M/minute Temperature: 20-200℃ Function: There are Five layer inside,each layer is 8 meters long, it can save space and energy. Electricity heating,used to bake and dry food. Features:The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heating. It has automatic temperature Control system.The belt and the cover are all stainless steel.
	Cooling Machine(LQ-I) Installed Powder: 1.23kw Powder Consumption:1kw Material: Stainless steel Weight:100kg Fans: 0.12kw Dimension: 5300*690*1470mm Cooling the materials more evenly.

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.

Transportation:
Shipping, express, or upon clients' demands.

1.Provide Precise design Proposal: Including Detailed Quotation List, CAD Flow Chat, Technological Index, Installation Diagram,and provide installed production line video and photos for customers reference.

2.Delivery Goods: Provide standard shipping wooden package, full set of equipments photos before and after packing goods.also, full set of shipping documets sent by post.

3.Spare Parts: Provide.

4. Installation: Engineers is available to install machine oversea.

5. Quality Guarantee Term: 12 Months.

6. After-sales service: Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
