5000 kg Capacity Fish Feed Pellet Production Line with Crushing Processing Types
Price:
$15,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
FLDMACHINE
Product Description
PRODUCT SPECIFICATION
Factory Price fish food production extruder machine floating stainless steel fish feed production line
Fish feed production line machine can be used to producing floating fish feed and sinking fish feed. The floating fish feed pellet machine can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float onwater more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.
Application: Floating & Sinking fish feed, shrimp, aquatic feed, etc.
Product Description: Aquatic feed made by our twin screw extruder machine. Rich of nutritional content and protein, floating and sinking for the fish feed and shrimp ,etc aquatic feed. By help of minerals, enrich fish growth life, ideal choice for factory.
Output: 500kg/h, 800-1000kg/h, 1000-1500kg/h, 1500-2500kg/h,3000kg/h and 5000kg/h.

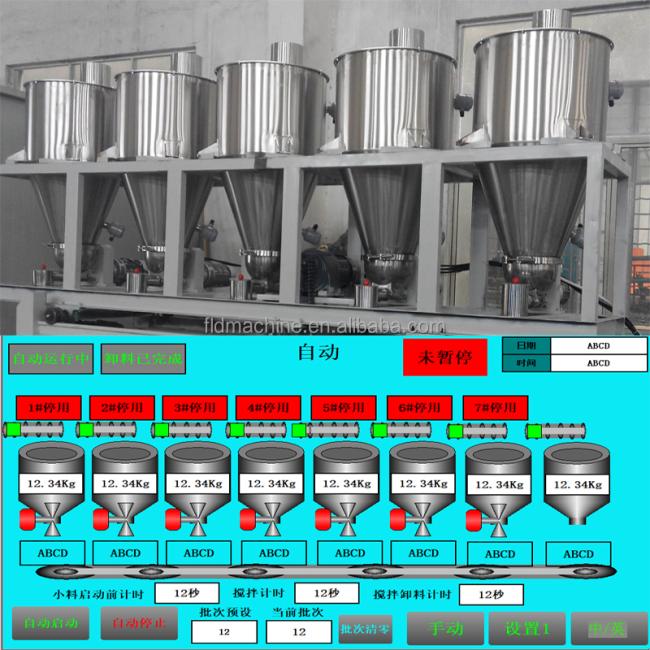

Name | Raw material dosing system |
Silos | Customisation of 1-8 silos |
Controlling panel | PLC Controlling |
Measuring method | Automatic weighing and dosing |
Interface language | Customisation ZH/EN |
Installation Way | Steel Frame or Lay in one straight line |
Name | Grinder machine |
Usage | corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can make these grain into flour. |
Motor | 7.5kw, 15kw, 22kw, 55kw, 75kw.... |
Capacity | 100kg/h to 2000kg/h |
Material | stainless steel, carbon steel |
Type | Hammer mill |
Name | Blender |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | including Single axle and double shaft mixer |
Motor | 3kw, 4kw, 7.5kw ,11.0kw,15.0kw,22.0kw.... |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |
Name | Twin screw extruder(wet type/dry type) |
Usage | To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould |
Types | FLD-SLG 65, 70, 75, 90, 95, 120, 140,160.. |
Motor | 22kw, 30kw, 55kw, 75kw, 90kw, 110kw ,132kw.... |
Capacity | 50kg/h to 6000kg/h |
Material | Screw materials 38CrMoAl stainless steel, carbon steel |
Name | Dryer-Oven |
Usage | This dryer is used to dry final pet fish feed pellet after extruder before packing. |
Types | electrical, steam, gas fired, diesel fired heating type |
Motor | KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. |
Capacity | 100kg/h to 6000kg/h |
Material | stainless steel, carbon steel |
Name | FLavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Types | single and double flavoring drum |
Motor | 0.75kw,1.5kw... |
Capacity | 100kg/h to 6000 kg/h |
Material | stainless steel |
Name | Packing machine |
Usage | To pack the fish feed with required weight |
Types | Semi-Automatic |
Capacity | 1-5kg/bag, 5-25kg/bag, 25-50kg/bag |
Material | stainless steel, carbon steel |
PRODUCT SAMPLE
PRODUCT PARAMETER
Our Advantages
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Company File
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Farming Machine for Fish Feed.
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Farming Machine for Fish Feed.
PACKAGING& SHIPPING
FAQ
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit and check the machine to my factory.
A: we are a manufacturer, welcome to visit and check the machine to my factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: How about the after-service?
A: We will send 1 engineer to the buyer’s factory for a 10-day period installation and training to the operators.
Q:do you supply any formula to buyer?
A:yes, we supply formula to buyer.
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: How about the after-service?
A: We will send 1 engineer to the buyer’s factory for a 10-day period installation and training to the operators.
Q:do you supply any formula to buyer?
A:yes, we supply formula to buyer.
