Small Dog Food Dog Inflated Kibble Small Wet Dog Food Pet Food Production Line

1.Description of Hot Sale Automatic Dry Pet Dog food making machine Feactures:

a. different combination can produce differnent products

b. various dies can produce various shapes pet food.

c. touch screen to control ,easy to operate .

d. cooling ,heating feeding flavoring system controled by touch screen

e. different extruder produce different throughout.

Products: Pet Food, Like Dog, Cat with Different Shapes and Tastes by Changing the Dies and Formulations.

Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers’ local voltage according to different countries.

Machines Materials: All the machines are made by food grade stainless steel.

Raw material:  Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder etc.

2.Technical Parameter

	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm
	Screw feeder Application:convey the    Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel

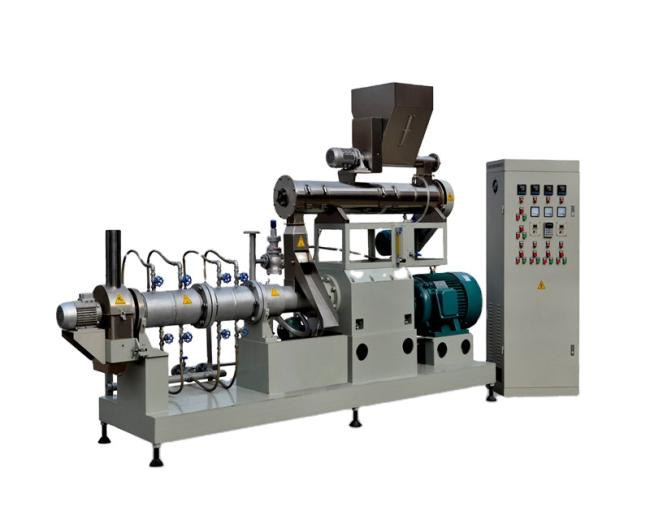

	Twin Screw Extruder Function: They extruder grain powder into pet food by high temperature and pressure.The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system. 1. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. 2. Adopting the building block structure and combining willingly according to the different demand. 3. The forced lubrication system, so that it can guarantee the equipment transmission life longer 4. Auto-temperature control system; make the temperature controlling more direct viewing and the parameter more precise. 5. Self-cleaning, when stopping, it can be cleaned without disassembling.
	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel
	1. Compact in frame, facilitated in operation, low occupation of space and high heating efficient. 2. Stainless steel is used on conveying belt, oven cover to guarantee the food safe. 3. Rock wool plates are used for heat preservation. 4. The drying time for the product can be adjusted by a frequency inverter. 5. Forced lubrication system to lengthen the bearing life. 6. Electricity heating by infrared heating pipe by electricity.
	Flavoring machine By the turning of the tumbling box, it can coat theproducts with even layer of the coating flour; Increase the quantity of the flour on the products surface. It causes the obvious scaly food surface. It is used for the massive products flouring and breading processing.
	Cooling equipment 1.The main function of cooling conveyor is to cool the products after drying.All parts are stainless steel, which meets the requirements of food safety. 2.Using fans to decrease the temperature of products with low energy and good effect. 3.The standard length is 5m, it could be customized as well.

•  Inside package is plastic film, outside is wooden or plywood case

   (based on the customers' need for dog food making machine).

•  Only plastic film nude packing with wooden pallet.

•  We can supply fumigation package and certificate.

•  Shipping, train, express or upon clients' demands.

Jinan FLD Machinery Co., Ltd. is located in Jinan city,Shandong Province.

     Factory contains Technical design, Production and assembly,Quality Inspection 3 department.All the machines will be made under advanced design,rigorous production and strict inspection.
    This factory set experiments, demonstrations, training in one.At the same time, we welcome customers all over the world come to visit us and test the machinery. Beside, we could experiment the design,machinery, formula according to customer special requirements.

      All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.

1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;

5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
