Floating fish feed mill pellet extruder machine floating feed pellet pet food extruder processing machine

Price Negotiable
Price: $3,400.00/sets 1-4 sets
MOQ: Negotiable
Delivery Time: Negotiable
Brand: FLD
Product Description
Product Description

1.Floating fish feed mill pellet extruder machine floating feed pellet pet food extruder processing machine Application:

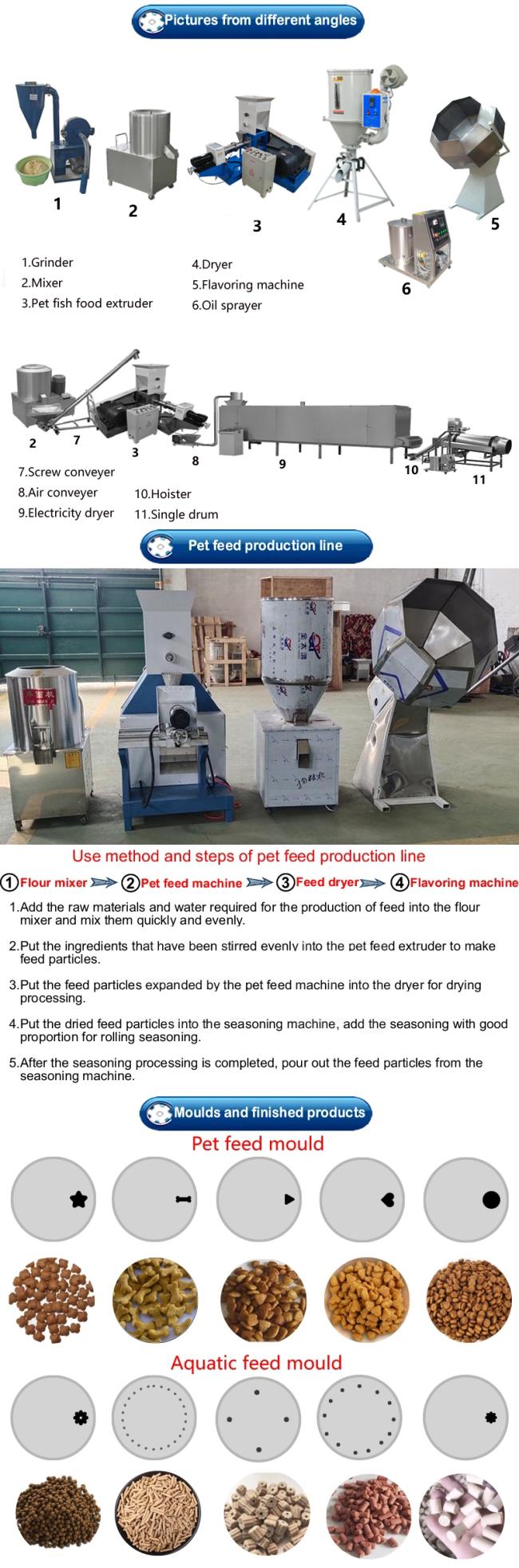

A fish food processing line is a manufacturing process that produces commercial fish food for various types of aquatic animals, including fish, shrimp, and other aquatic creatures. The process involves several steps, including ingredient mixing, extrusion, drying, and packaging. Here is an overview of the typical steps involved in a fish food processing line:



Ingredient mixing: Raw materials such as fishmeal, soybean meal, wheat flour, cornmeal, and other ingredients are mixed together in a large mixing tank to form a homogeneous blend.



Extrusion: The mixed ingredients are then fed into an extruder, which is a machine that forces the mixture through a series of small holes at high pressure and temperature. This process creates a dough-like material that is shaped into small pellets.



Drying: The pellets are then dried to remove any remaining moisture. This is typically done in a conveyor dryer, which uses hot air to remove the moisture and create a final, hard pellet.



Coating: After drying, the pellets may be coated with oil, vitamins, or other nutrients to enhance their nutritional value.



Packaging: The final step is to package the pellets into bags or containers for sale to consumers.

Floating fish feed mill pellet extruder machine floating feed pellet pet food extruder processing machine

Raw materials of Automatic floating fish feed machine:

1.Rice Dust: contain about 10-14% of protein and also contain vitamin B1, B2, B6 and small quantity of enzyme.



2.Mustard Cake: Mix maximum 40% of cake in the fish feed. But don't use dry cake more than 20%. Mustard cake contain 30-32% protein. It also contain a high rate of fat.

Floating fish feed mill pellet extruder machine floating feed pellet pet food extruder processing machine

3.Wheat Chaff: contain fiber, control many types of fish diseases.



4.Maize: contain protein, carbohydrate, fat, vitamin A and E.


5.Cotton Seeds: contain about 54% protein. It is a better ingredients for supplementary fish feed.
6.Fish Powder: easily digestible to fish. Fishmeal contain about 55-60% protein.


7.Bone Powder: very necessary for building fish-bone.


8.Innards : very suitable and ideal feed for catfish. It contain 52% protein.



2.floating fish feed making extruder machine Model:

Model

Power

Capacity

Feeding power

Cutting power

FLD40

5.5kw

30-40KG/H

0.4KW

0.4KW

FLD50

11KW

60-80KG/H

0.4KW

0.4KW

FLD60

15KW

120-150KG/H

0.4KW

0.4KW

FLD70

18.5KW

180-250KG/H

0.4KW

0.4KW

FLD80

22KW

300-350KG/H

0.4KW

0.6KW

FLD90

37KW

400-500KG/H

1.1KW

1.5KW

FLD120

55KW

500-600KG/H

1.1KW

1.5KW

3.Floating Fish Feed Mill HNHF Fish Shrimp Sinking Floating Pellet Mill Machine Fish Feed Extruder How to Work?

 There is no need to heat outside the machine, through the screw extruding of the raw material, heat is produced and gathered during the rotary working process in the airtight environment, and during the high temperature ripening process, the starch and fiber of the raw material become swell. Then under the pressure-tight condition, material will be formed into pellets by shaping mould. At the end, through the high pressure produced by the regular rotating of the screw, after being cut by the forepart cutter which rotates regularly and high-speedily, the finished products will be shrunk and become small average puffed balls in room temperature and pressure.

Floating fish feed mill pellet extruder machine floating feed pellet pet food extruder processing machine



4.Final Pellet

Round Shape and other shapes

Diameter:0.9-15mm by replace the moulds

Floating fish feed mill pellet extruder machine floating feed pellet pet food extruder processing machine

Contact us

Our Services
7x24 hour Service
Factory Can Provide Turnkey Feed Plant Project
Consultation Service → Design → Civil Engineering → Manufacturing→ Installation → Training
Customized Solutions 100% Quality Assurance Support Oversea Installation.
