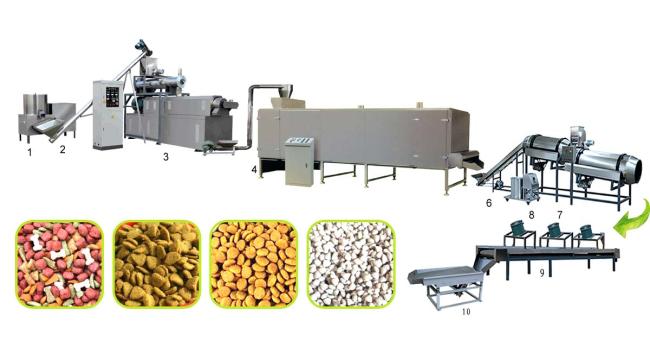

Animal feed making machine dog pet food processing machine plant
1.Animal feed making machine dog pet food processing machine plant Feactures:
1). All Dog food extruder machine are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). Jinan FLD Company provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your require)
2.Feature of Cat Bird Food Processing Extruder Wet Pet Dog Food Processing Plant:
1) It can suit various raw materials, such as corn flour, fish mill, meat mill and so on.
2) You can get various shapes of pet food, such as: rings, triangle, core filling pet food etc.
3) We not only have the basic pet food formula , but also the professional formula based on different age of dog.
4) The Dog food extruder machine performance and products quality reach to the most advanced level in the world.
5) High efficiency, low consumption, easy to operate and maintain.
3.Raw material:
Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste etc.
Or using the corn feeds, rice feeds, wheat feeds directly, then grinding. Other nutrient can be added together.
4.Technical Parameter
| Model | Main motor | Drying method | Output | Size |
| SLG65 (dry) | 22kw | Gas/electric heating | 120-150kg/h | 12000*4000*2200mm |
| SLG65 (wet) | 22kw | Steam/Electricity/gas | 150-200kg/h | 14500*4000*3200mm |
| SLG70 (dry) | 30kw | Gas/electric heating | 180-240kg/h | 13500*4000*2200mm |
| SLG70 (wet) | 22kw/37kw/45kw | Gas/electric heating | 300-400kg/h | 16500*4000*3200mm |
| SLG75-II dry | 37kw/45kw | Gas/electric heating | 250-350kg/h | 3200*1100*2200mm |
| SLG85-dry | 55-75kw | Gas/electric heating | 300-500kg/h | 25000*3000*3500mm |
| SLG90-W | 55-75kw | Gas/electric/steam heating | 600-1200kg/h | 40000*3000*6000mm |
| SLG95-W | 75-110KW | Gas/electric/steam heating | 1500-2500kg/h | 50000*3000*6000mm |
 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm |
 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |
 | Twin Screw Extruder Function:They extruder grain powder into pet food by high temperature and pressure.The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system. 1. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. |
 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
 | 1. Compact in frame, facilitated in operation, low occupation of space and high heating efficient. |
 | Flavoring machine By the turning of the tumbling box, it can coat theproducts with even layer of the coating flour; |
 | Cooling equipment 1.The main function of cooling conveyor is to cool the products after drying.All parts are stainless steel, which meets the requirements of food safety. |
Jinan FLD Machinery Co., Ltd. is located in Jinan city,Shandong Province.
Factory contains Technical design, Production and assembly,Quality Inspection 3 department.All the machines will be made under advanced design,rigorous production and strict inspection.
This factory set experiments, demonstrations, training in one.At the same time, we welcome customers all over the world come to visit us and test the machinery. Beside, we could experiment the design,machinery, formula according to customer special requirements.
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;
5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
Any question or requirement,please contact with Kevin.Werlcome here!
