85mm Screw Diameter Automatic Floating Fish Feed Pellet Extruder Machine at Competitive
1.Description of Automatic pet dog food processing machine:
- Materials :wheat/ corn flour, born powder and so on.
- Final feed: different shapes and sizes of dog food,cat food,fish food,shrim feed
- Floating feed extruder price Floating fish feed pellet machine pet food processing machines dog food machine Capacity of fish food equipment: 150kg/h, 250kg/h, 500-600kg/h
- Consumption of fish food equipment: Low electricity and labor consumption
- Design: With flexible design based on the client's demands, we provide turn key project.
- Capacity:140-160kg/h,240-260kg/h,500-600kg/h
We provide complete installation and operation manual in english for all the machines supplied by us.customer can install and operate machines using the same.If needed,we can send our technician for the installation of the machines a customer’s place on chargeable basis.
Our expert technician can install the machines and take the trial production as per the requirement of the customer.Our technician also train machine operators at the customer’s place to operate and troubleshoot all the problems so that later on they can manage everything easily without any problem.
After the installation,customer can take help from us any time in any of the following manner:
1.By calling our technician to get telephonic advice.
2.By sending mail to us to get the solution by mail. macaroni making machine
3.To chat live with our technician to get online help.
4.To invite our technician to visit customer’s place for troubleshooting,if needed.
| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 140kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400kg/h | 400-600kg/h | 1.0-2.0 T/H |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2000*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
wheat/ corn flour,rice flour,bean flour,wheat bran, fish meal, born powder, animal oil,fresh fish/meat,vegetable,fruit and so on

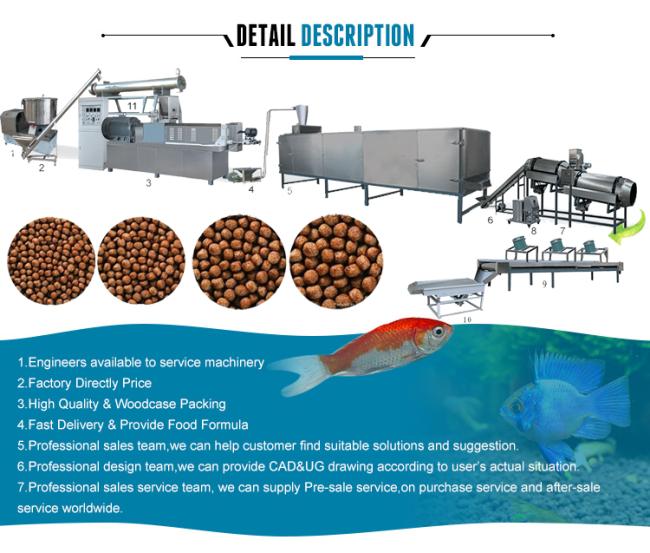

 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw |
 | Screw feeder Application:convey the Power :1.5kw Capacity:equipment with the output Dimension:4000*590mm |

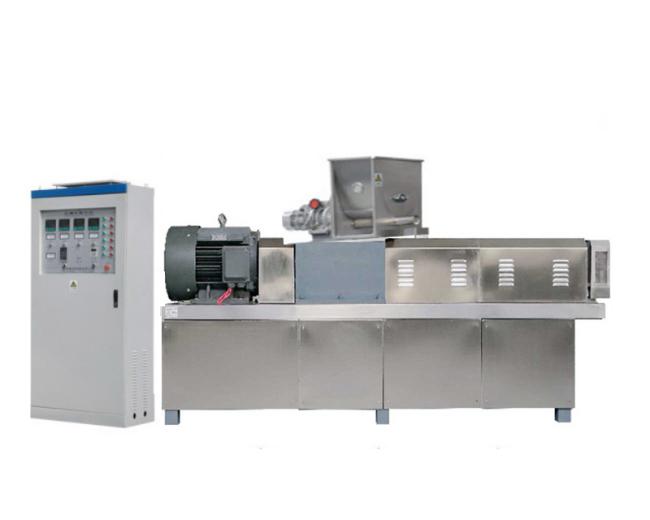

 | Steam Twin screw Fish food extruder Application:To make the raw materials into required shape and size Capacity:400-600kg/h(SLG85) Power:75kw Working Principle: It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system. |
 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
 | Dryer Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel Working Principle:The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, |
 | Flavoring machine Application:This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil. Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
 | Packaging machine Usage:To pack the fish feed with required weight Type:Automatic Flowing Process: Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing Weight range:1-5kg/bag, 5-25kg/bag, 25-50kg/bag Material:stainless steel, carbon steel |
Before order service
1.Sales manager Sunny Bu contact with you on time,supply with the company and machine information you need.
2.Technique engineers design and develop the process and equipments according to the customer's situation.
3.If necessary,technique engineers can help to make workshop design with electricity power,diesel power,gas power,water supply,raw material storage and final product storage etc.
During order service
1. We will pick you up at the airport or tain station and arrange the accommodation.
2. Invite you to visit our company and factory. Technique test the formula and machine,also take the video for customers.
After order service
1.Jinan FLD company wil dispactch the engineers to customers'factory install the machine and teach the workers.
2.Sales manager will return email regularly,inquiry customers' machine running and need.
Jinan FLD Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
If you have any questions about the 200-250kg/h fish feed production line floating fish feed pellet making sinking fish feed machine, please don't hesitate to contact with us. We are looking forward to your inquiry and make a long business relationship with you in the future!
