Floating fish feed pellet machine price
1.Floating fish feed pellet machine Application:
This Floating fish feed pellet machine for pet feed making machine is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat etc. The puffing feed extruder for pet feeds can float on the water surface for over 12 hours without water polution.
Raw materials of Floating fish feed pellet machine:
1.Rice Dust: contain about 10-14% of protein and also contain vitamin B1, B2, B6 and small quantity of enzyme.
2.Mustard Cake: Mix maximum 40% of cake in the fish feed. But don't use dry cake more than 20%. Mustard cake contain 30-32% protein. It also contain a high rate of fat.
3.Wheat Chaff: contain fiber, control many types of fish diseases.
4.Maize: contain protein, carbohydrate, fat, vitamin A and E.
5.Cotton Seeds: contain about 54% protein. It is a better ingredients for supplementary fish feed.
6.Fish Powder: easily digestible to fish. Fishmeal contain about 55-60% protein.
7.Bone Powder: very necessary for building fish-bone.
8.Innards : very suitable and ideal feed for catfish. It contain 52% protein.
2.Floating fish feed pellet machine Model:
| Model | Power | Capacity | Feeding power | Cutting power |
| FLD40 | 5.5kw | 30-40KG/H | 0.4KW | 0.4KW |
| FLD50 | 11KW | 60-80KG/H | 0.4KW | 0.4KW |
| FLD60 | 15KW | 120-150KG/H | 0.4KW | 0.4KW |
| FLD70 | 18.5KW | 180-250KG/H | 0.4KW | 0.4KW |
| FLD80 | 22KW | 300-350KG/H | 0.4KW | 0.6KW |
| FLD90 | 37KW | 400-500KG/H | 1.1KW | 1.5KW |
| FLD120 | 55KW | 500-600KG/H | 1.1KW | 1.5KW |

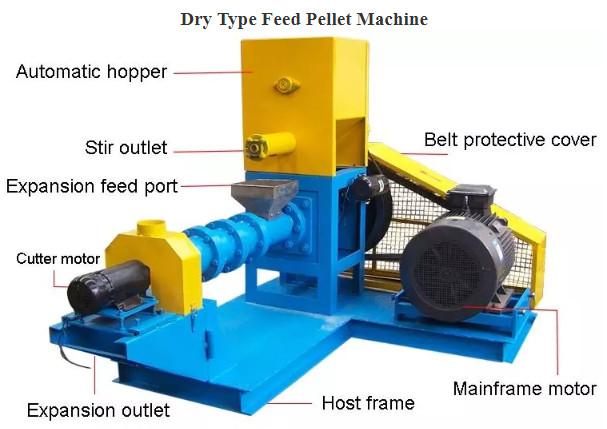

3.Working Principle of Floating fish feed pellet machine:
1. In the extrusion operation, the material from the machine chamber opening end of the input, to the whole machine by a screw conveyor chamber, then fill the pressing member is divided into several zones, each zone arranged between an annular member (pressure ring) As a control flow and pressure. Conveying action of the screw can push the material due to friction and internal friction of the material and the extruder between the various components and materials into heat flow annulus mechanical screw rotation motion through the chamber pressure between the inside of the ring and the machine arising.
2. Under most circumstances, rich in starch and protein while these materials are cooked into a sticky or gummy dough doughy. In the material into such a state in the process, the occurrence of a large number of material physical and chemical changes, mainly as a result of the material in the starch and protein changes.
3. When the material is extruded through the dryer chamber at the end of the orifice, so that the dough-like material is processed into a certain shape. Since the machine screw cavity huge role in pushing forward, leaving the enormous pressure formed in the material, when an instant these materials extruded from the die orifice to vaporize when a lot of water out of the material, thus greatly reducing the material in moisture content.
4. In the production of a low density product, dependent on the molecular composition of the material, as well as various conditions during the extrusion operation used, a large amount of material will swell.
5. In the production of high-density products, depending on the setting of the squeeze chamber diarrhea pressure port, as well as a variety of conditions during the extrusion operation used (including increasing moisture and reduce the extrusion temperature, etc.), the material does not occur a lot of swelling.

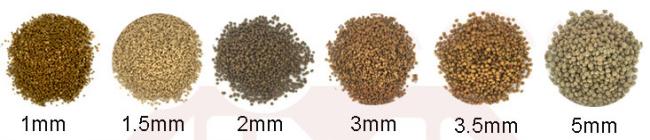

5.Final Pellet
Round Shape and other shapes
Diameter:0.9-15mm by replace the moulds
1. 1 year guaranteed time with 24 hours service.
2. Free training, Guidance Installation and Debugging. If needed, engineers can be sent to your factory for installation and commissioning, training.
3. English manual and video for installation & operation.
4. Any problem in operation or others about the machine, you can contact with me and we will give solution in 24-48 hours.
If you are interested in our Floating fish feed pellet machine,Please leave message to us!
