Automatic Pet Food Making Machine for Dogs Cats Birds and Fish Feed Processing Line
1.Description of Automatic pet snack pet dog food production line dog food production machine pet food equipment:
Pet food machine takes corn flour, wheat flour, soya meal, bone powder etc.
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system.
Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. World famous brand Siemens main motor, guaranteeing good quality
5.Barrel with water-cooled circulation,raw materials not only for corn/rice,also for wheat flour
starch with high viscosity. Different moisture-extrusion temperature ratio,whole expanded
and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
3. Voltage in China of Automatic Pet Food Production Machine : Three phases: 380V 50HZ, Single phase: 220V 50HZ, we can make it according to customers’ Local voltage according to different countries.| Model | SLG65 | SLG70 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
 | Blend Mixer Motor: 3kw, 4kw, 7.5kw etc. Capacity: 60kg/time, 100kg/time, 300kg/time, 500kg/time etc. Material: stainless steel, carbon steel Jinan FLD's Blend Mixer is a high standard two-way ribbon mixing machine. It includes material tank, screw mixing paddles and drive parts. |
 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |

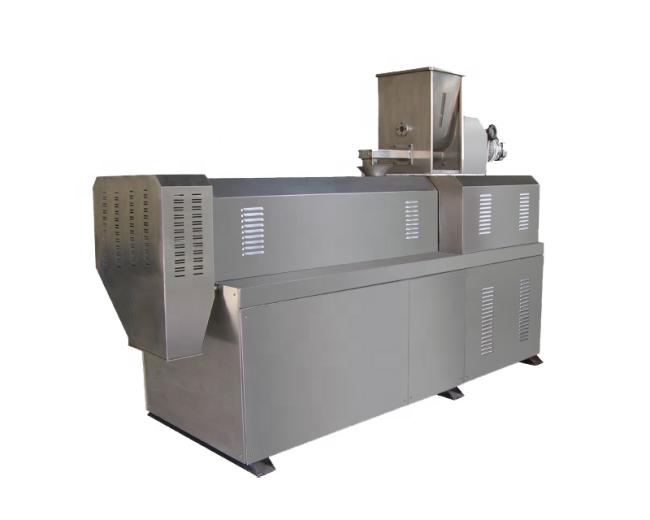

 | Twin screw extruder Motor: 22kw, 30kw, 55kw, 75kw etc. Capacity: 120-150kg/h, 200-250kg/h, 300kg/h, 500kg/h, 1000kg/h etc. Material: Screw materials 38CrMoAl stainless steel, carbon steel Fish feed extrudr unit consist of bucket elevator, Storage Silo, material conveyor, conditioner, feeder, extruder, electric controller and operation platform. The extruder includes drive system, extrusion system, cutting system, heating system, lubricating system and extraction steam system. |
 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |

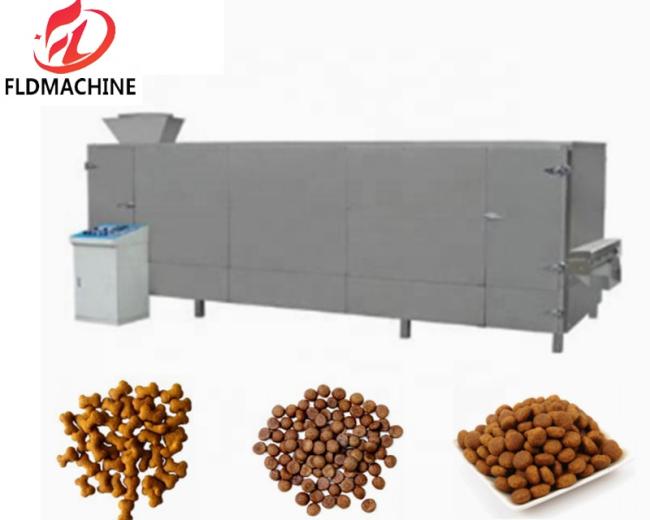

 | Dryer Type: 5 layers 5 meters, 5 layers 7 meters, 5 layers 12meters, 7 layers 12 meters. Heating source: electric, gas, steam, oil, diesel. Material: stainless steel, carbon steel |
 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
Packing: Machines are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery.
We take good care of each machine for you
Delivery: 20-30 working days after receiving advance payment.
Jinan FLD Machinery company is is a high-tech extrusion enterprise which integrates technical research, production and marketing. Committed to researching, developing, producing of extrusion food processing line over the years. We have already developed dozens of food machinery equipments and technologies, and have become an important professional manufacturer at home and abroad.
Our company has owned well-experienced management staff, outstanding engineers as well as well-trained technical workers, We often organize technical exchange with world-renowned enterprises of the same line in the world. We introduced advanced product technology and production processes, And also we have formed powerful technical support system for the company. Since the very beginning, our company adhering to the principle of "Integrity based, coordinated development." business philosophy, we regard product quality as the cornerstone, we think of the technology development as the guide, dedication, professionalism and focus. We adopt sophisticated technology, sincere attitude and wonderful services to supply quality products in the market.
